| Model NO. | LWS9400TDP | Type | Semi-Trailer |
| Load Capacity | 50T | Certification | ECE, GCC, CE, ISO9001, DOT, CCC, Ottc |
| Wheel Base | 7000-8000mm | Tread | 1820mm |
| Axle Number | 3 | Tire Number | 12 |
| Material | Steel | Steel Type | T700 |
| Dimensions | 12500mm * 3000mm * 1100mm | Color | Customizable |

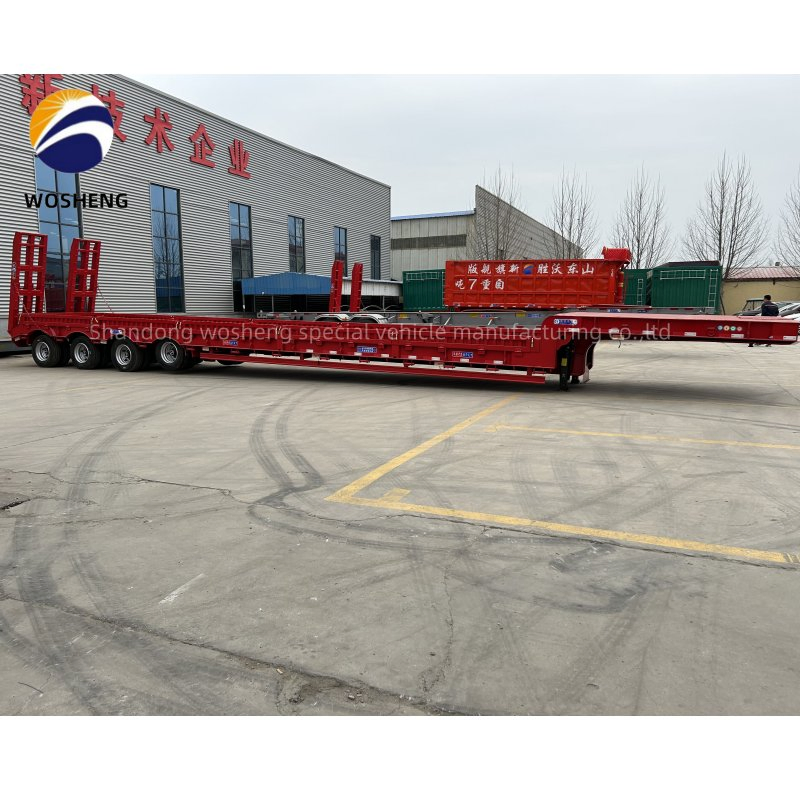

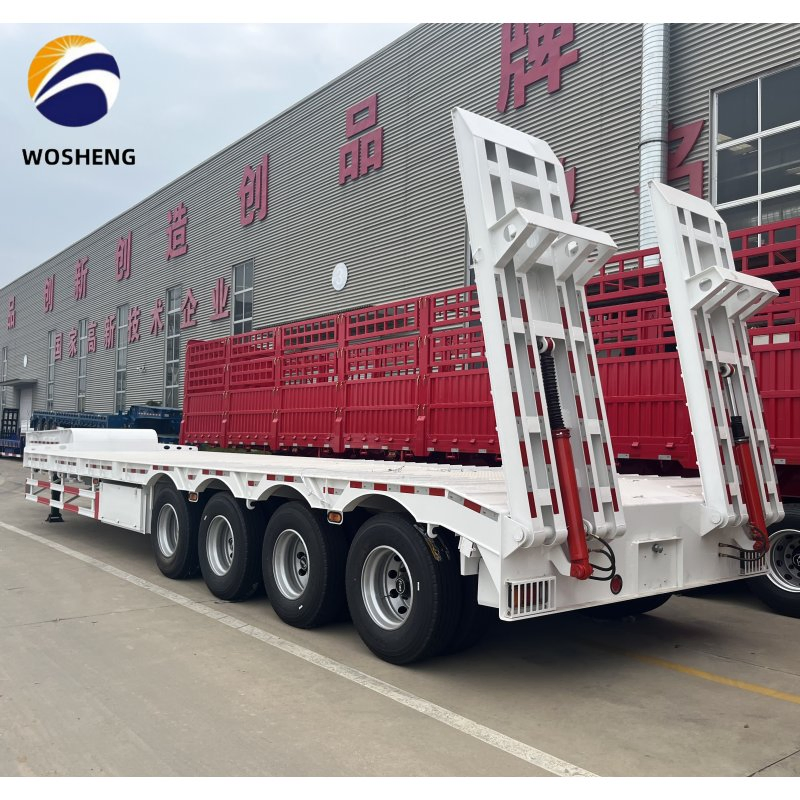

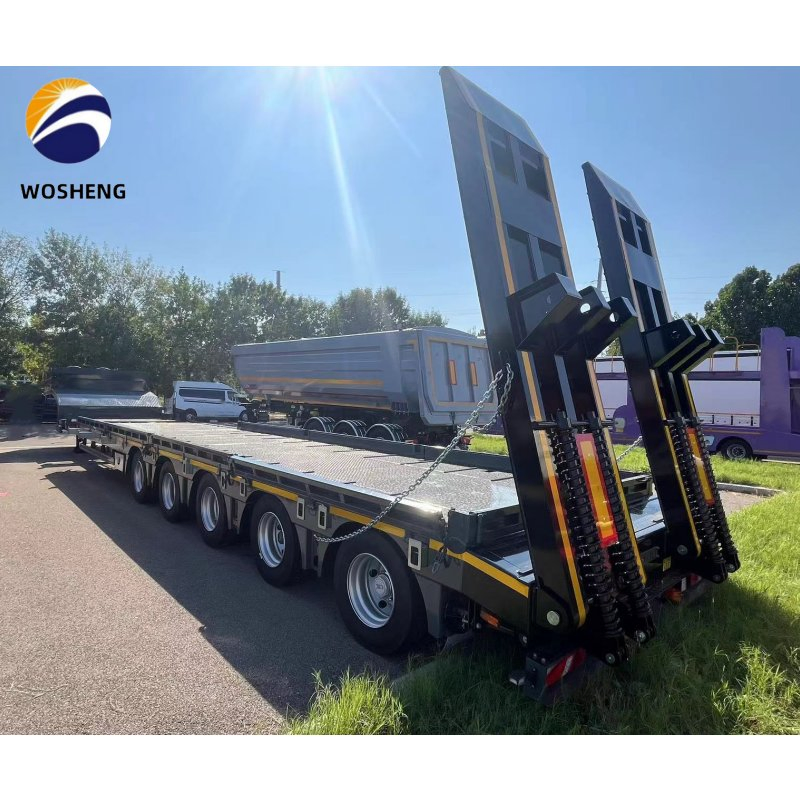

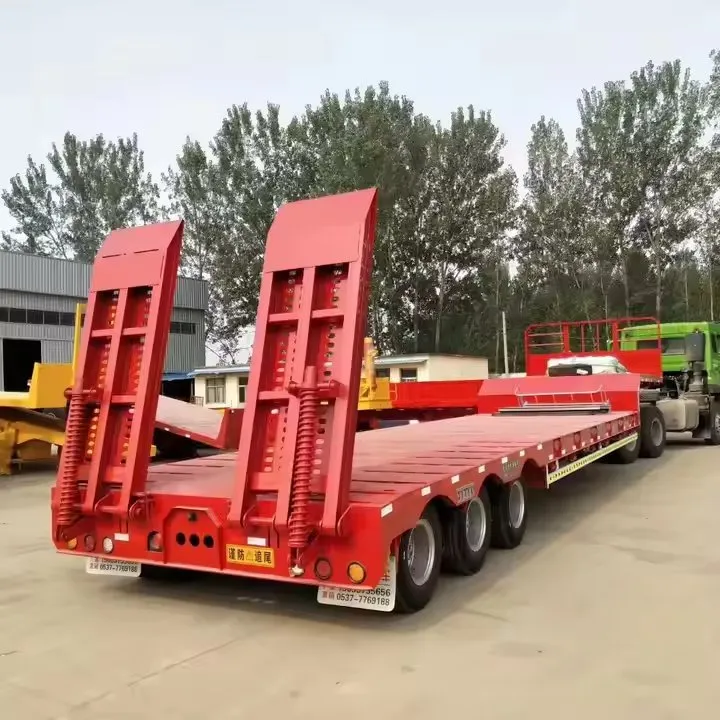

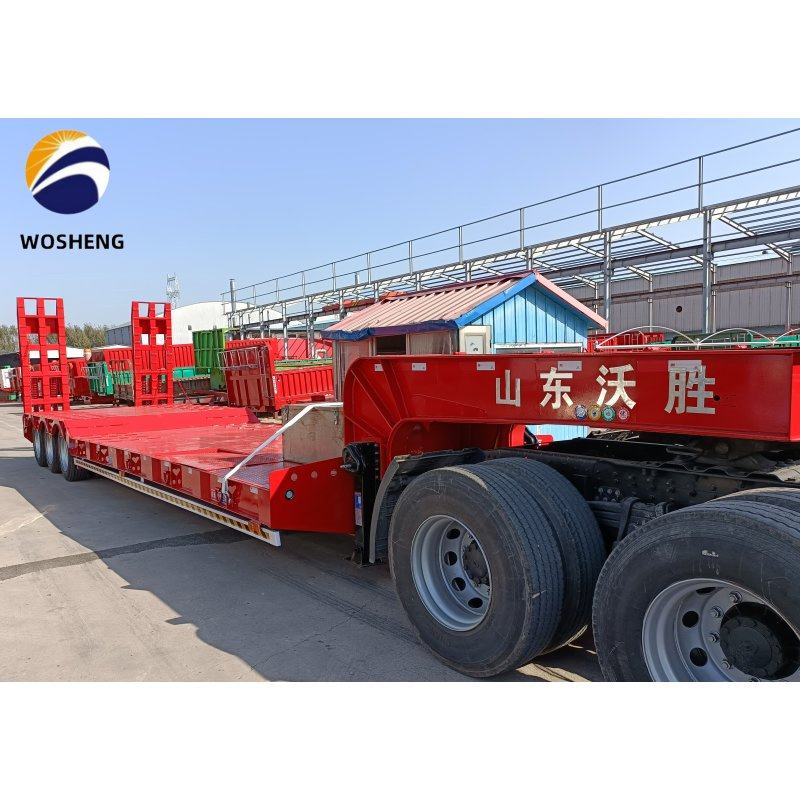

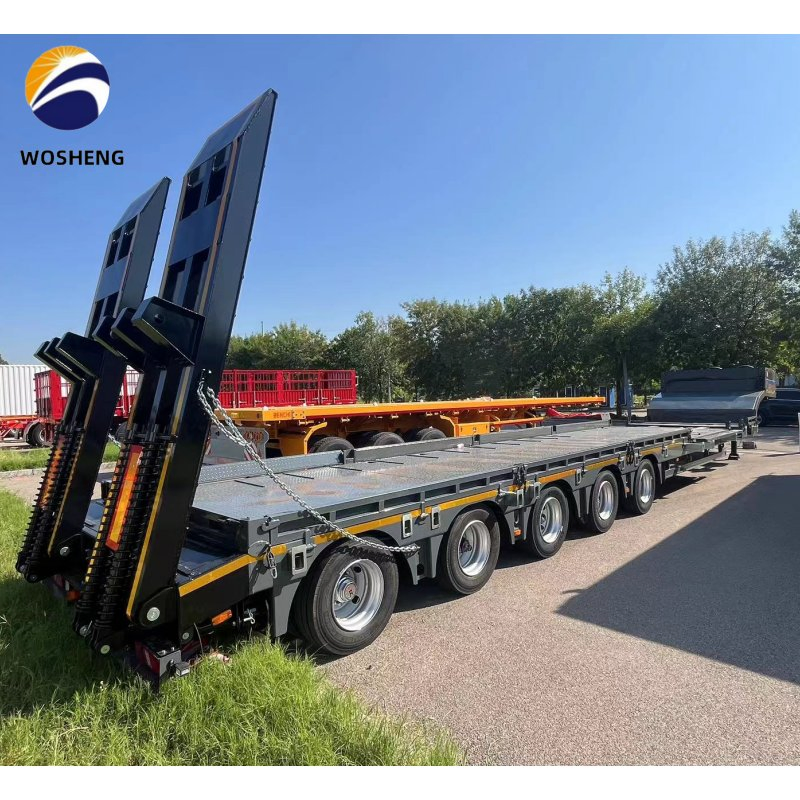

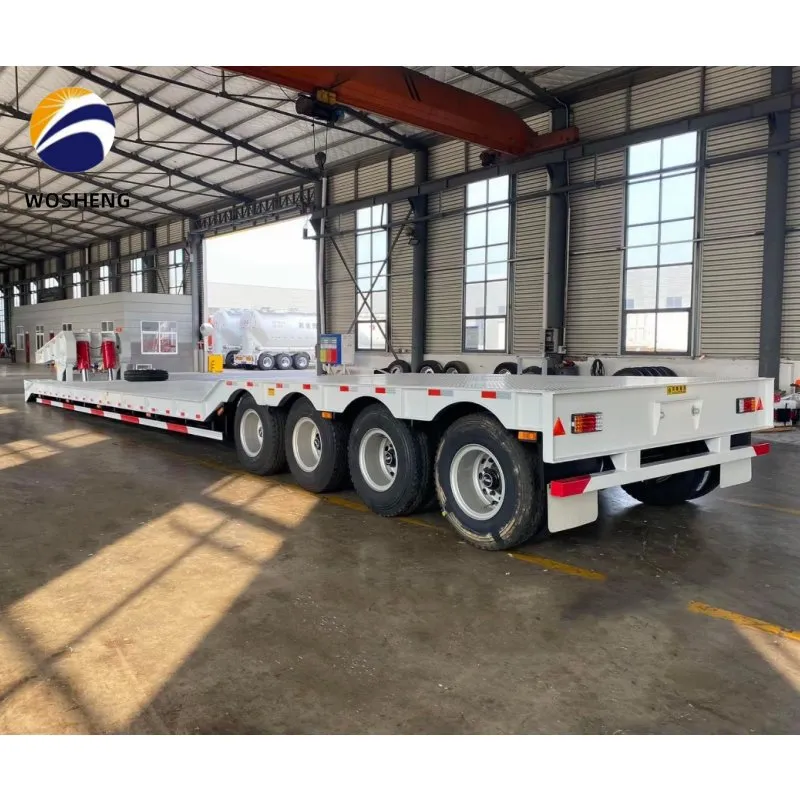

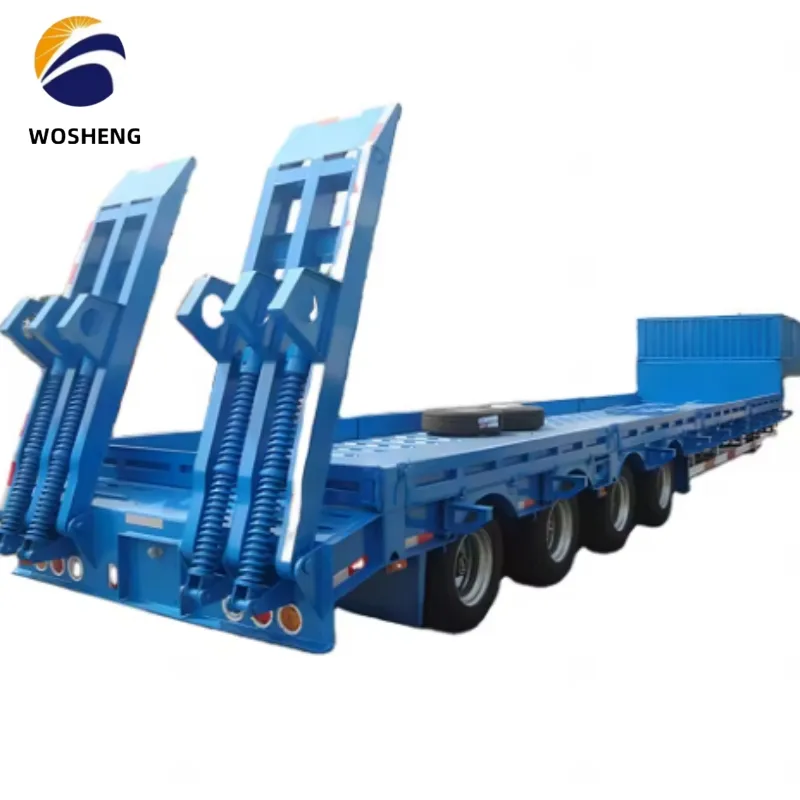

Low bed semi trailer features plate types, concave beam type and exposed tire type structures. The frame is designed with a ladder structure, and the longitudinal beam section is I-shaped, providing high stiffness and high strength characteristics.

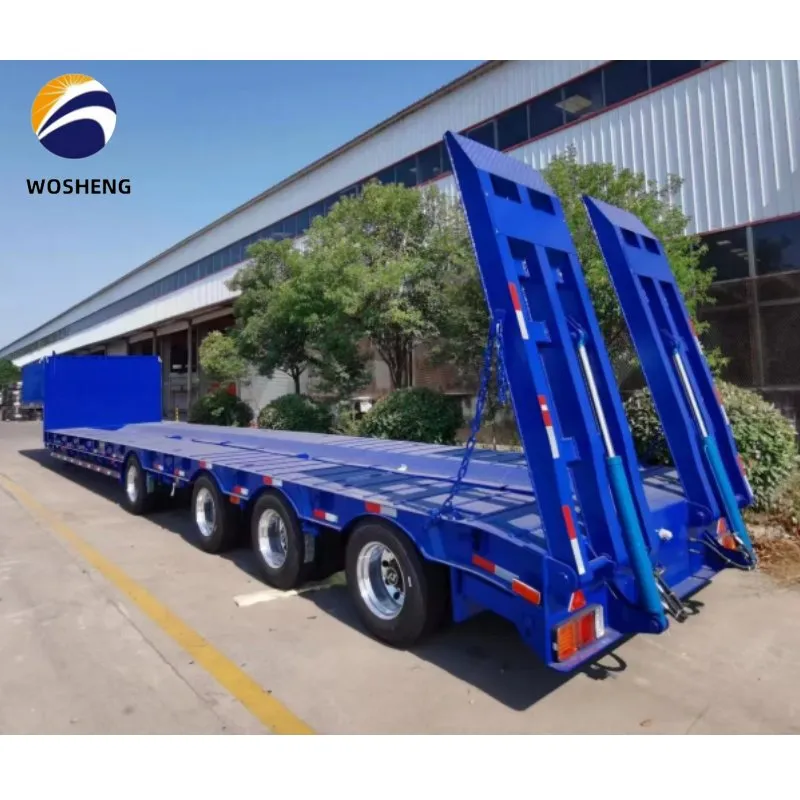

The main plane of the frame and cargo platform is low, which ensures the smoothness of transportation for heavy equipment and large objects.

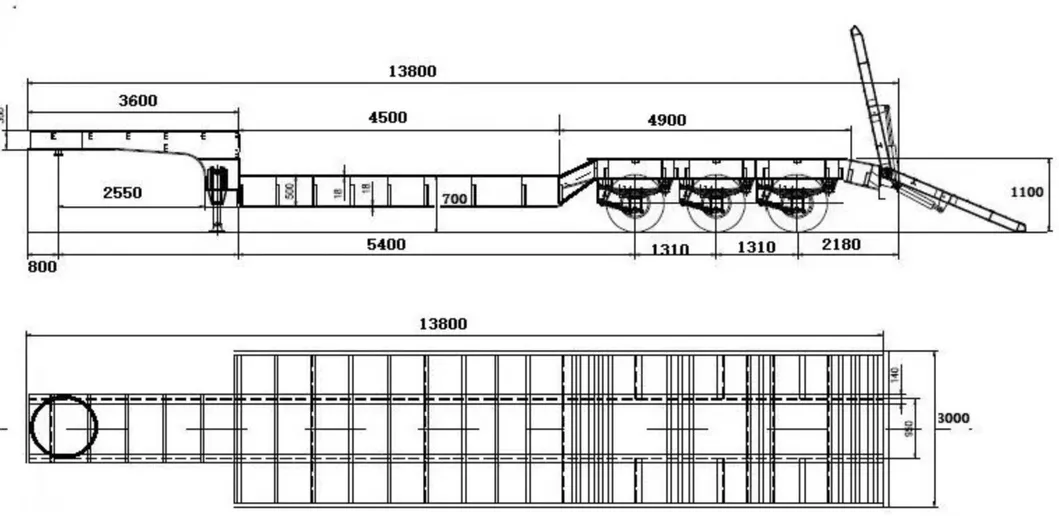

| Feature | 2 Axles | 3 Axles | 4 Axles |
|---|---|---|---|
| Size (mm) | 12500*3000*1100 | 13000*3000*1100 | 14000*3000*1100 |
| Payload | 40,000KG | 60,000KG | 80,000KG |
| Main Beam | Height: 500mm, Q345B Steel, Upper 16mm/Middle 8mm/Down 18mm | ||
| Tire | 12R22.5 / 11.00R20 8pcs (Optional) | ||
| Ladder | Hydraulic or Mechanical spring ladder | ||

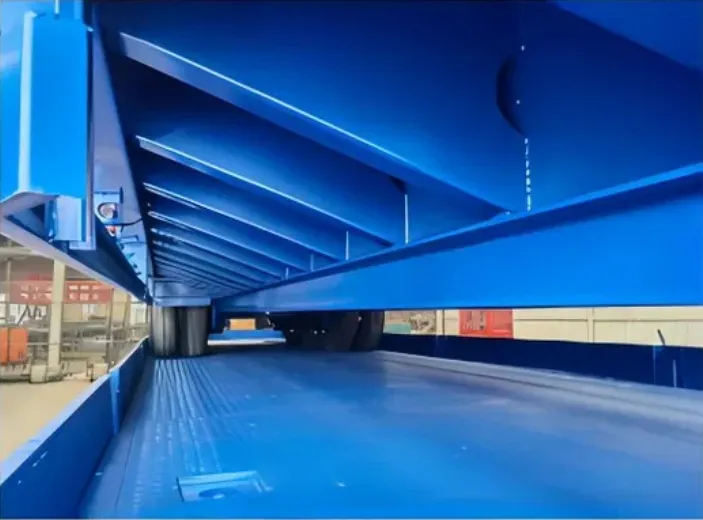

1. Cross-bracing: Thicker steel plates for greater load carrying capacity and transport stability. Size and shape can be customized.

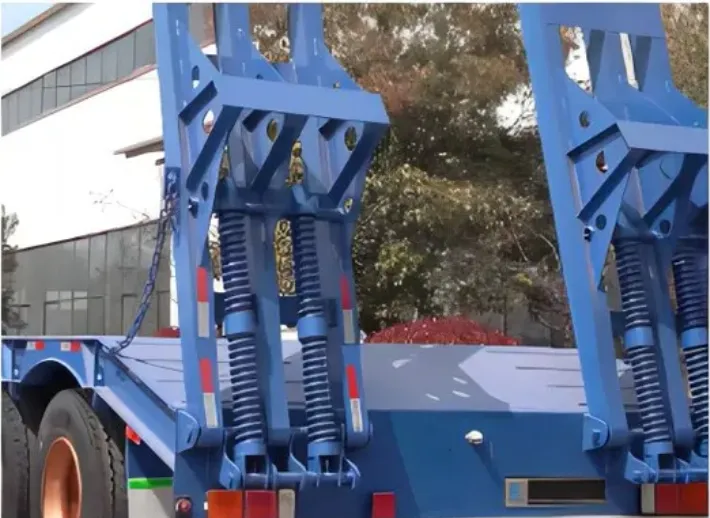

2. Loading Ramp: Automated operation with electric or hydraulic systems, designed to suit different loading requirements.

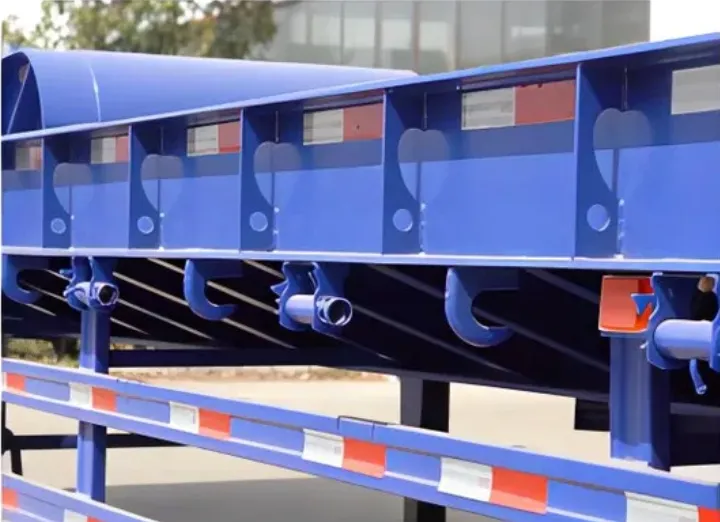

3. Lashing Point: High-strength steel conforming to ISO standards, increasing fixing points to improve safety.

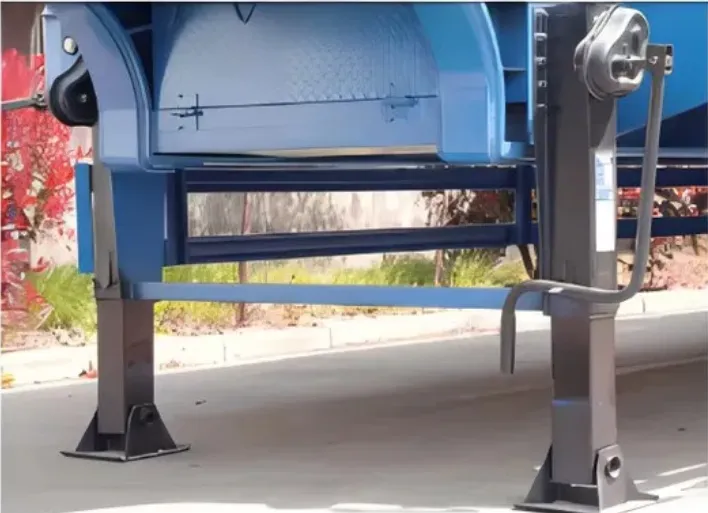

4. Landing Gear: JOST or standard options available, designed for extreme temperatures (-30ºC to 120ºC).

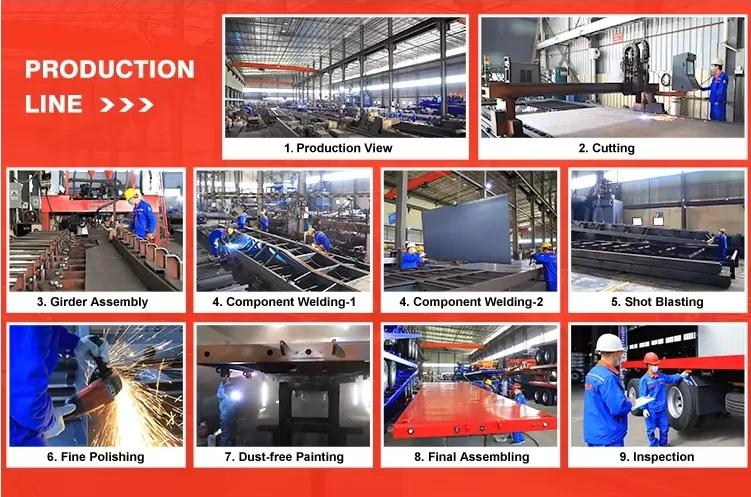

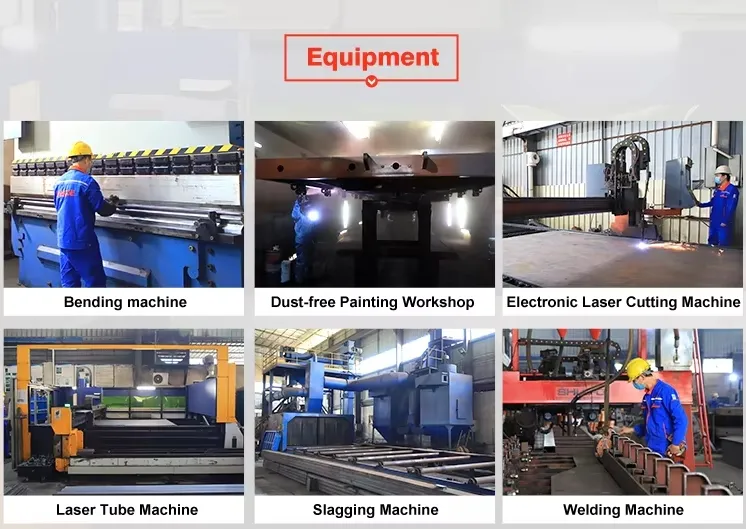

With nearly 8 years of production experience in the trailer industry, our professional technology and manufacturing experience ensure safe and efficient transportation. We have obtained the World Material Manufacturing Factory Certificate, 3C Certificate, and ISO9000 Quality Management Certification.
