| Model NO. | DR9700TDP | Type | Semi-Trailer |
| Load Capacity | 30T | Certification | ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949, Ottc |
| Wheel Base | 8000-9000mm | Axle Number | 3 |
| Suspension | Mechanical/Air Suspension | Brake System | Wabco ABS |
| Main Beam | 500mm | Tire Size | 385/65r22.5 |

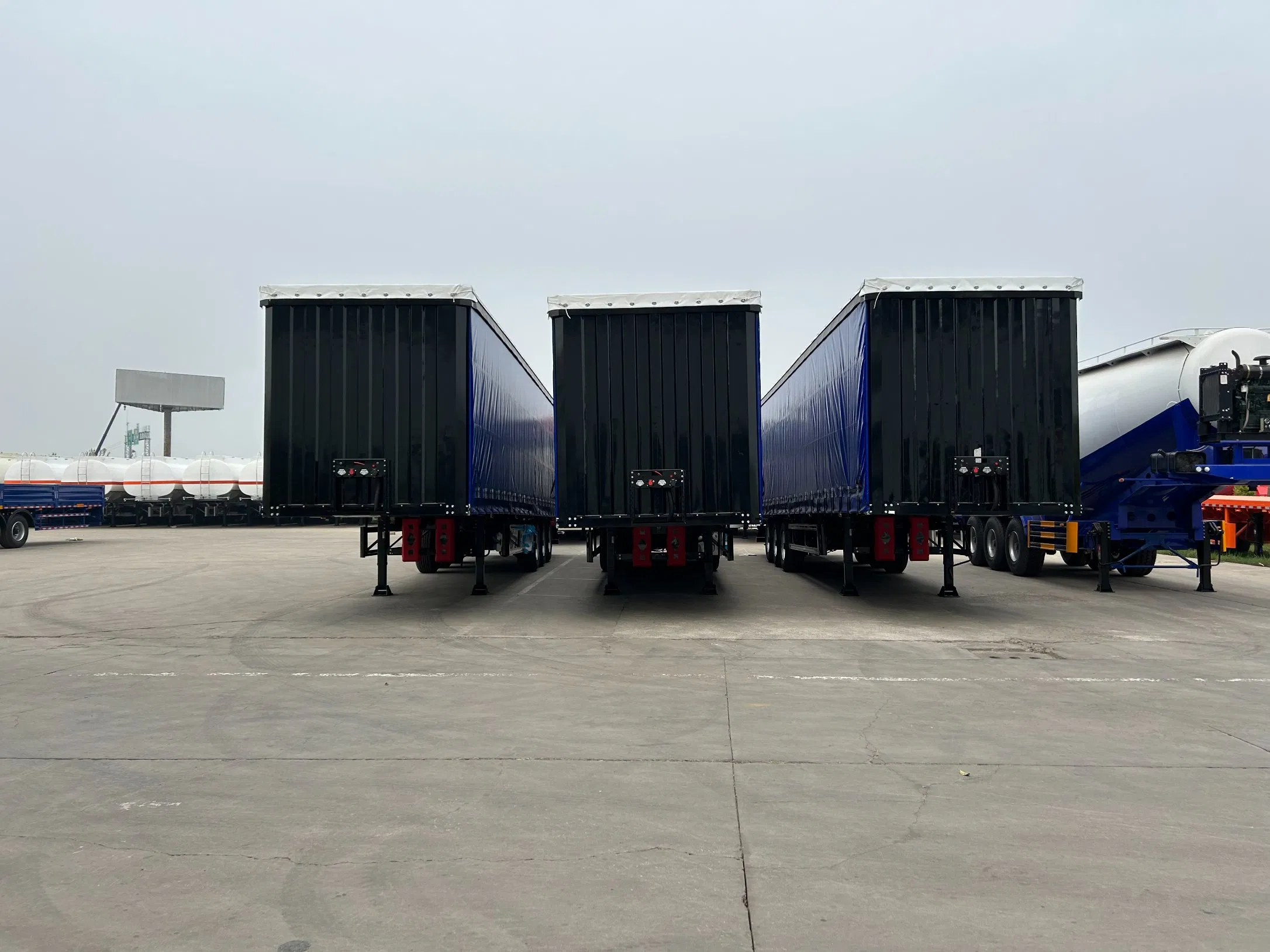

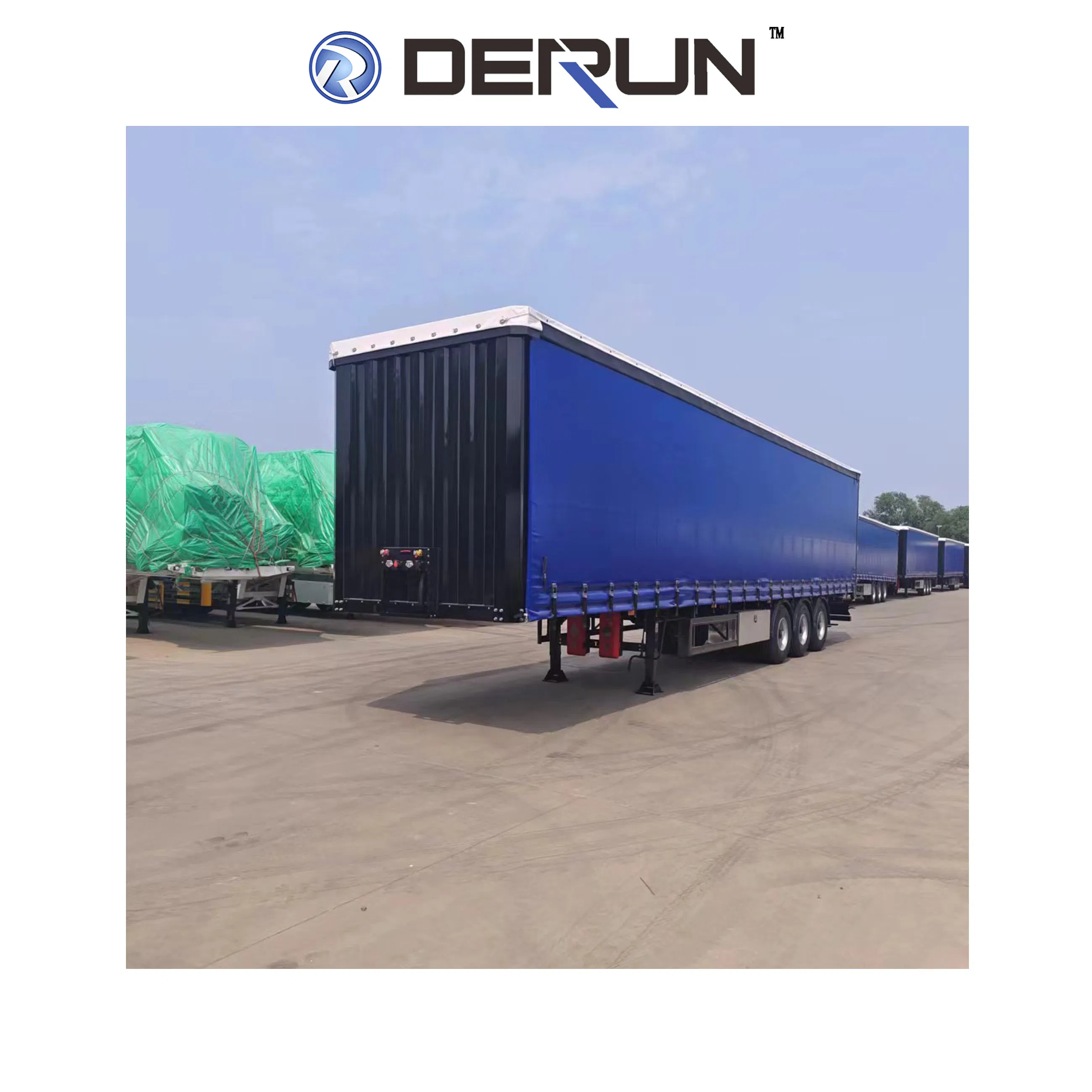

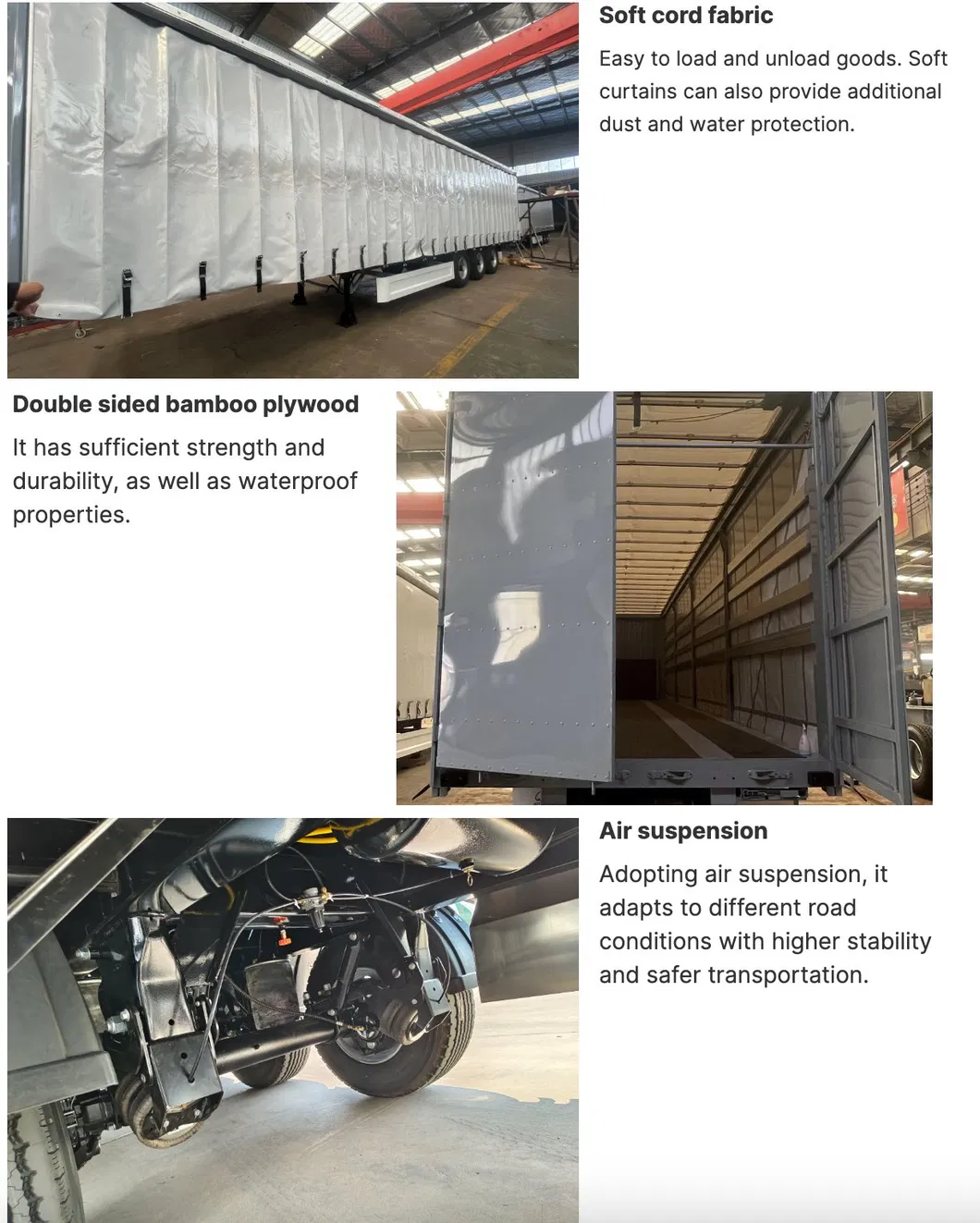

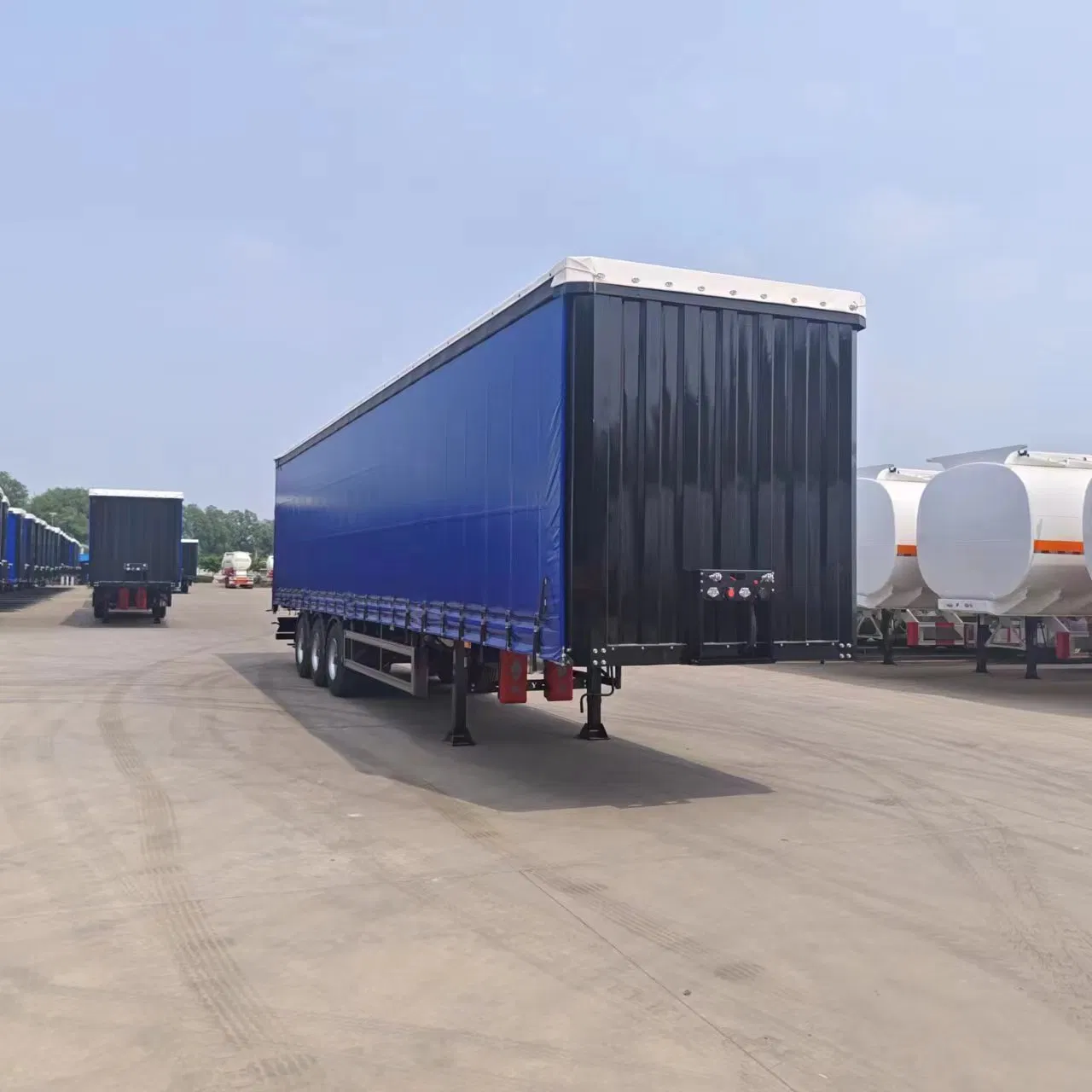

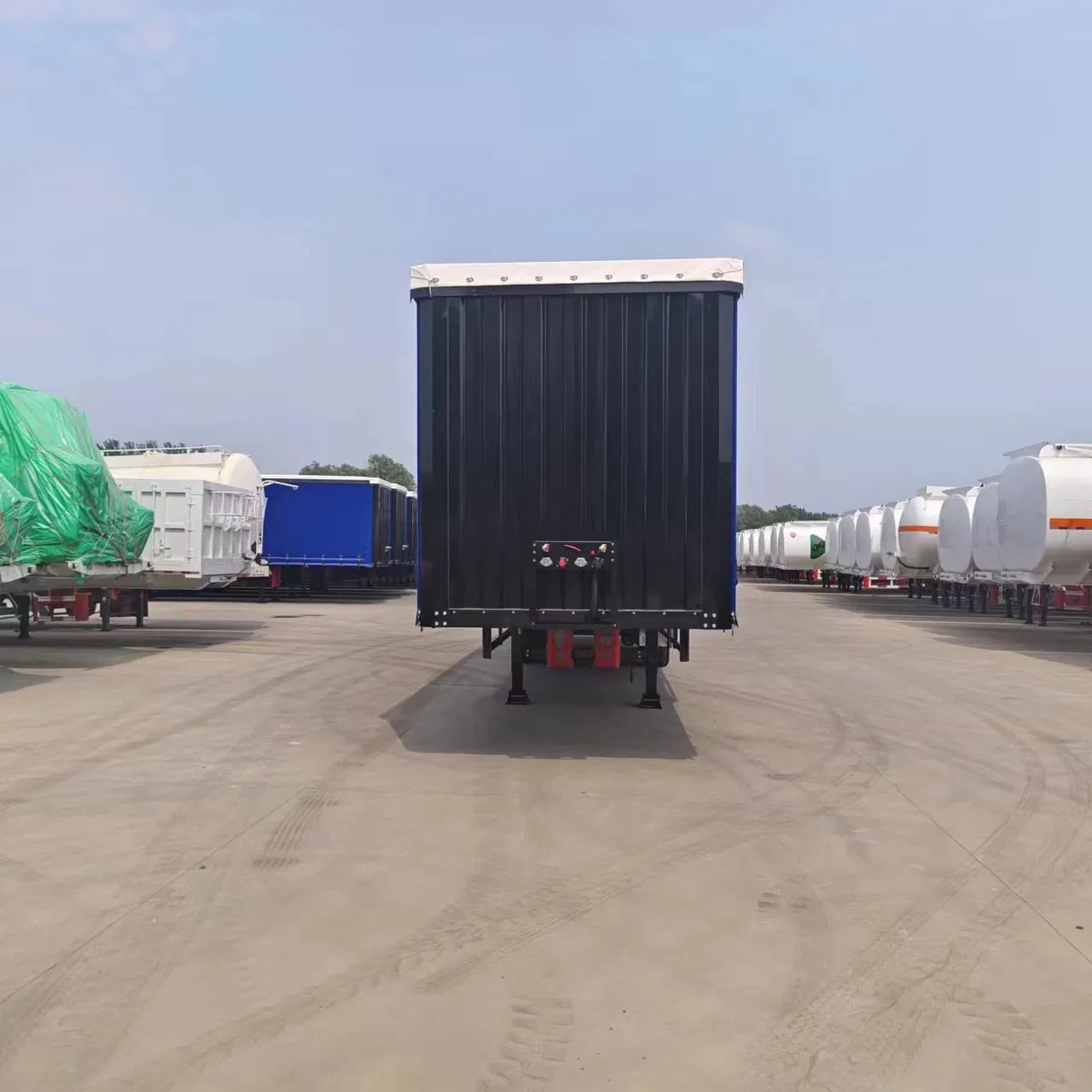

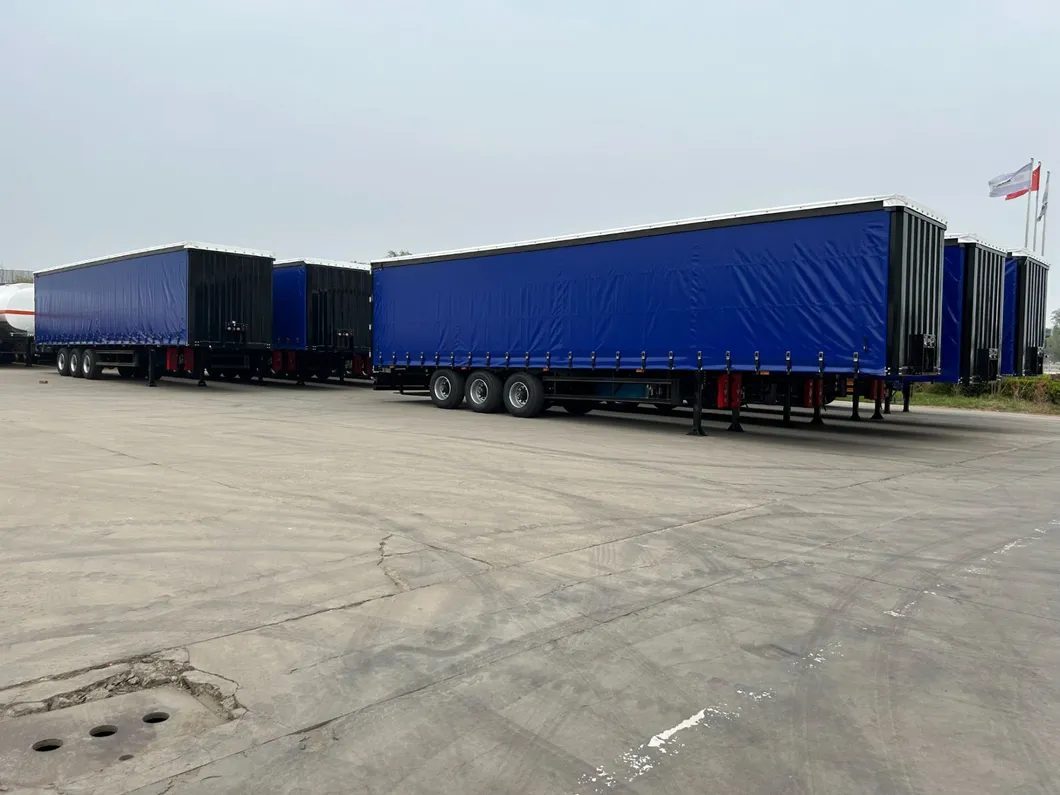

Side Curtain Semi-Trailers are engineered with flexible tarpaulin materials on both sides, featuring advanced guide rails and secure locking structures. This design allows the curtain to be easily adjusted to any position, facilitating efficient loading and unloading from multiple directions.

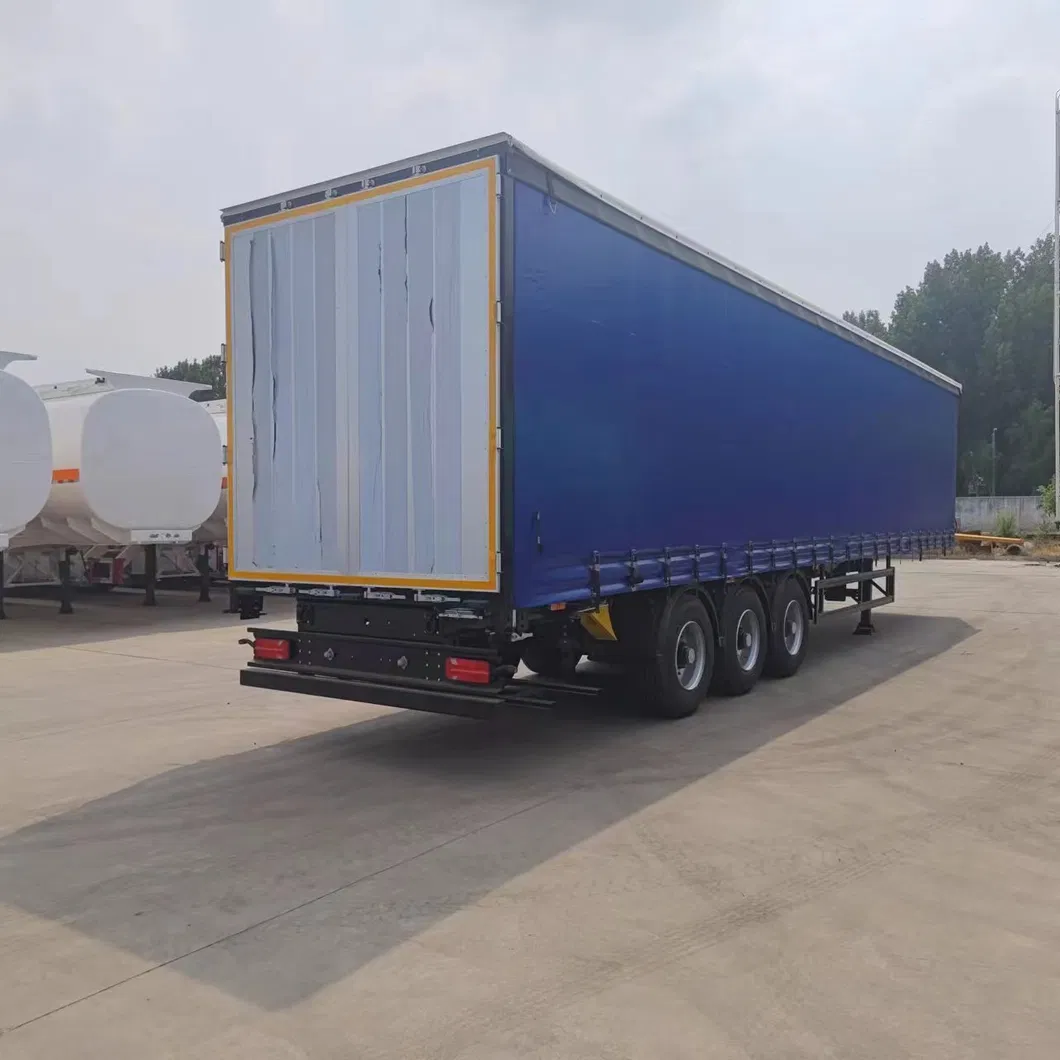

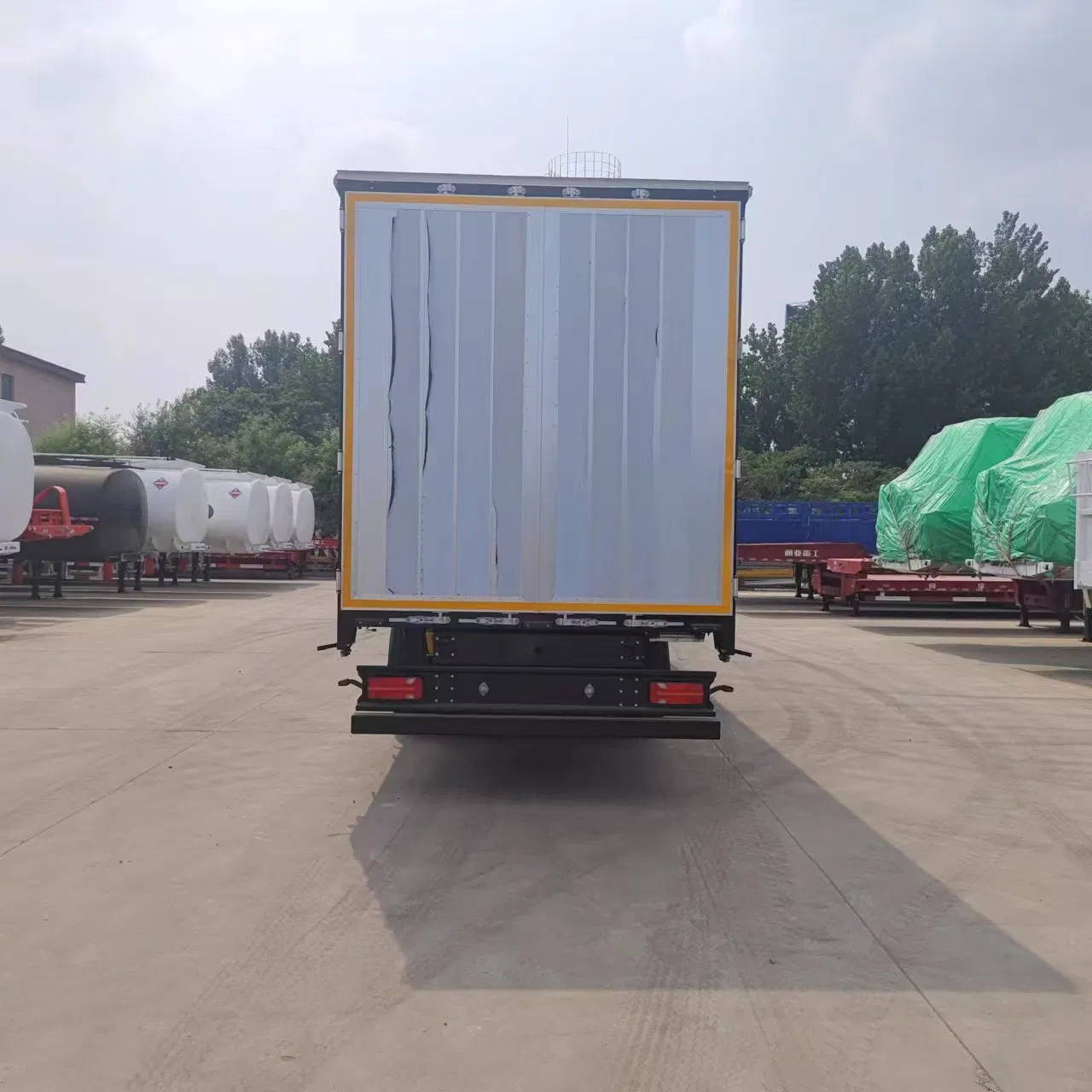

The roof structure utilizes a synchronized push-pull mechanism, allowing the tarpaulin to be fully retracted at one end for overhead crane loading. Equipped with heavy-duty aluminum alloy or high-strength steel rear doors, these trailers integrate seamlessly into standard logistics platforms, significantly increasing operational efficiency while minimizing cargo spillage.
| Outside Dimension | 13000*2550*4000mm | Axles | 13T*3 disc brake, ABS, Air suspension |
| Ceiling Material | Manual translation, cord fabric 650g | Bottom Plate | 28mm Waterproof phenolic flooring |
| Landing Gear | 28T two-speed | King Pin | JOST 50mm/90mm, bolt type |
| Side Curtain | Double side, cord fabric 900g | Electrical System | 24V, LED Lamp, 7-hole socket |
| Tires/Rims | 385/65R22.5 / 11.75R22.5 | Tare Weight | Approx. 8.5 Tons |
