📦 Basic Info.
Model NO.:
skeleton semi trailer
Certification:
ECE, CE, ISO9001, CCC
📑 Product Description

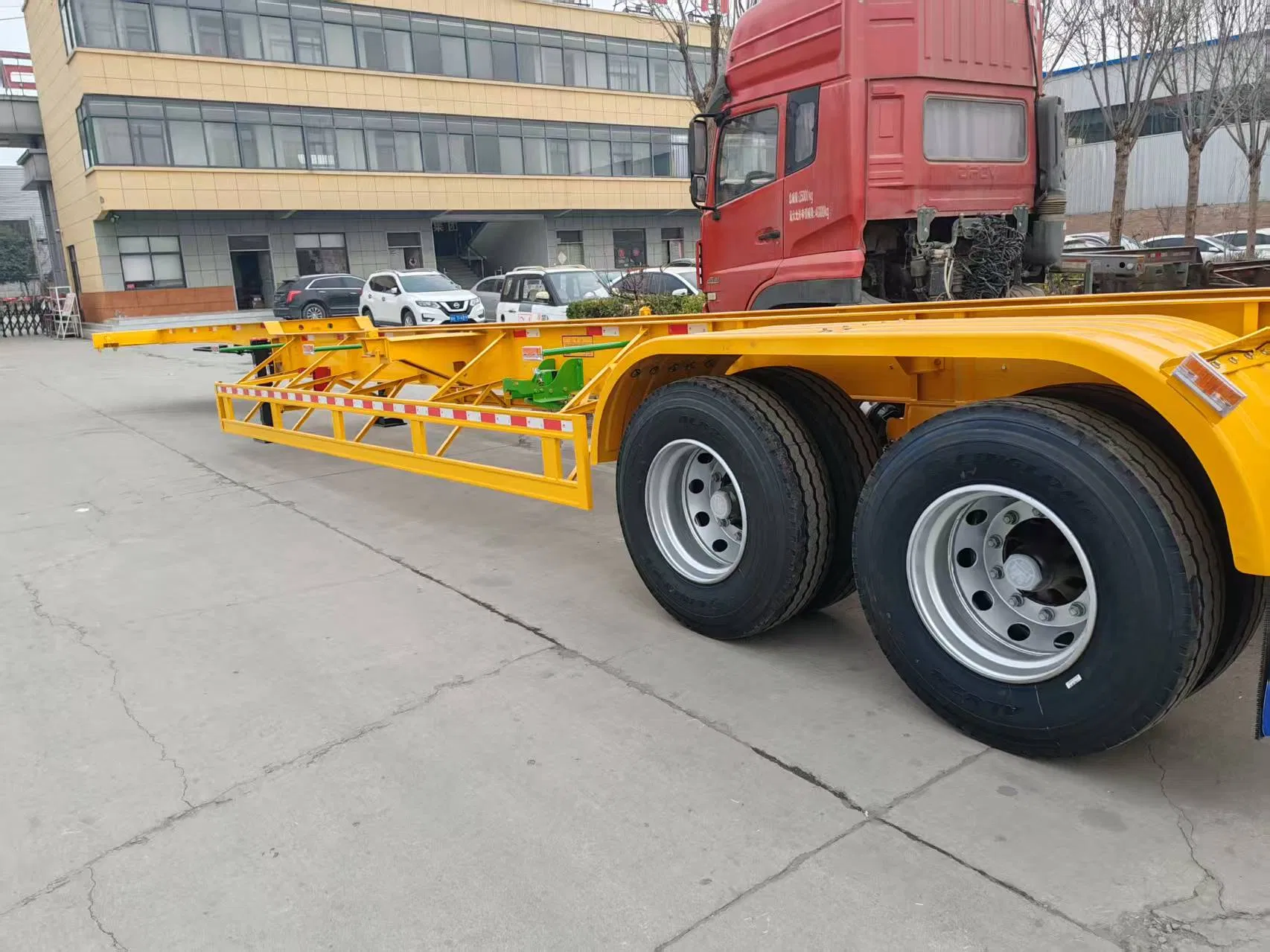

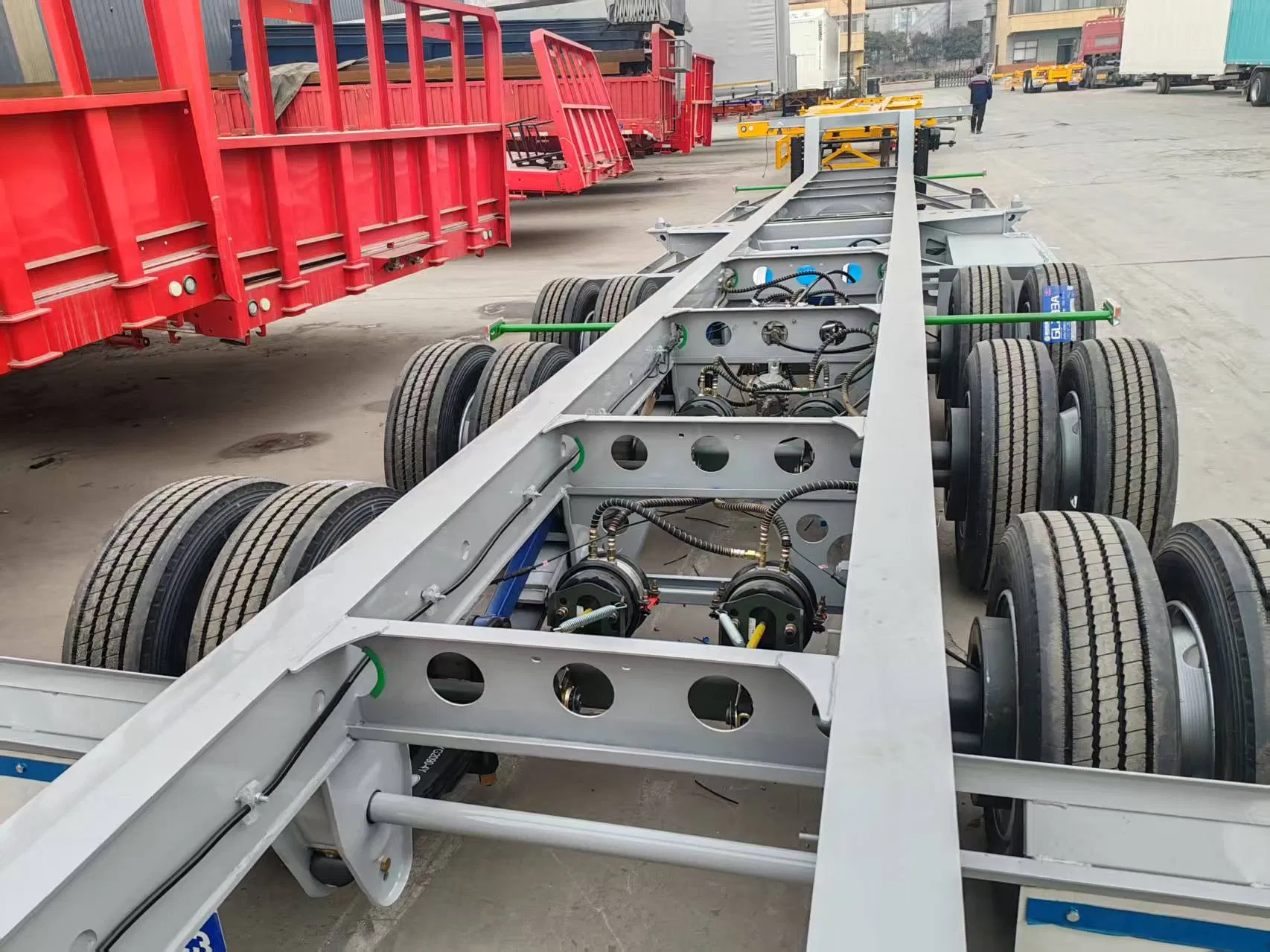

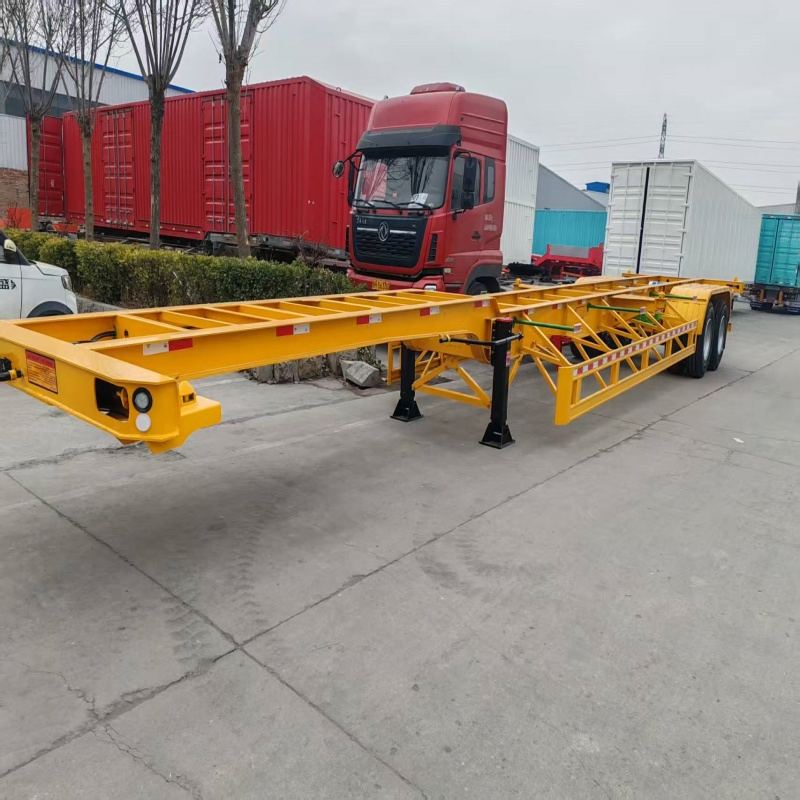

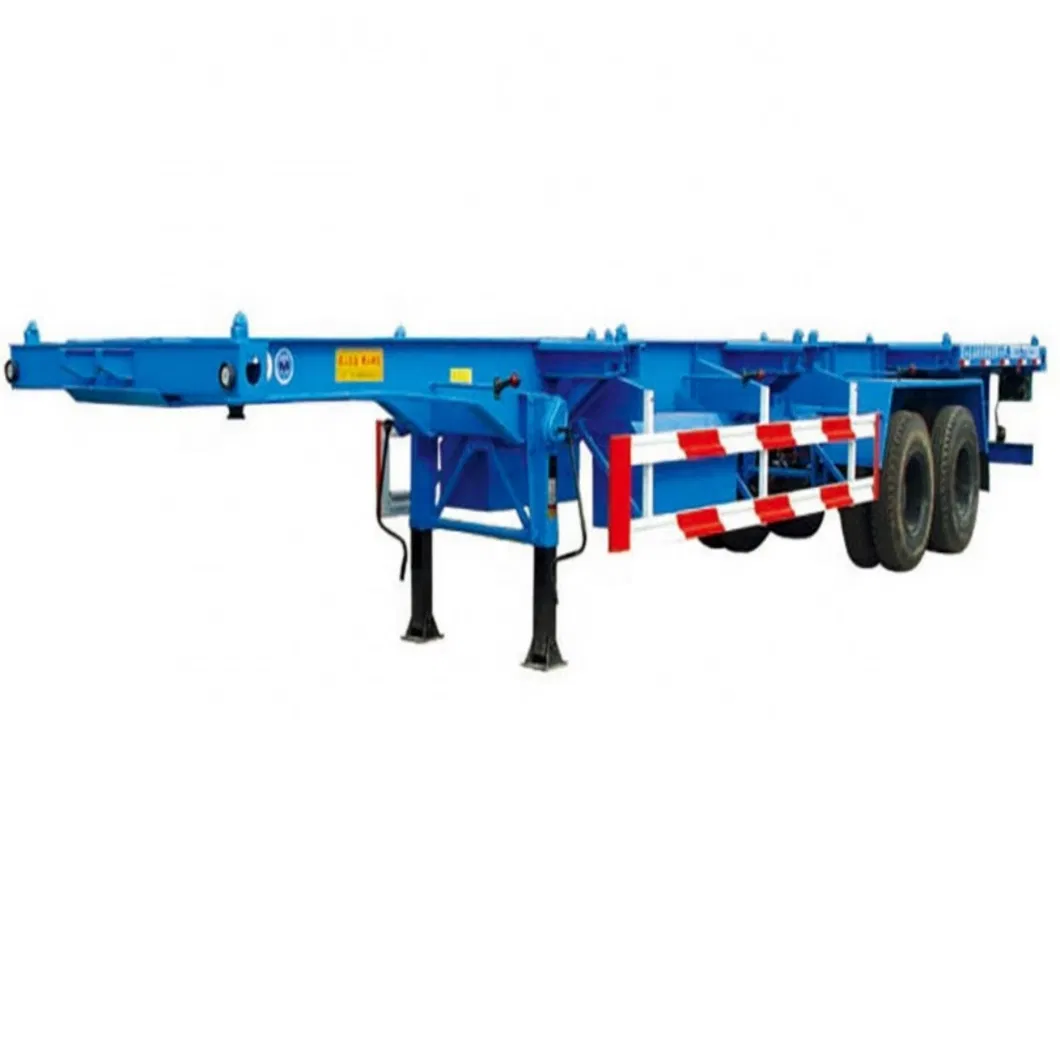

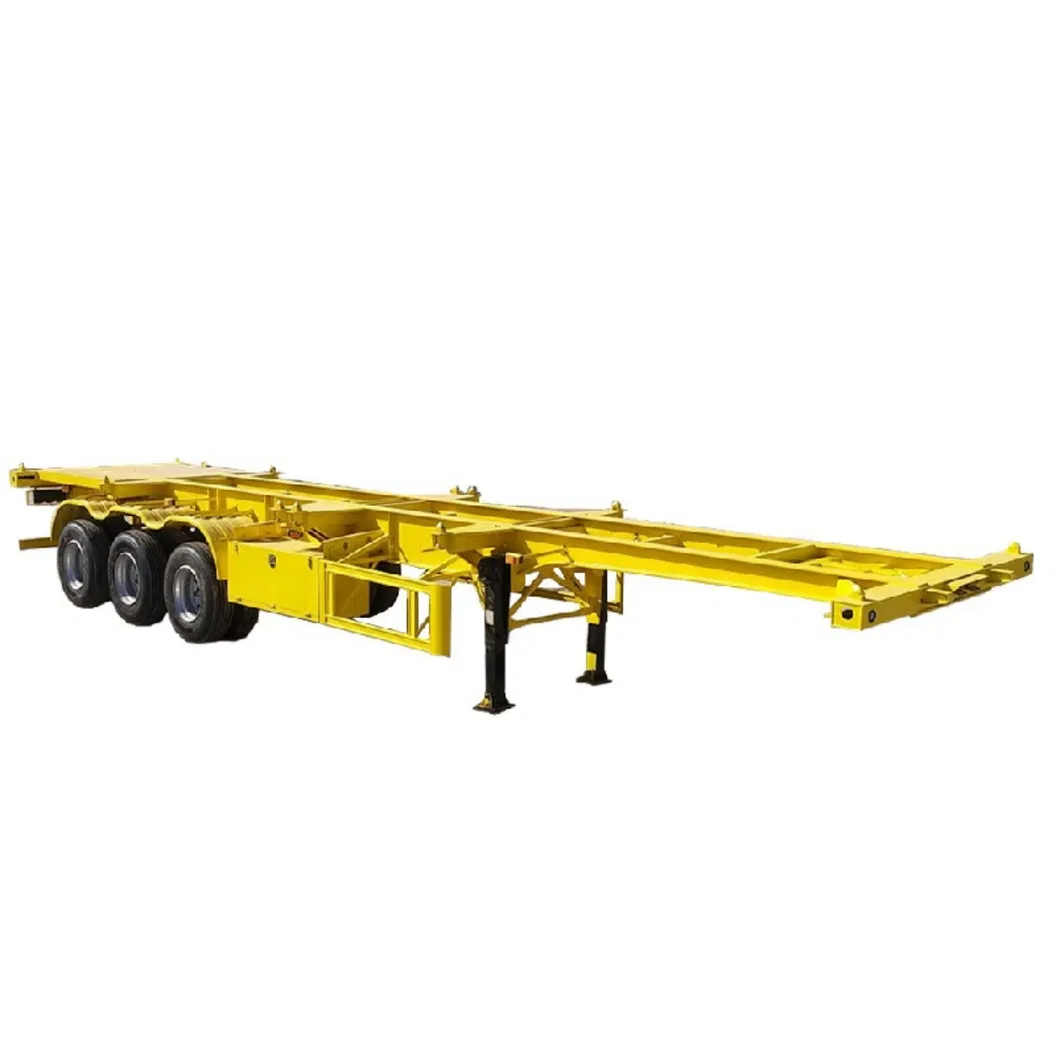

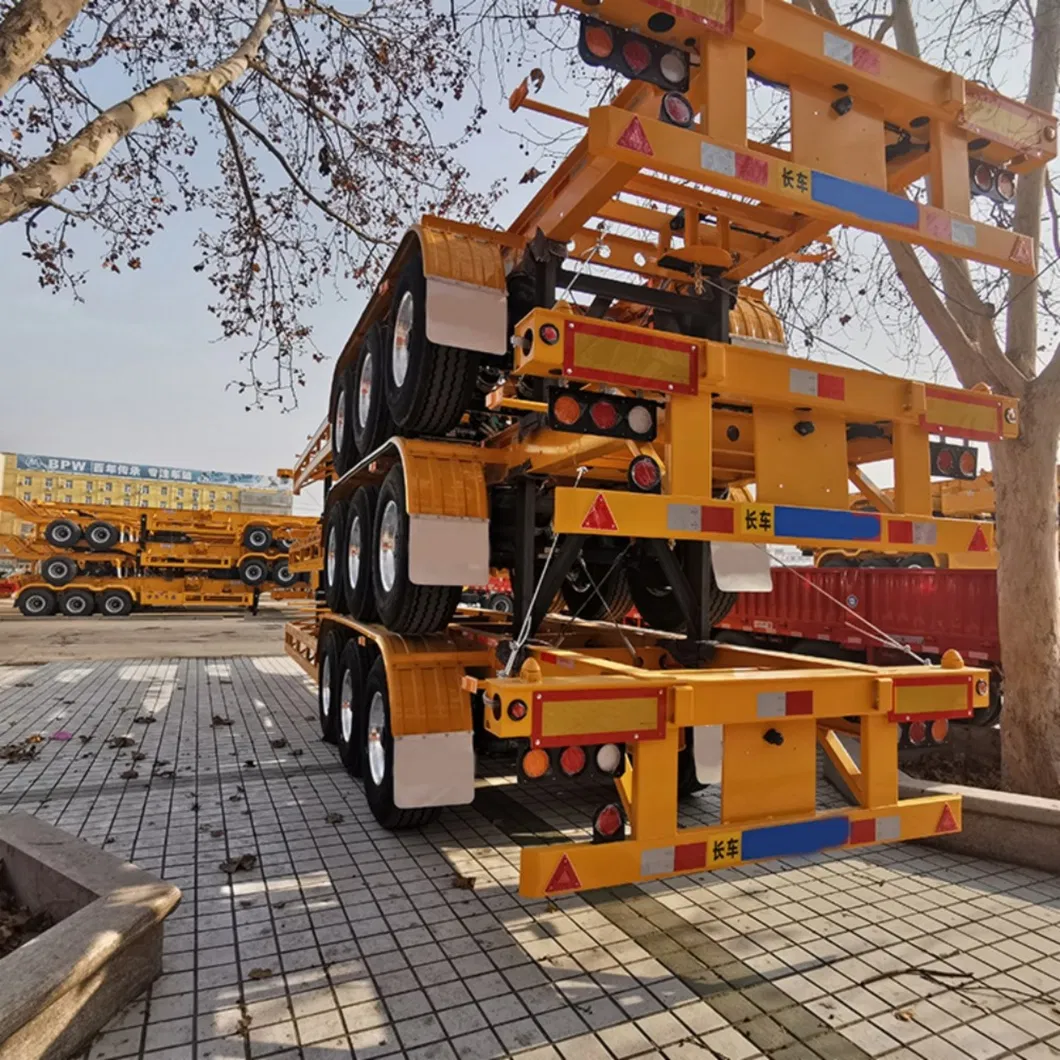

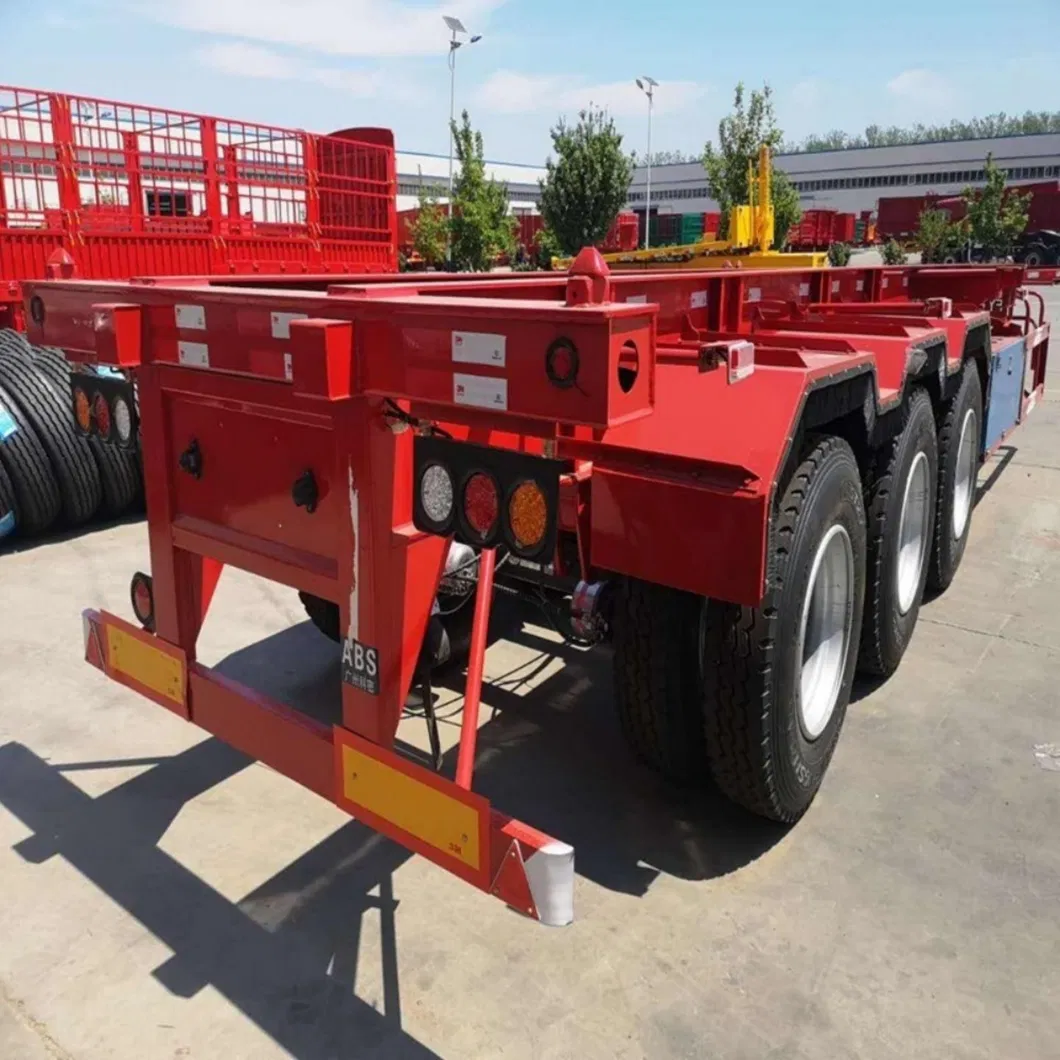

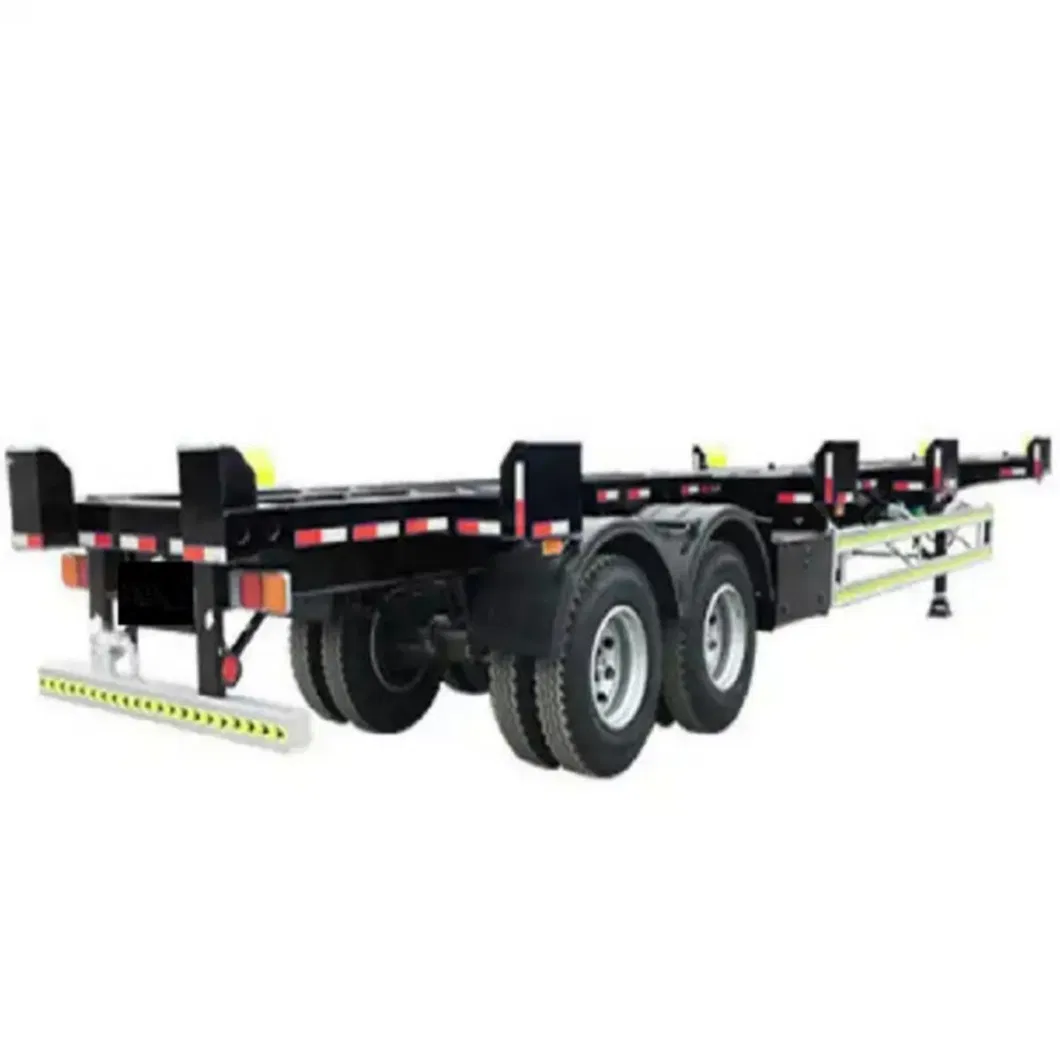

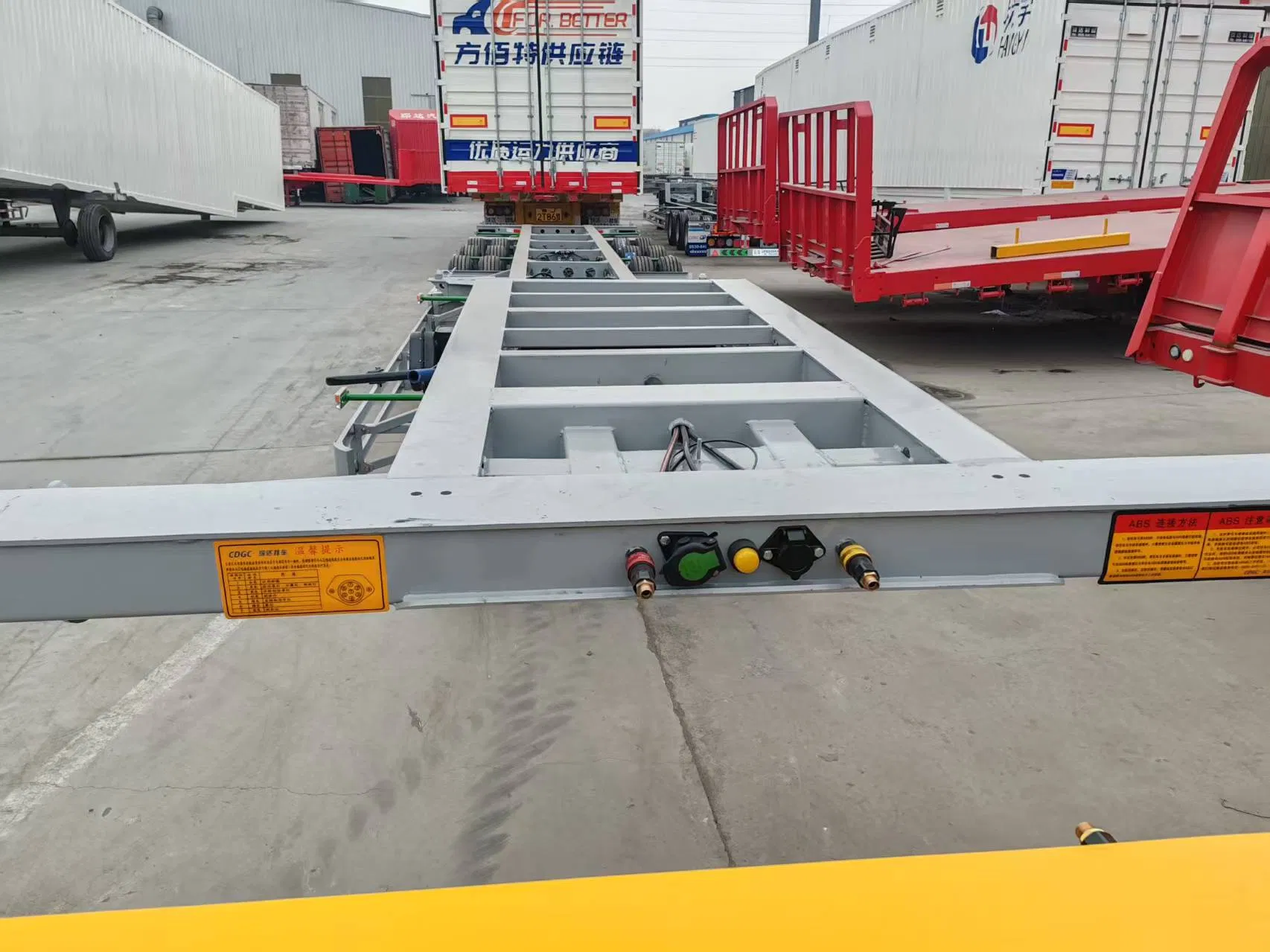

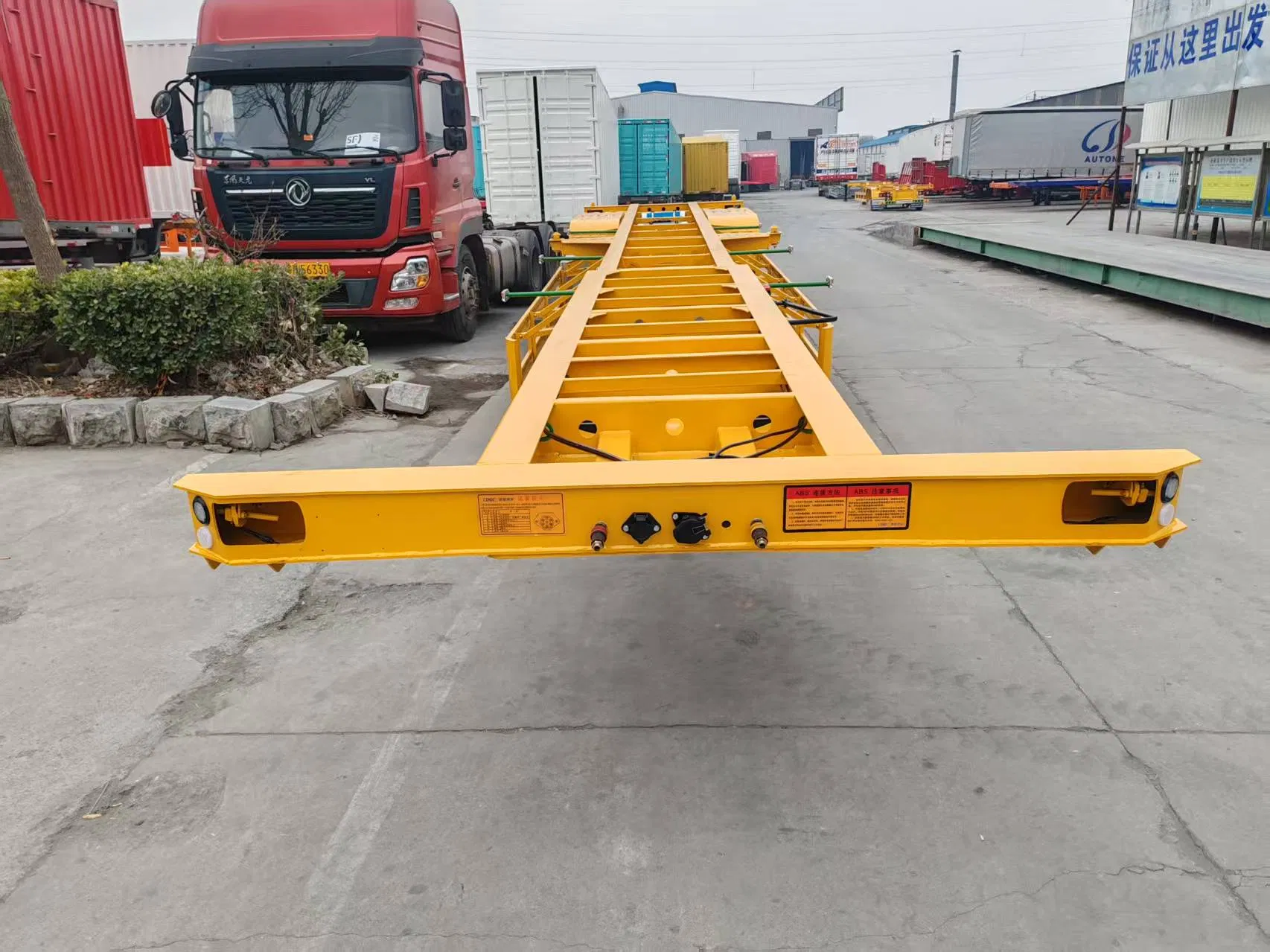

3 Axle 20FT 40FT Container Skeleton Semi Trailer
Skeleton semi-trailers are usually used to transport container. it can be directly loaded in the consignor's warehouse and transported to the consignee's warehouse for unloading. When changing vehicles and ships midway, there is no need to remove the cargo from the container and reload. It can be quickly loaded and unloaded, and can be directly and conveniently converted from one mode of transportation to another.
| Product Name | Skeleton Semi Trailer |

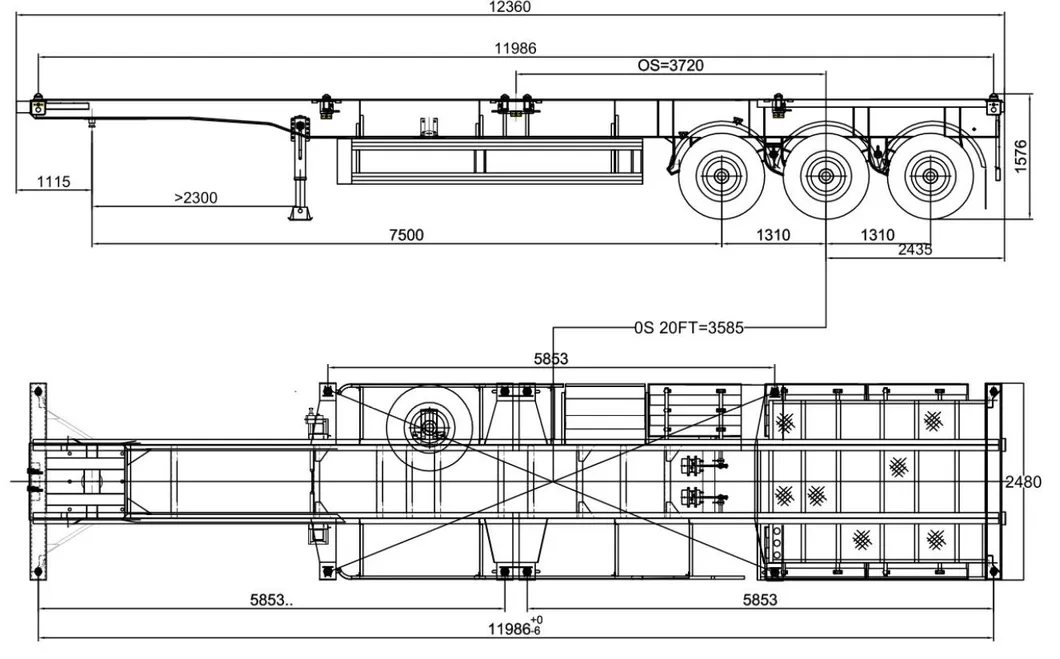

| Dimension(Lx W x H) | Outside 12380×2480×1550mm (customizable) |
| Tare weight (kg) | 6500 (depends on final configuration) |
| Max Loading Capacity | 50000 (customizable) |
| Main Beam | Q345B / T700 Steel Height 500mm, Upper 14mm, Down 16mm, Middle 8mm |
| Axles | 13/16/20 Ton (SAF/FUWA/BPW optional) |
| Brake System | Dual line brake system, Air chamber T30/30 |
| Electrical system | 24v waterproof, 7 ways harness, LED lights |
⭐ Recommended Products
🏢 Profile & Production
🚢 Packaging & Shipping
❓ FAQ
Is your company a factory or a trading company?
We have our own factory and have been engaged in this business in China for several years. Our factory is very famous in Shandong, China.
How do you control the product quality?
We inspect products at all stages: raw materials, process materials, and finished products. 100% inspection in the assembly line ensures all items meet the required quality level.
What is your minimum order quantity?
Our minimum order quantity is one unit trailer or truck.
How do you transport a semi-trailer?
We use bulk or container transport vehicles. We work with long-term shipping agencies to provide the lowest shipping costs.
Can you customize the trailer according to my requirements?
Yes, our senior engineers can design the semi-trailer as per your specific request, and we accept OEM/ODM projects.
What surface treatment is applied to the vehicles?
We perform sandblasting before painting, followed by one coat of anti-corrosion primer and two coats of finish painting. Wax treatment is also applied for sea transport protection.
