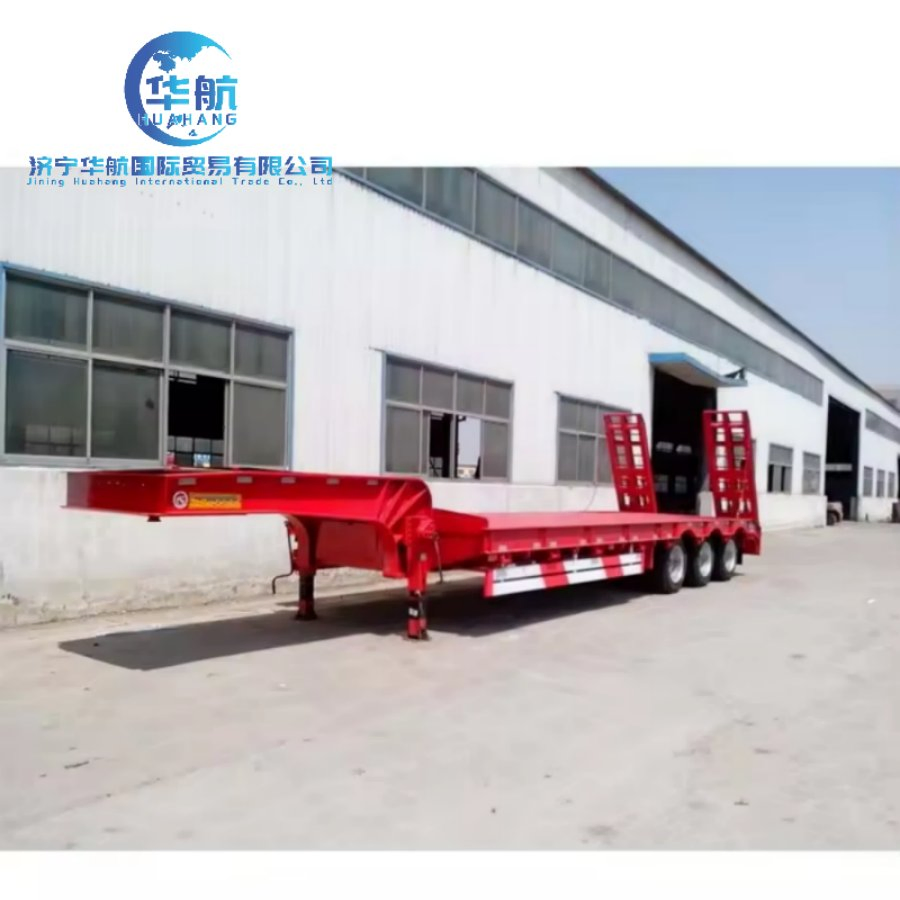

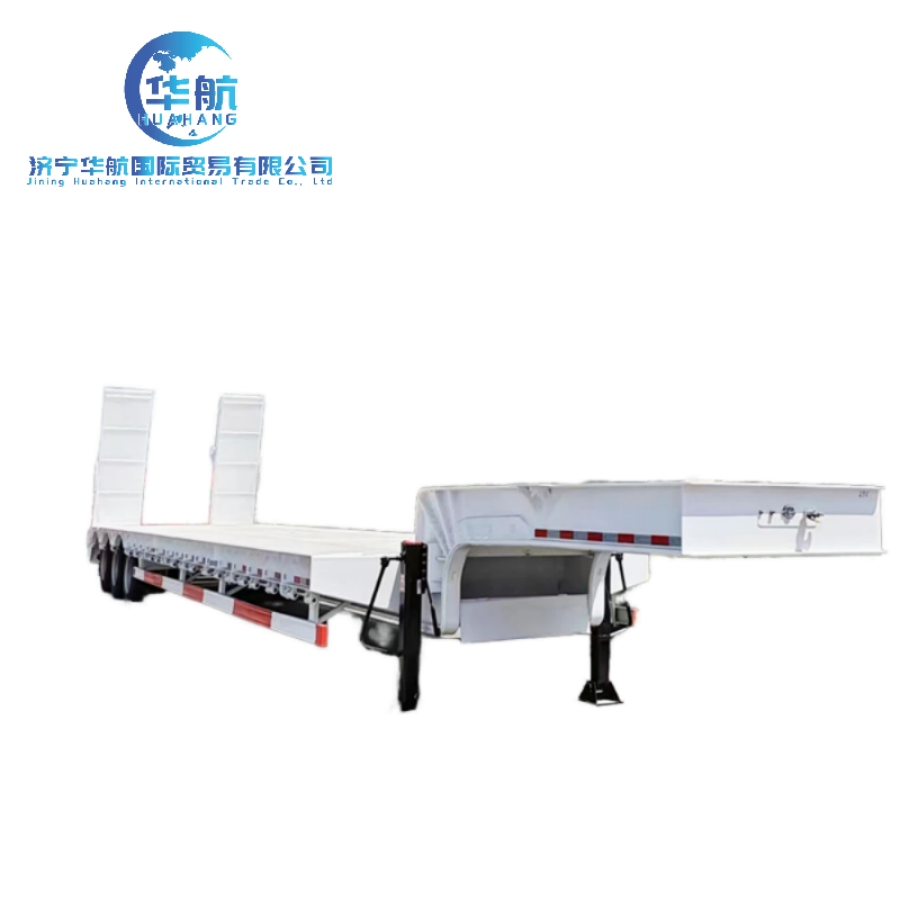

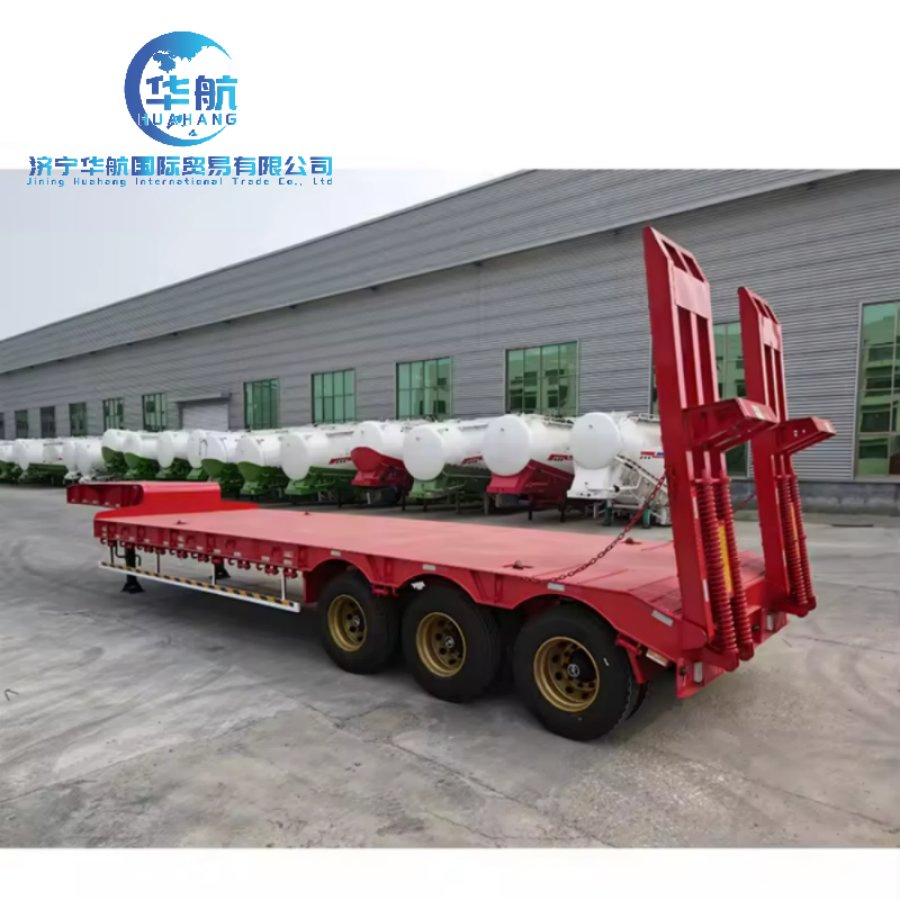

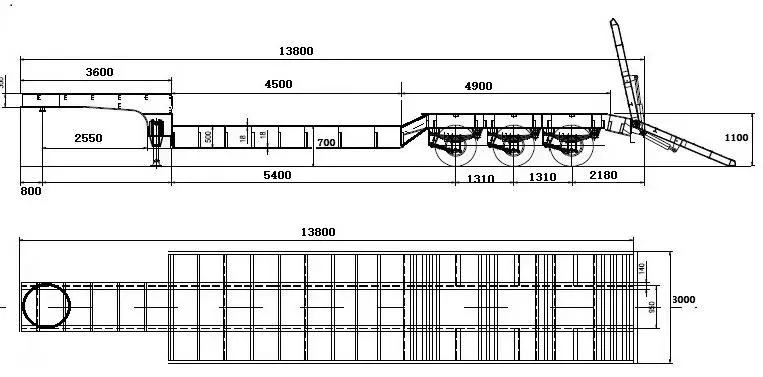

Lowbed semi trailers feature plate types, concave beam types, and exposed tire structures. The frame is a ladder-style construction with longitudinal beam sections in an I-shape, providing high stiffness and strength characteristics. The low cargo platform ensures the smoothness and stability of heavy-duty transportation.
| Product Name | 2 Axles Lowbed | 3 Axles Lowbed | 4 Axles Lowbed |
|---|---|---|---|
| Payload | 40,000 KG | 60,000 KG | 80,000 KG |
| Main Beam | Height: 500mm, Q345B Steel. Upper: 16mm, Middle: 8mm, Down: 18mm | ||
| Axles | 13 Ton capacity (BPW/FUWA/Wosheng Brand Optional) | ||
| Tires | 12R22.5 / 11.00R20 8pcs (Other sizes optional) | ||
| Braking | Double air chamber, brake valve, 45L air tanks; ABS optional | ||

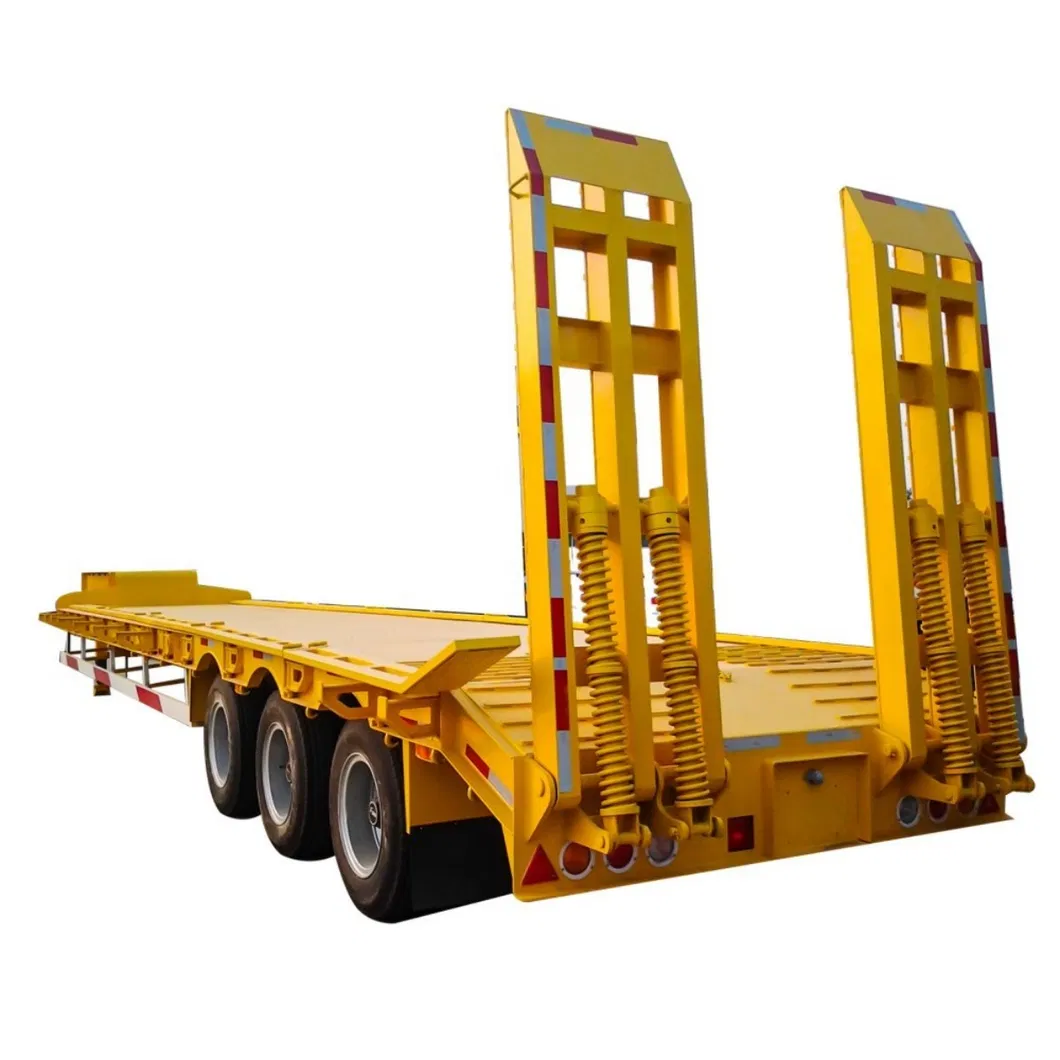

Integrated Axle System: Advanced Low-Alloy Axle Beam with no welding process. Strong carrying capacity and high bending strength.

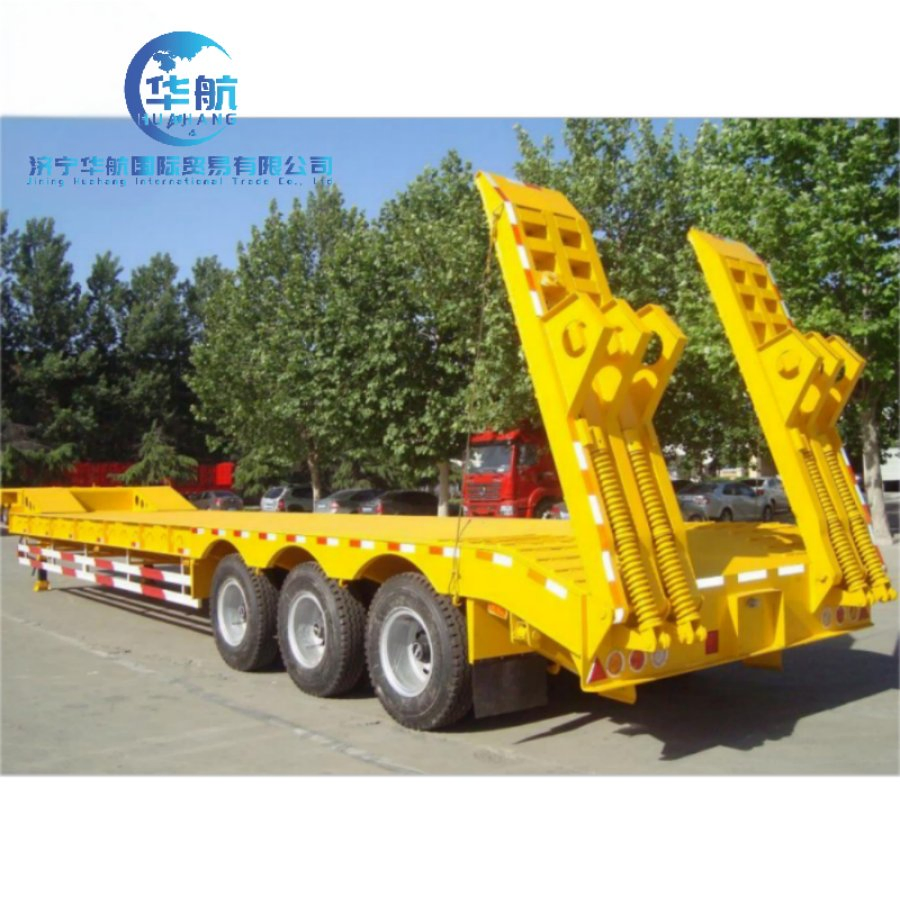

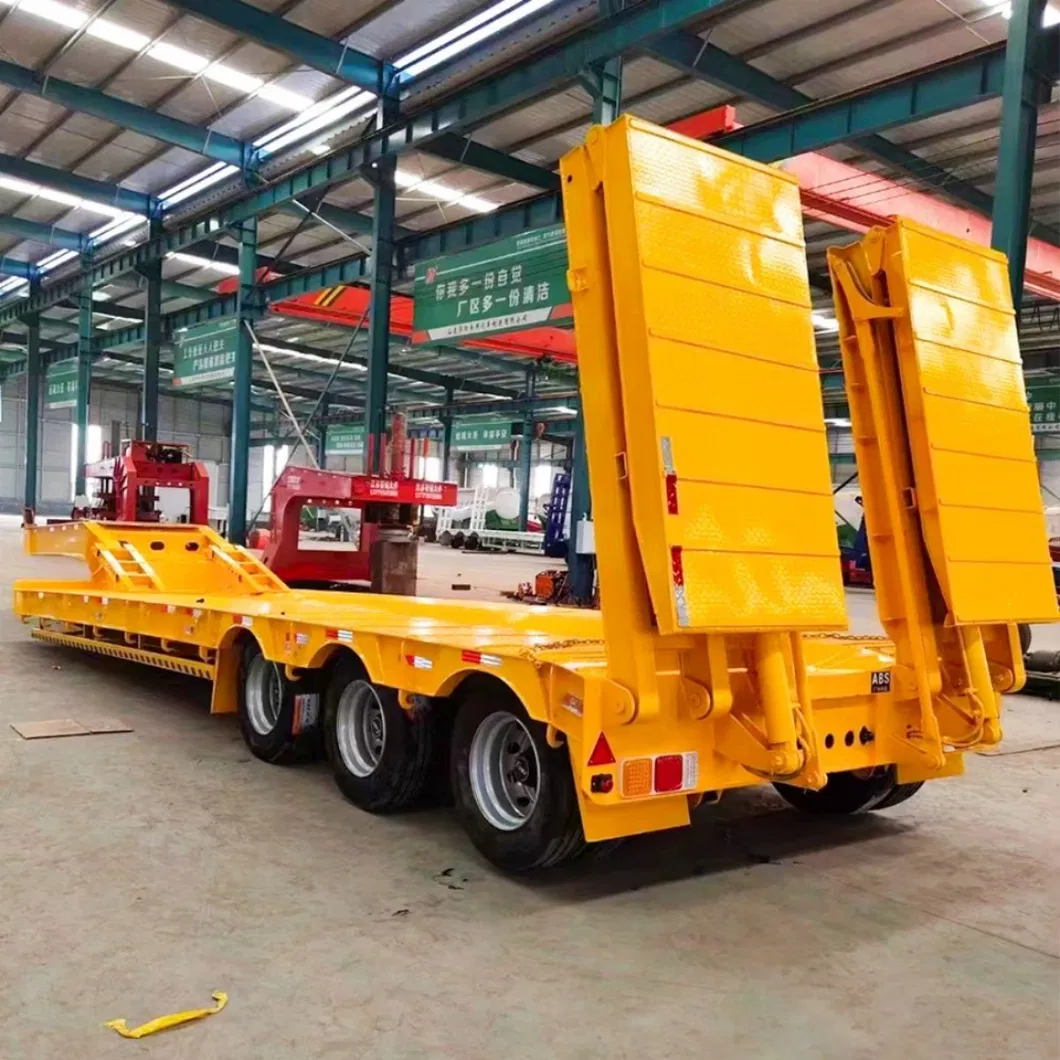

Ladder & Safety: Mechanical ladder with anti-skid chains or optional hydraulic ladder for payloads over 60 tons.

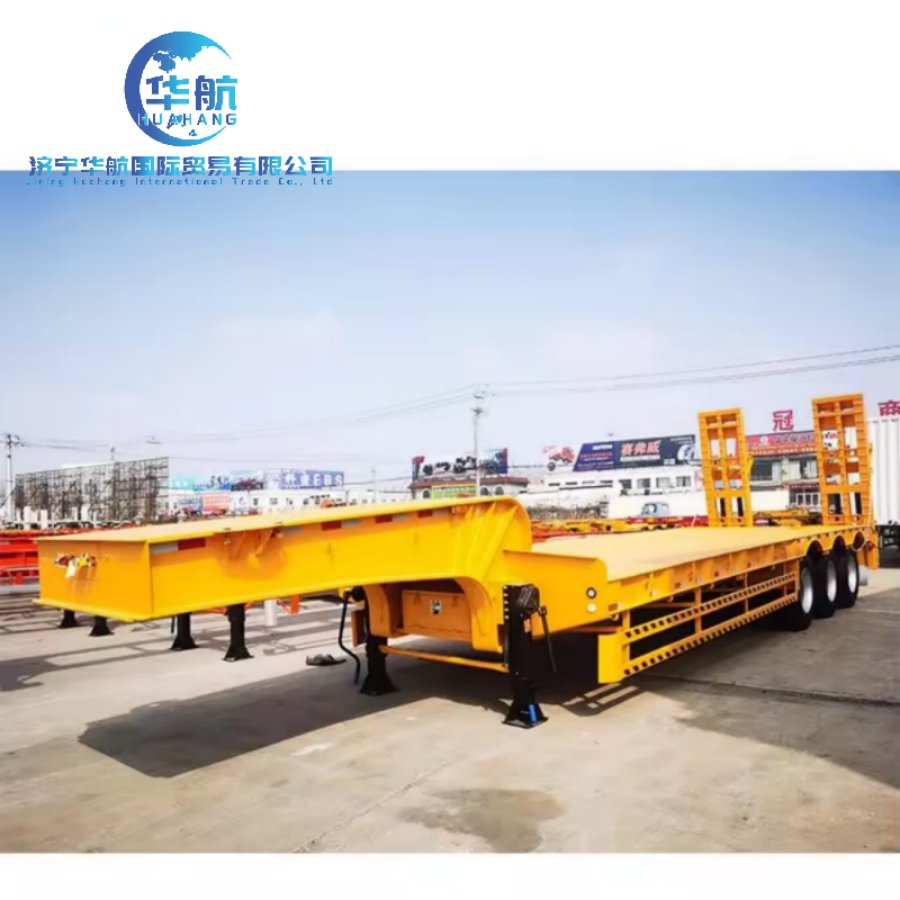

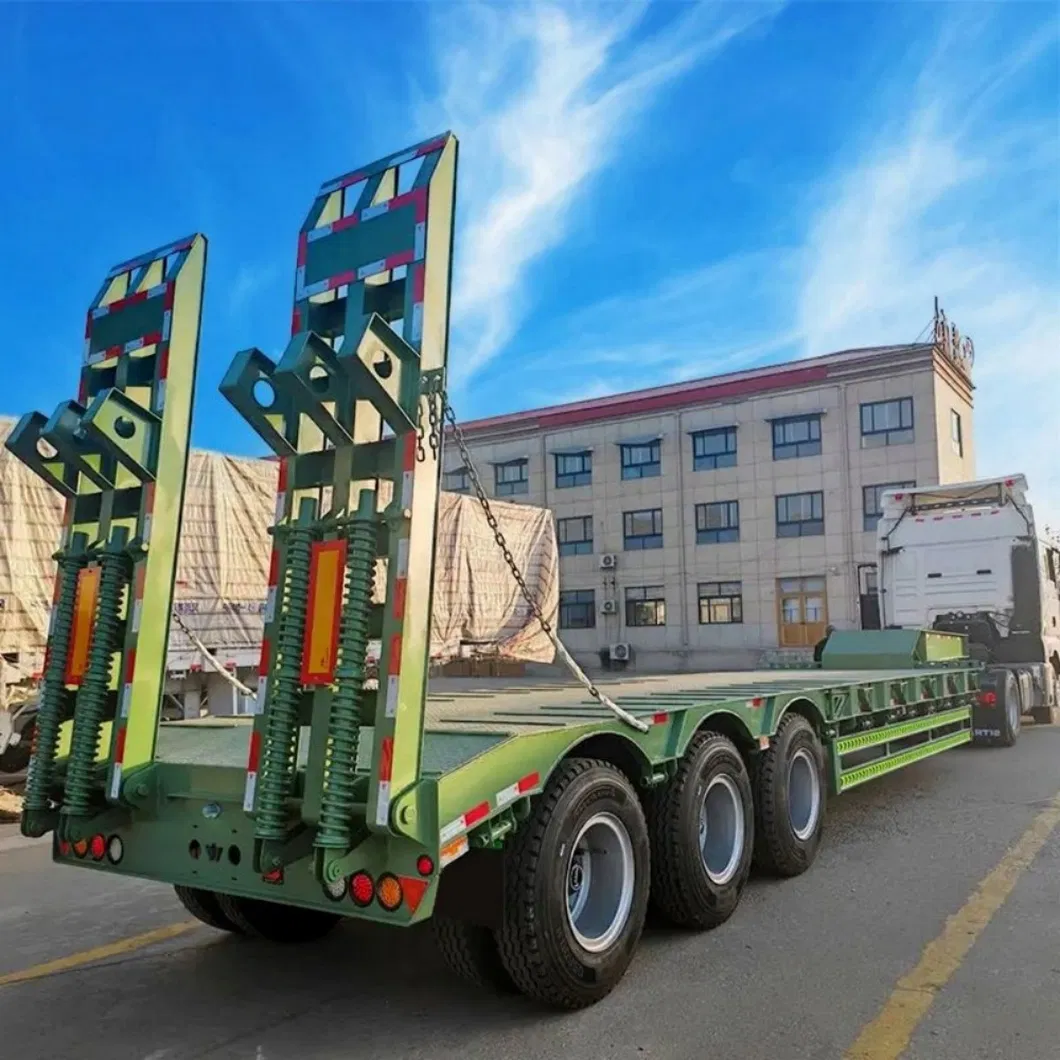

Gooseneck & Platform: Stiffened gooseneck for increased payload. Platform uses patterned steel with anti-skid ribs.
Versatility: Optional container twist locks facilitate the transport of standard containers.
Integrated Industry and Trade · Craftsmanship Manufacturing
1. Evaluation: Classification based on cargo characteristics.
2. Custom Packaging: Scientific reinforcement to ensure safety.
3. Integrated Transport: Consolidation to reduce unit costs.
4. Monitoring: Real-time tracking and route optimization.
