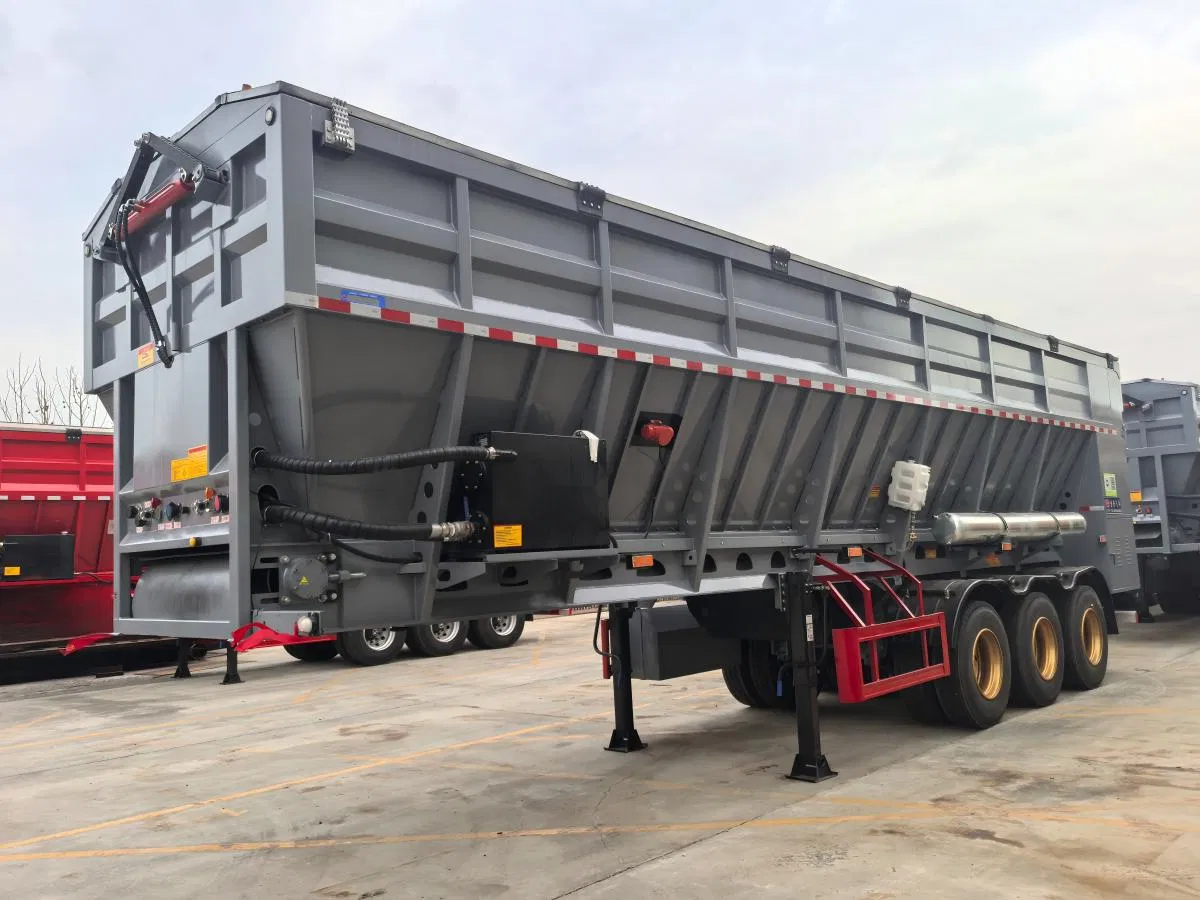

Special purpose Agriculture trailers Belt floor semi trailer Grain transport trailer

Customization: Available
Axle Configuration: Triple Axle
Brake System: Air Brake

Product Description

📋 Basic Info.
Model NO.HTC9605ZXBG
Capacity1500 bushels
Length30 feet
MaterialSteel
Suspension TypeLeaf Spring Suspension

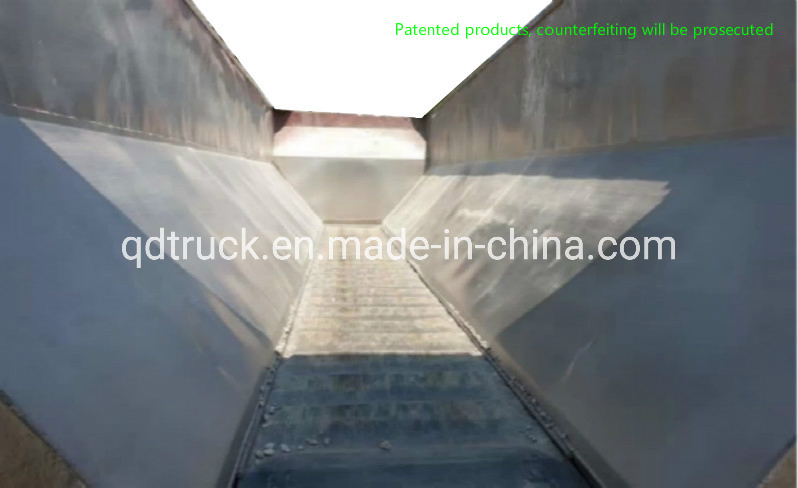

Unloading MechanismBelt Conveyor
Trailer typeGrain trailer
Tipping typeConveyor Belt trailer
Max. loading50 tons Belt trailer
Top coverOptional, steel or tarpaulin
CertificationISO9001, CCC
HS Code87169000
Production Capacity30 Unit/ Month
🌾 Special Purpose Agriculture Trailers
High quality 50cbm special purpose grain trailer / Grain transport trailer

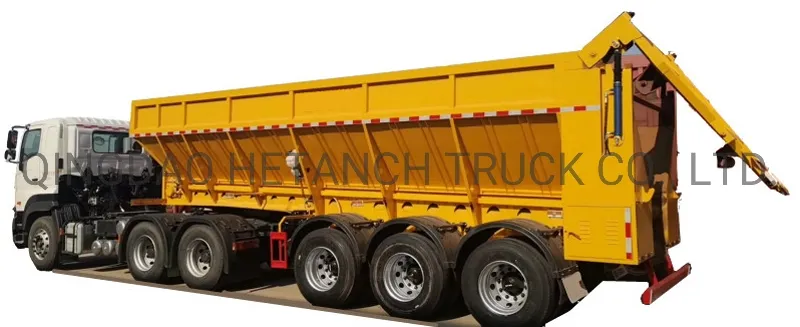

Grain transport trailer
⚙️ Product Parameters
Used for transporting Corn, wheat, grain, cocoa beans, cereals, coal, sands, gravels, Building Stone...
Tare Weight 13.8T
Payload 30-50 tons, 40-50cbm
Axle Weight Load 3 x 13T FUWA/ BPW axle
Dimensions (Outside) 11900×2550×3700mm
Body Thickness Bottom 3mm, side 2mm
Tire Specs 12R22.5 Tubeless tyre (12 pieces)
Unloading Type By conveyor belts (3---8 minutes depends on medium)

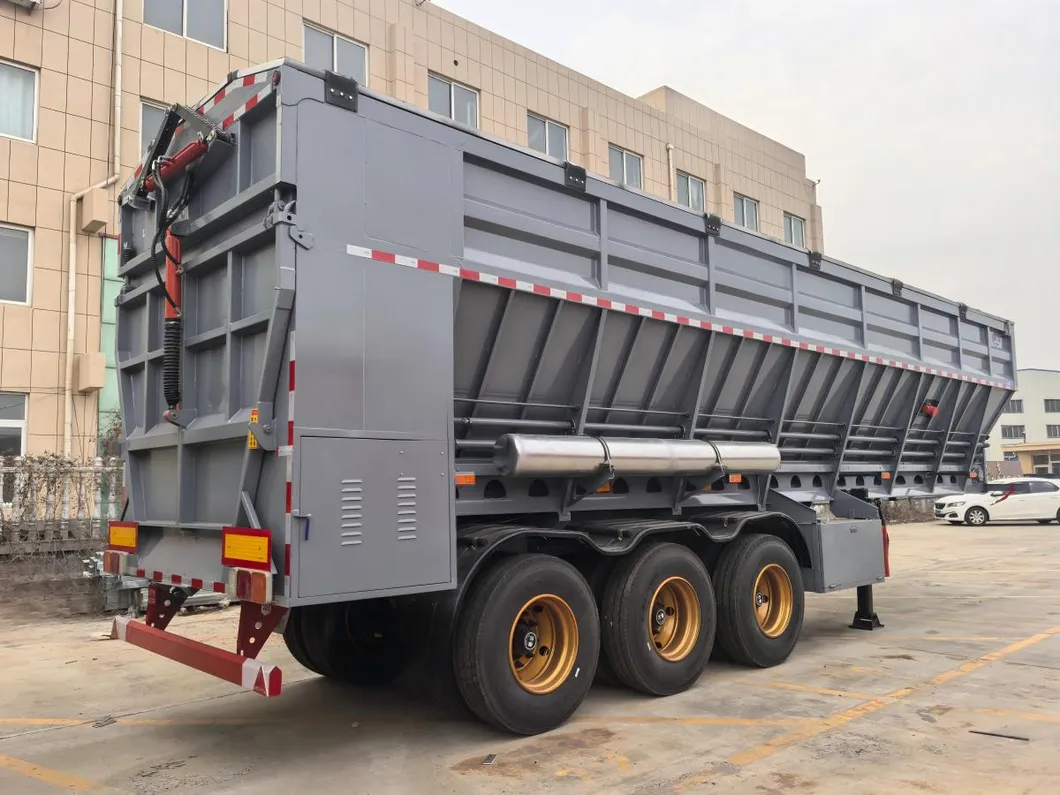

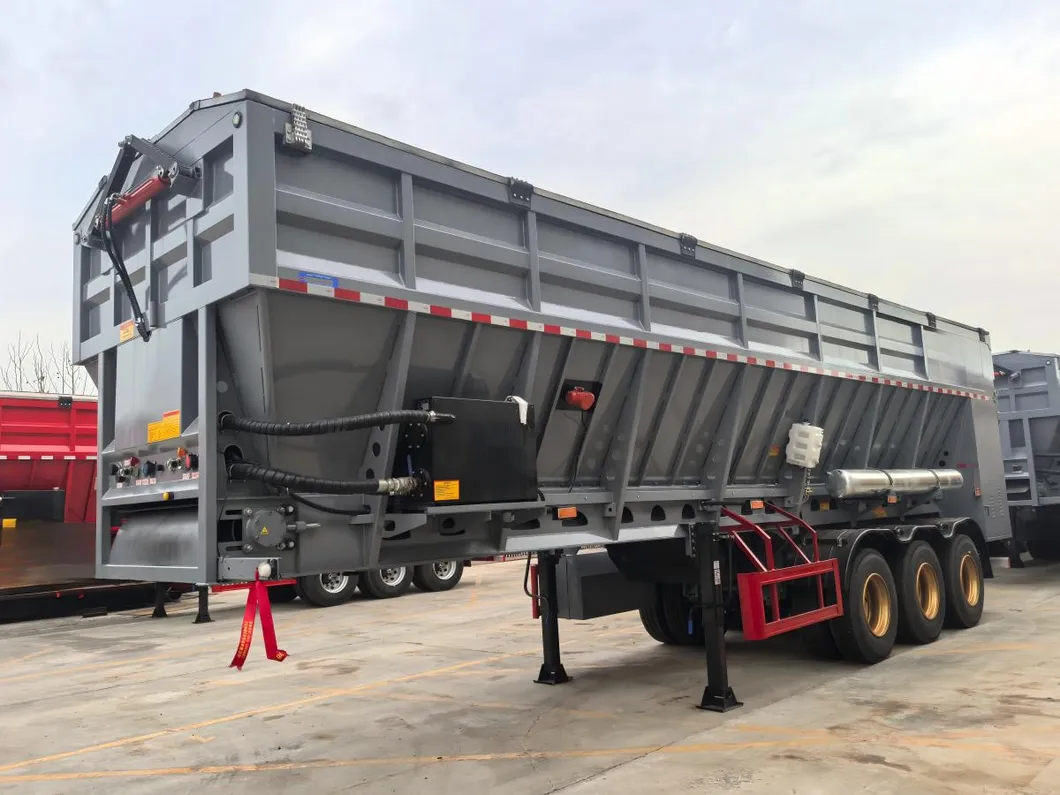

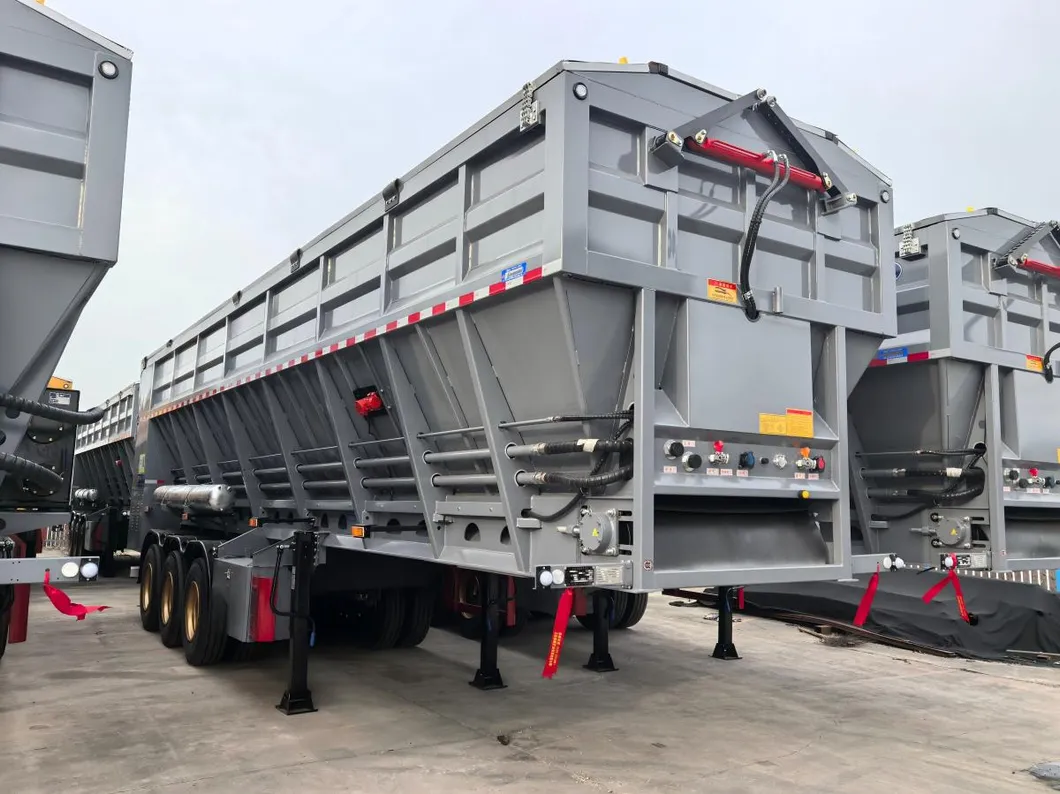

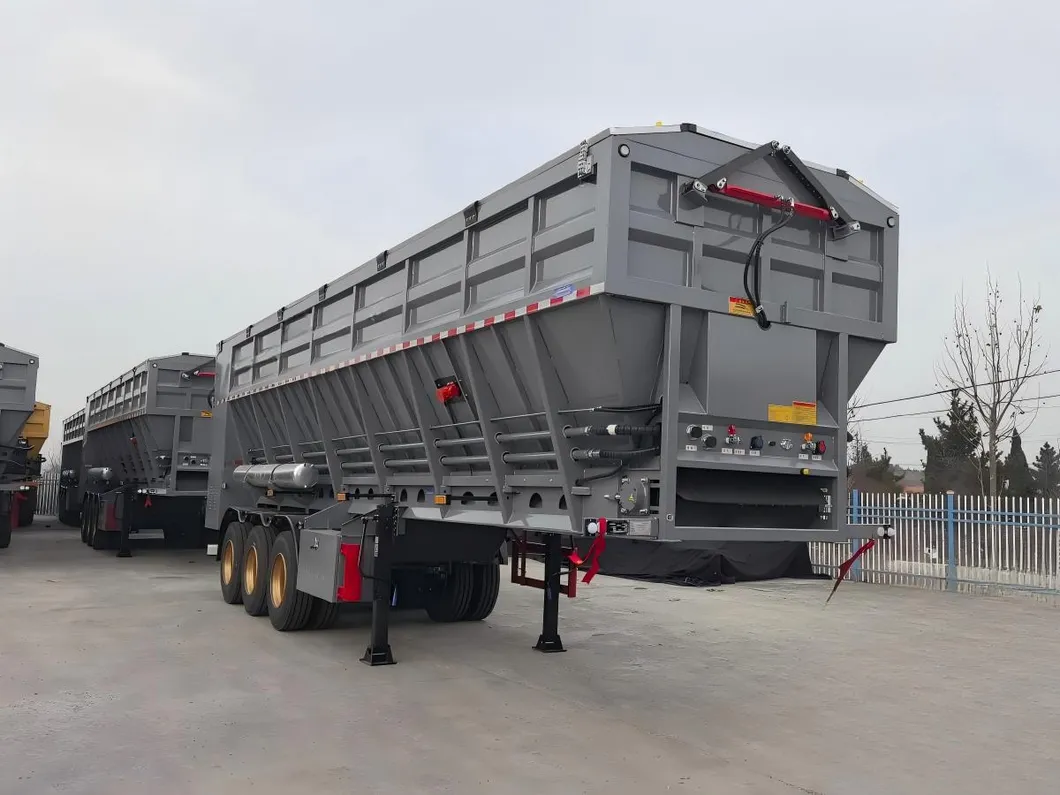

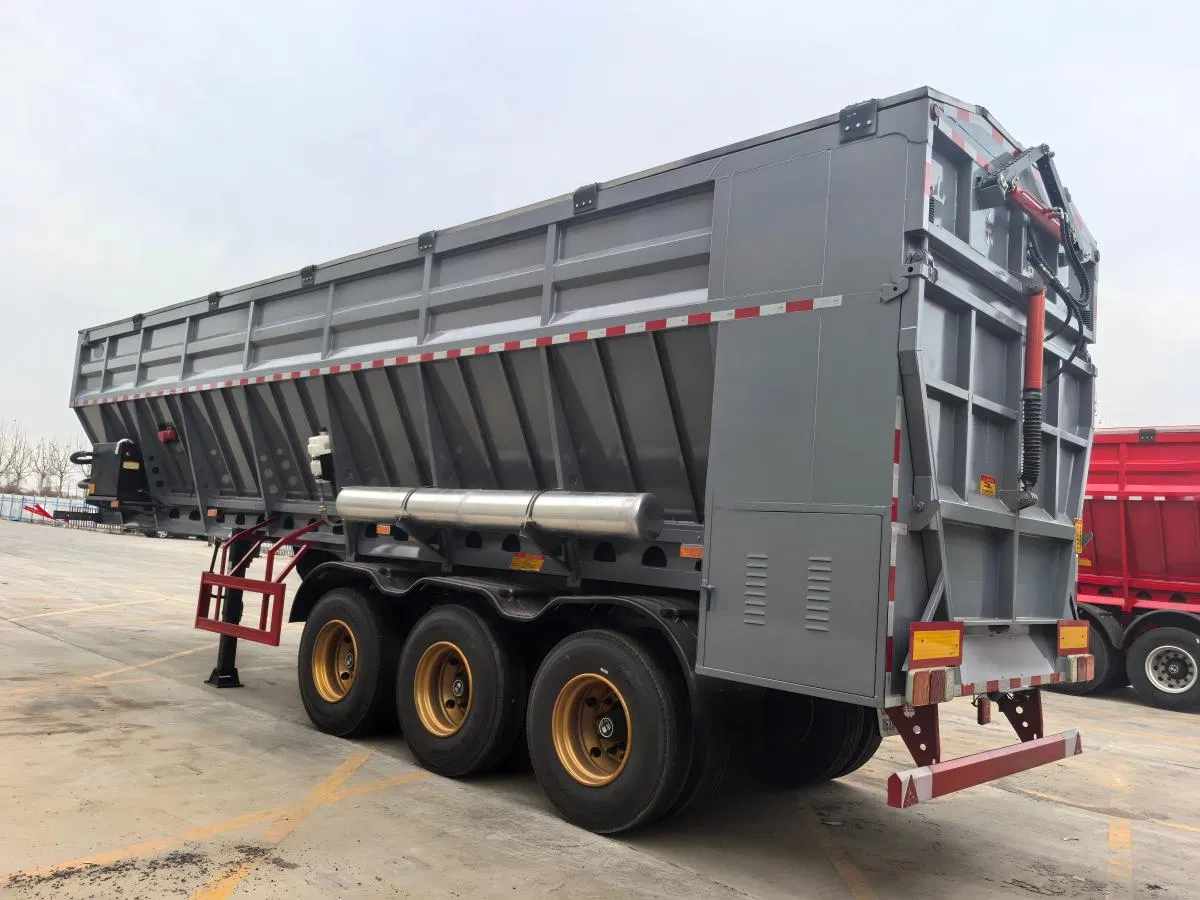

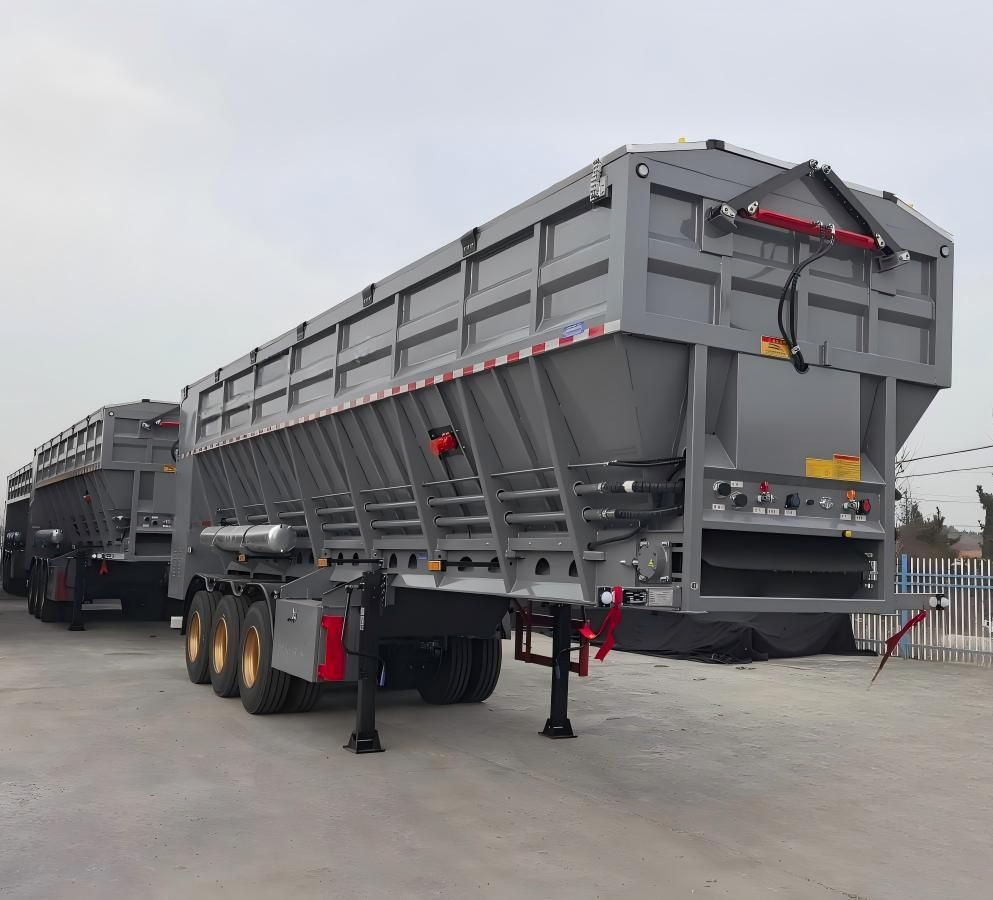

📷 Detailed Photos
🚀 Live Bottom Trailer Advantages
⏱️
Increased Efficiency: Automated unloading reduces time and labor costs. Unloading time is as low as 60 seconds for certain products.
🛡️
Durable Design: Duraplate sidewalls provide exceptional rigidity and durability while remaining flexible and easy to clean.
🔄
Adaptable Use: Perfect for transporting a wide range of materials, including agricultural products, waste, cereals, and building stones.
📡

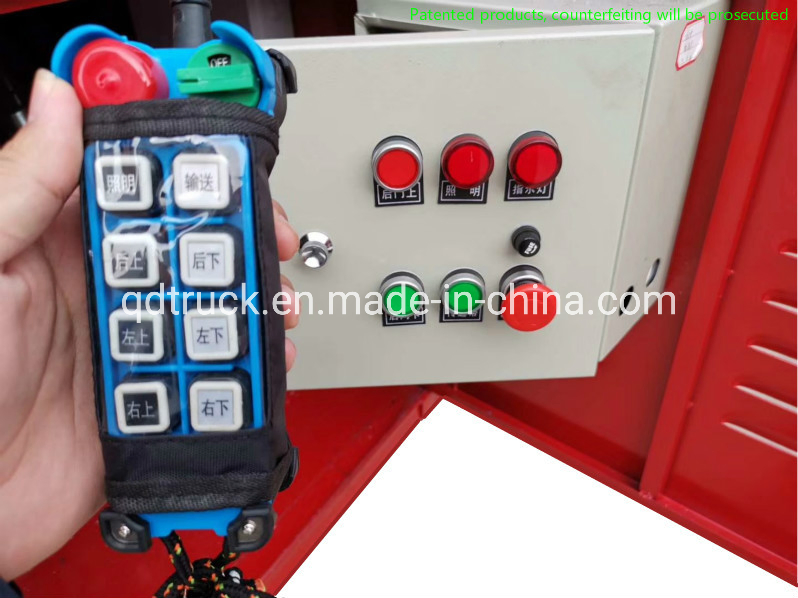

Advanced Control: Features wireless transmitter control for up-swing tailgate and latches, with options for electric tarps.
📦 Packaging & Shipping
❓ Frequently Asked Questions
1. What materials can be transported using the belt floor semi-trailer?
The trailer is highly versatile and suitable for transporting various dry bulk cargos including corn, wheat, grain, cocoa beans, cereals, coal, sands, gravels, and building stones.
2. How long does it take to unload the trailer?
The unloading time typically ranges between 3 to 8 minutes, depending on the type of medium being transported. Some specialty setups can achieve faster results.
3. Is the belt floor trailer safer than traditional dump trailers?
Yes, traditional dump trailers require perfectly flat ground to avoid the risk of falling over during tipping. The conveyor belt system unloads horizontally, allowing it to work under a wider variety of ground conditions.
4. Can the dimensions or belt width be customized?
Absolutely. The overall size of the trailer and the width of the conveyor belt can be customized to meet specific operational requirements.
5. What options are available for cargo protection?
To protect against rain and dust, trailers can be equipped with either a fixed steel top cover or a flexible tarpaulin cover.
6. What type of suspension and axles are used?
The standard configuration uses heavy-duty leaf spring suspensions and high-quality 13T FUWA or BPW axles for maximum load capacity and durability.
