| Type | Semi-Trailer | Load Capacity | 40t-80t |
| Certification | CE, ISO9001, CCC, ISO/TS16949 | Axle Number | 4 |
| Suspension | Air / Mechanical Suspension | Brake System | ABS Anti-lock Braking |
| Frame Material | Steel Q345b | Dimensions | 16000x2500x1650mm |

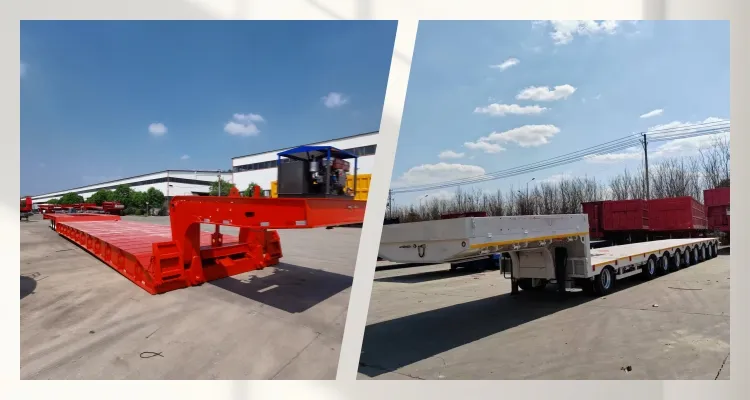

The Low-bed Semi-trailer is a specialized vehicle designed for transporting oversized and heavy cargo. Its core feature is that the height of the flatbed structure is significantly lower than that of ordinary trailers, which enhances transportation stability by lowering the center of gravity. The vehicle is mainly made of high-strength steel through welding and is equipped with multi-axle configurations, making it suitable for the road transportation of oversized goods such as construction machinery, large-scale equipment, and marine components.

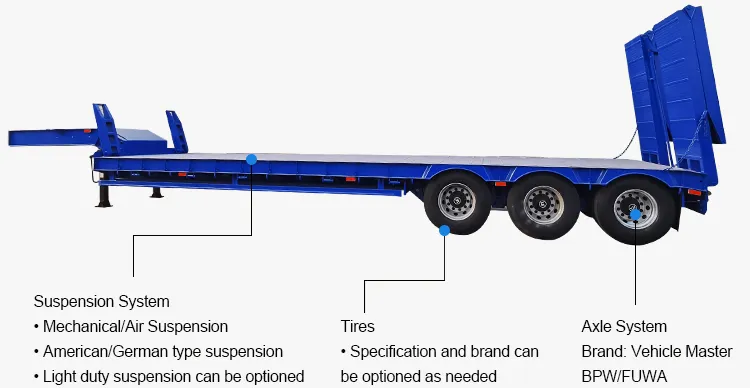

| Suspension System | Mechanical suspension/ pneumatic suspension |
| Frame Construction | Carling height 500mm; Upper 18mm, Down 20mm, Middle 14mm |
| Platform Plate | 3-8mm Diamond Plate |
| Traction Pin | JOST 90# (3.5'') or 50#(2.0'') |

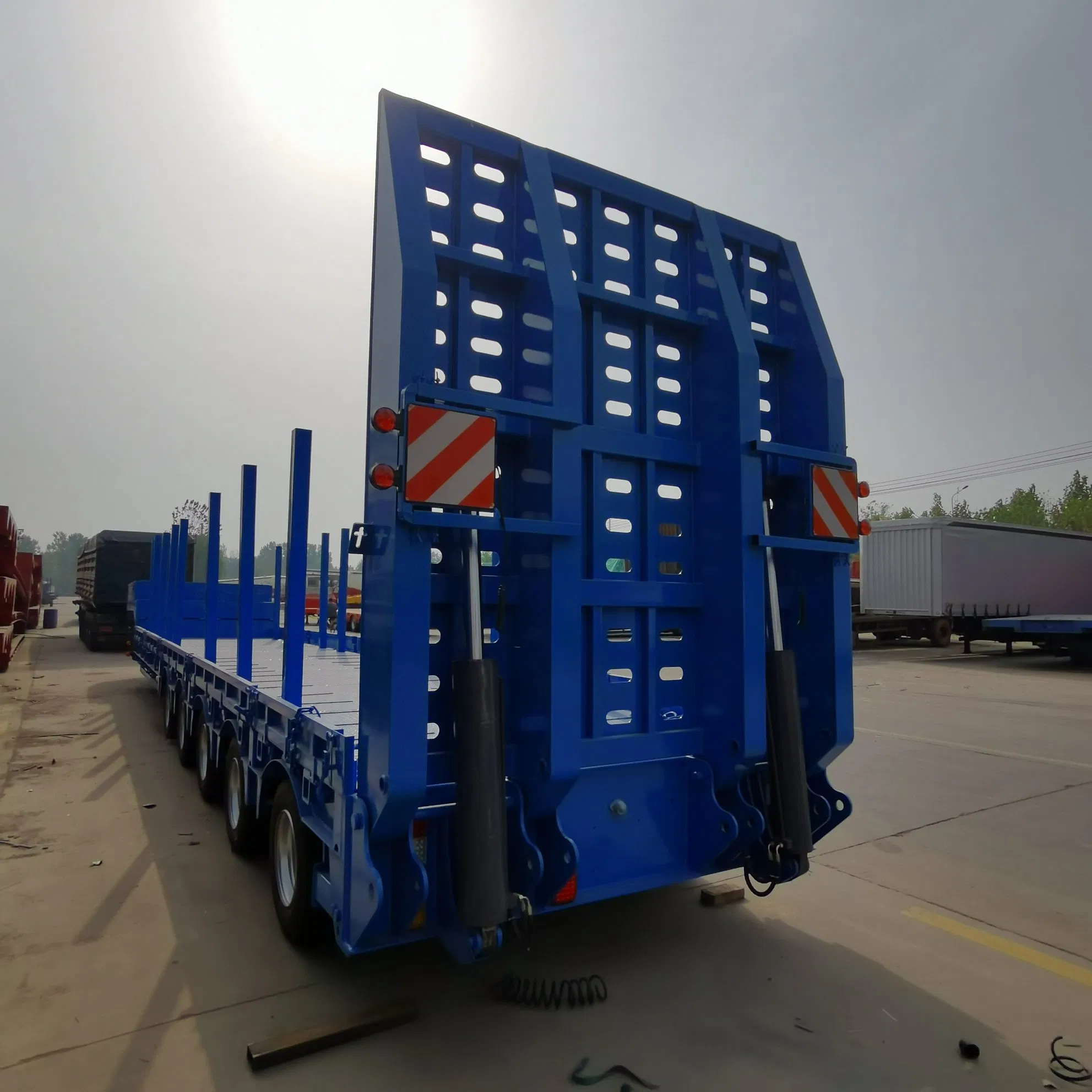

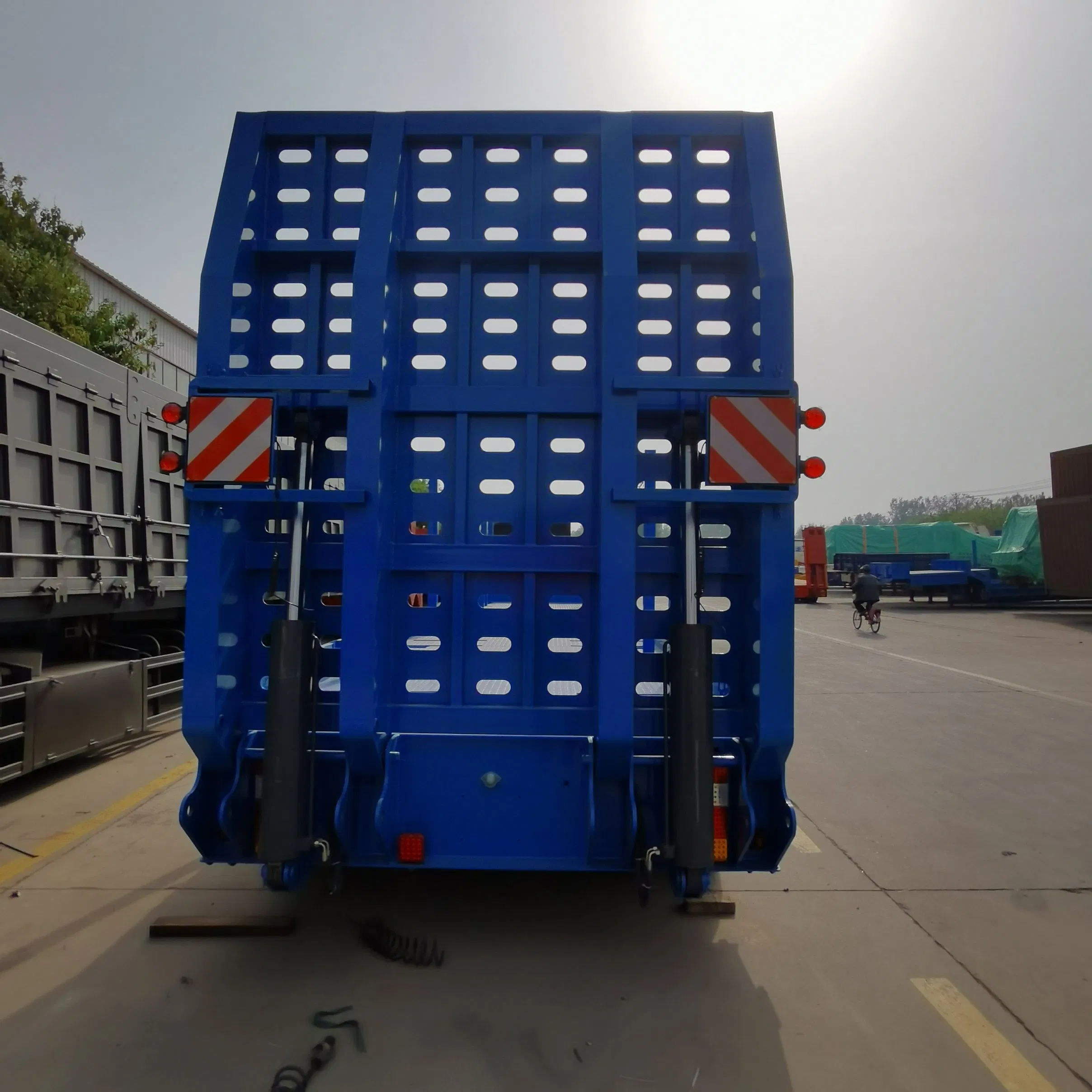

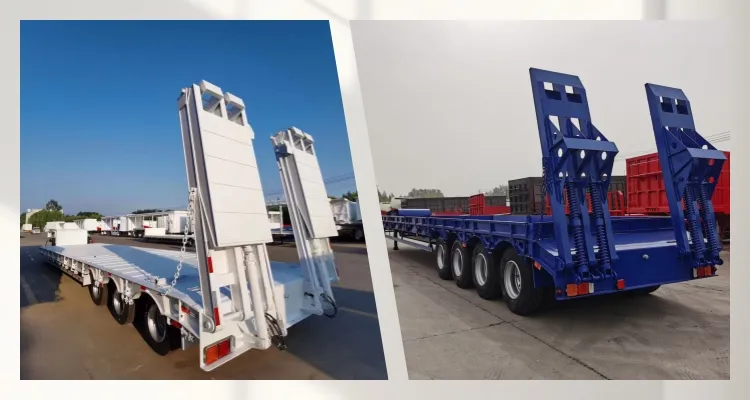

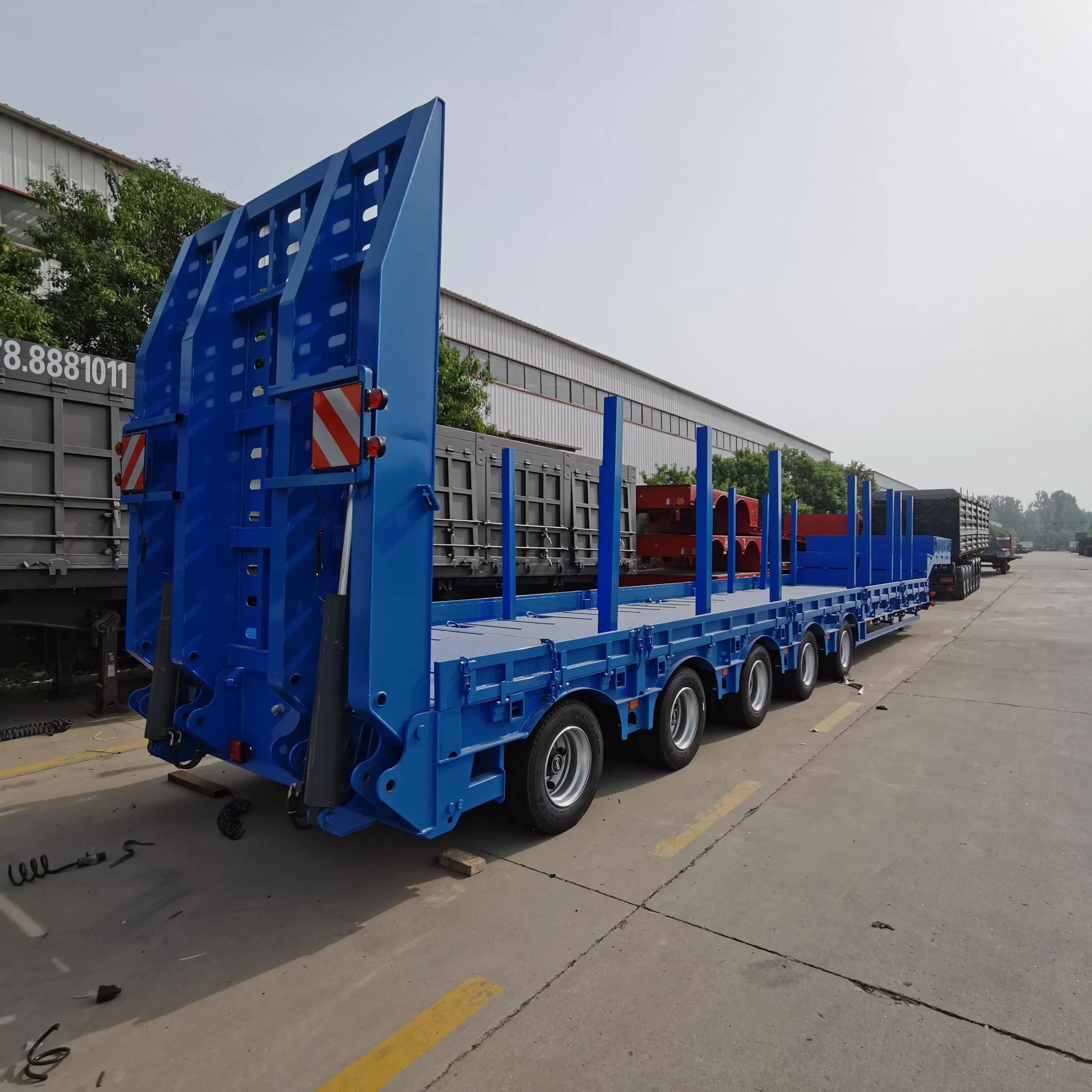

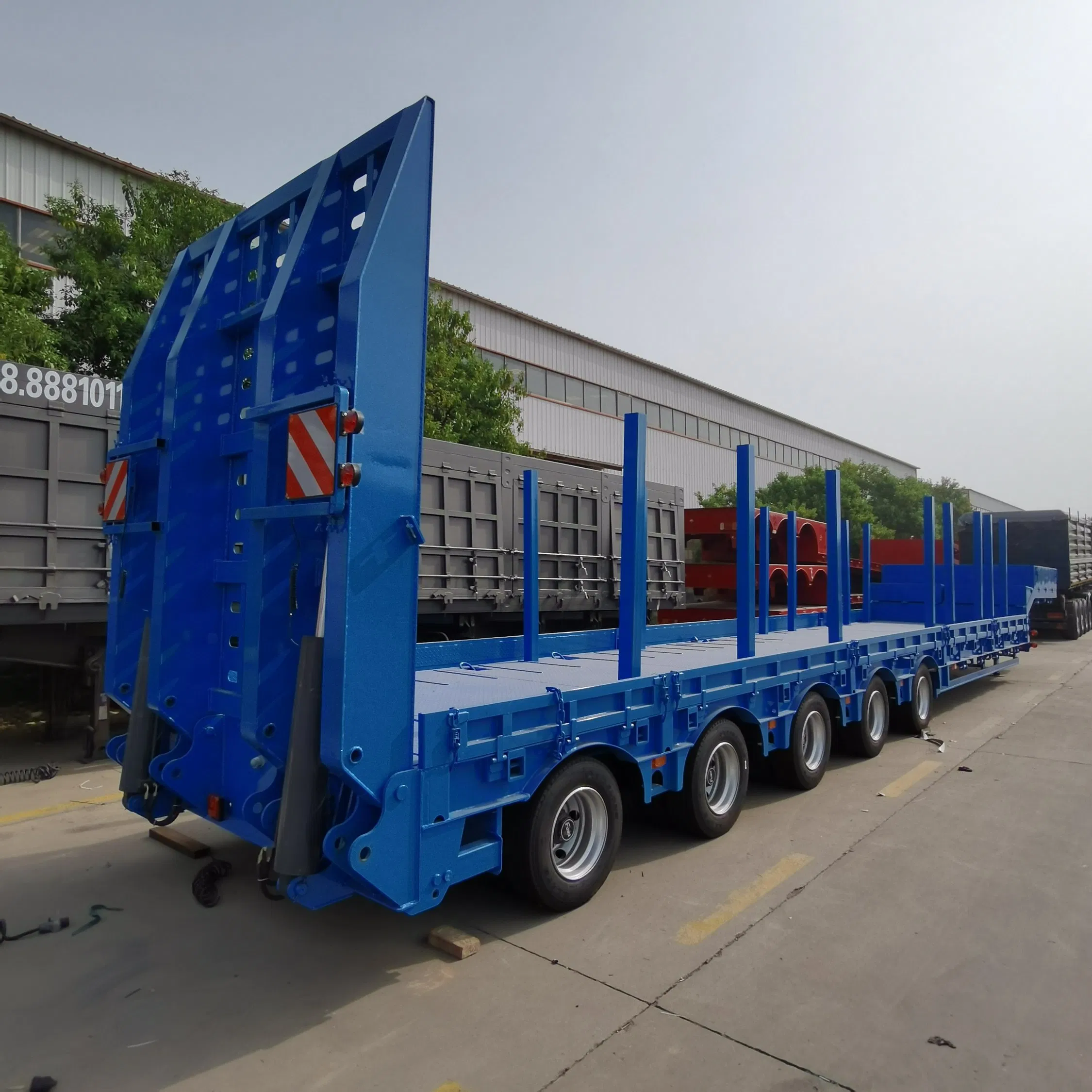

| Ramp System | Hydraulic pump or manual operation |
| Electrical System | 24V, 7 Pole plug with full signal lights |

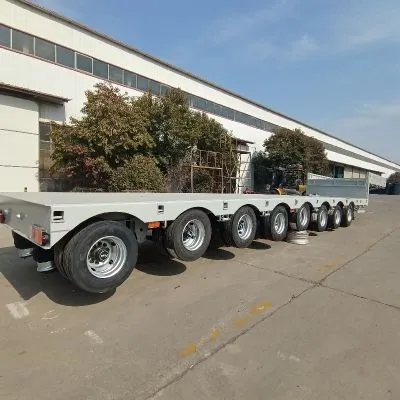

Lowering the center of gravity facilitates loading and unloading, and enhances transportation stability.

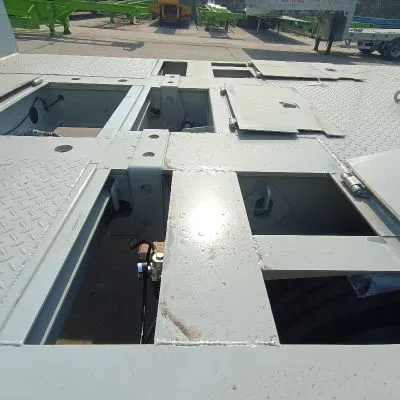

Supports adjustable or interlocking extendable cargo deck lengths to accommodate various cargo sizes.

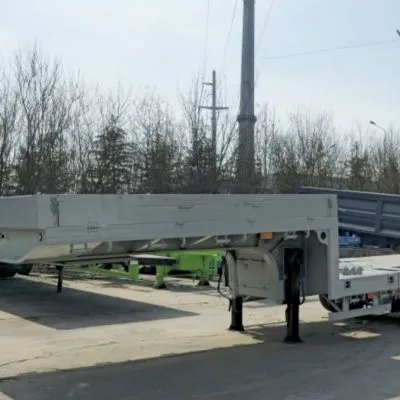

Optimizes the connection angle between the tractor and trailer, enhancing turning flexibility.
