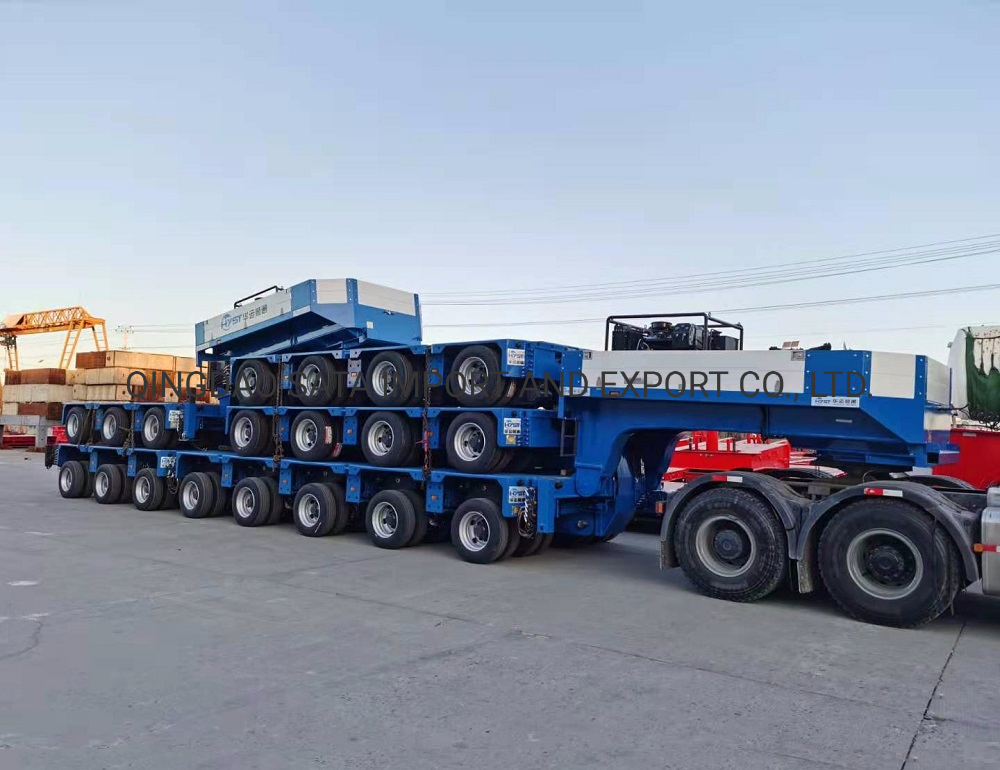

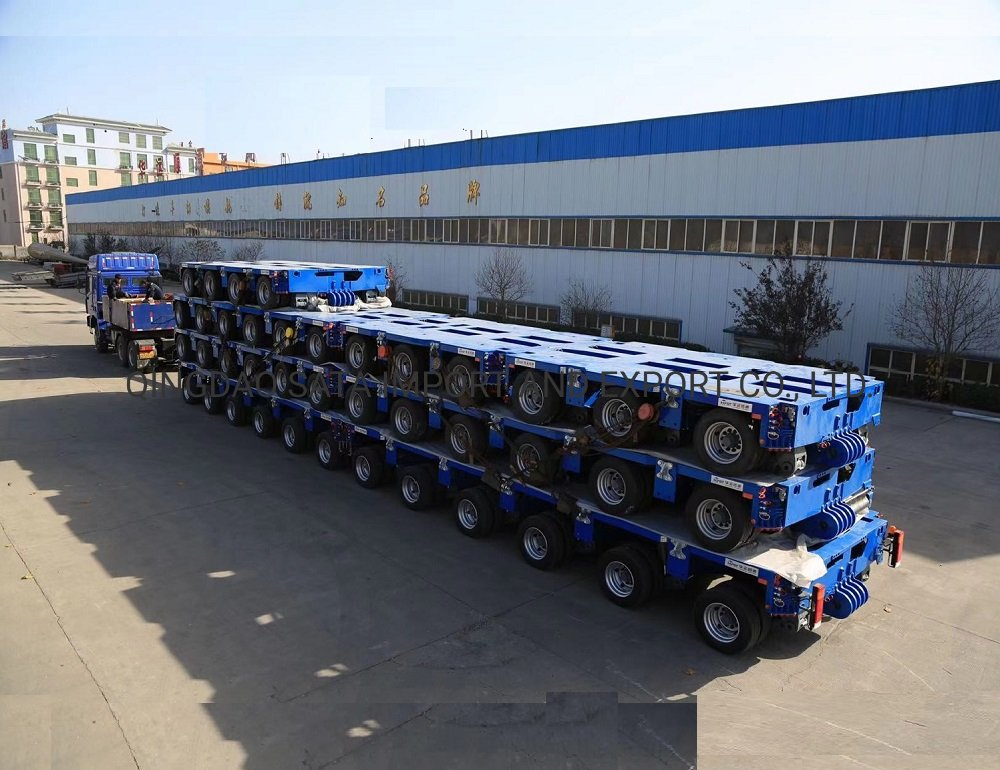

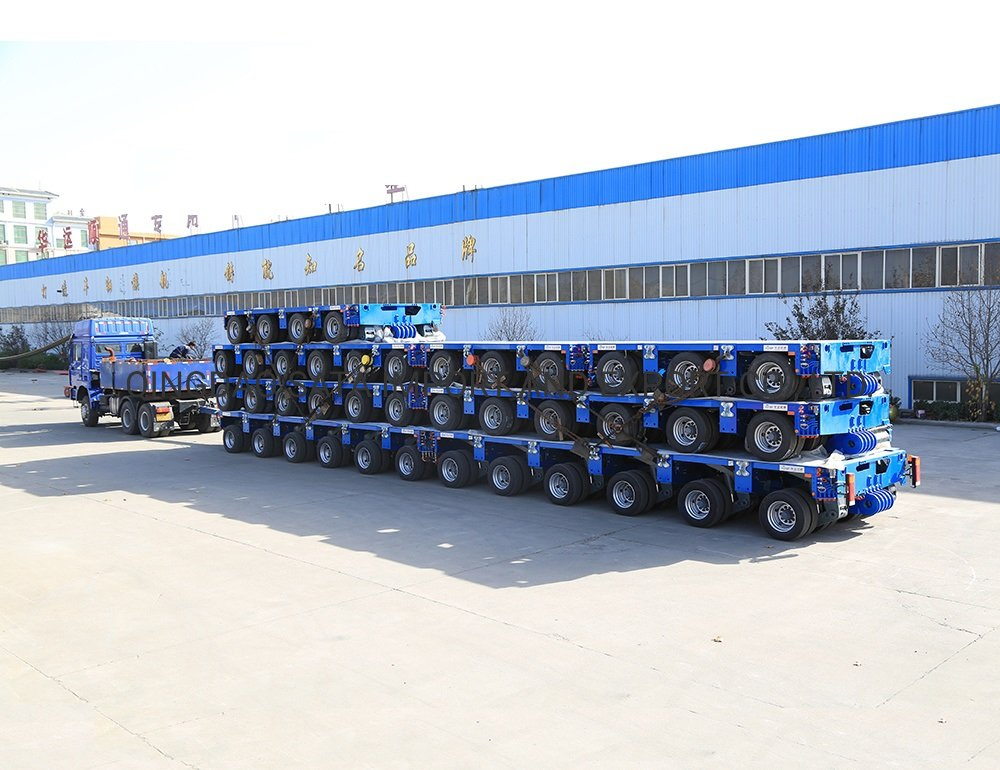

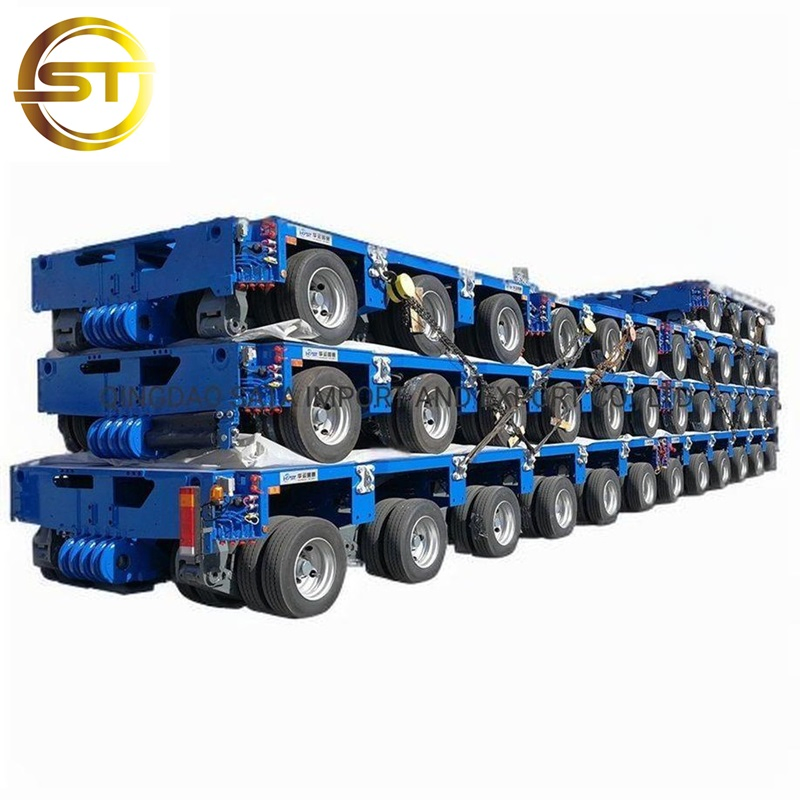

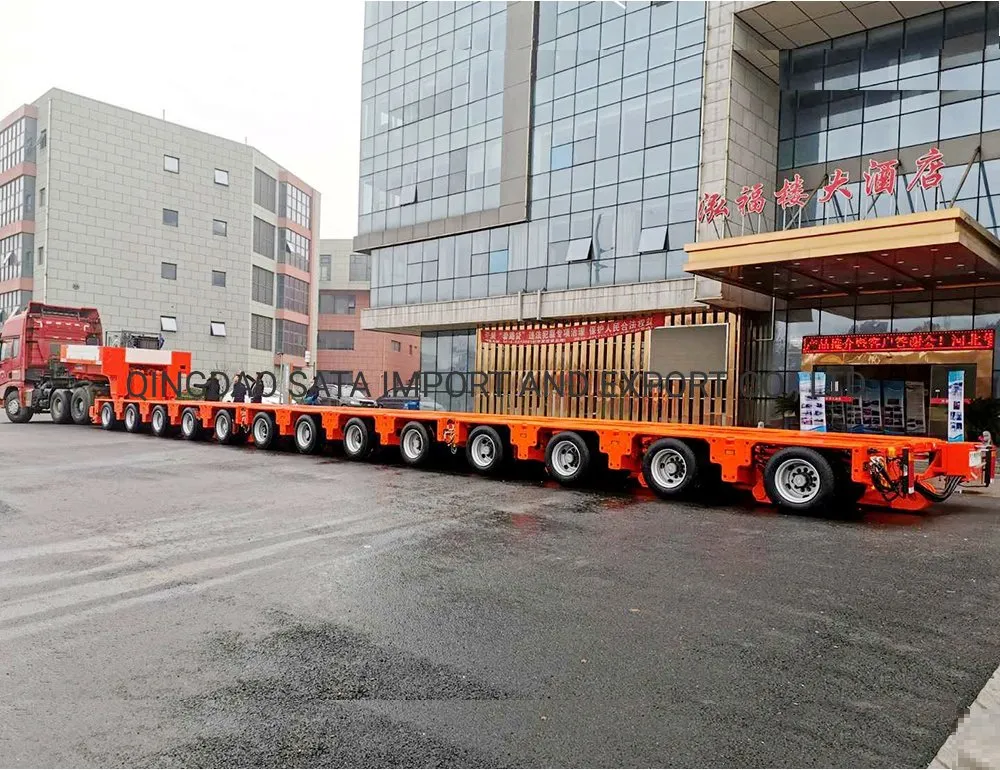

Compatible with Goldhofer THP/SL Modular Trailer
Optional 685mm or 770mm min platform height, lowest dead weight on market, 34 ton axle load, simple accessible steering, a variety of model options.

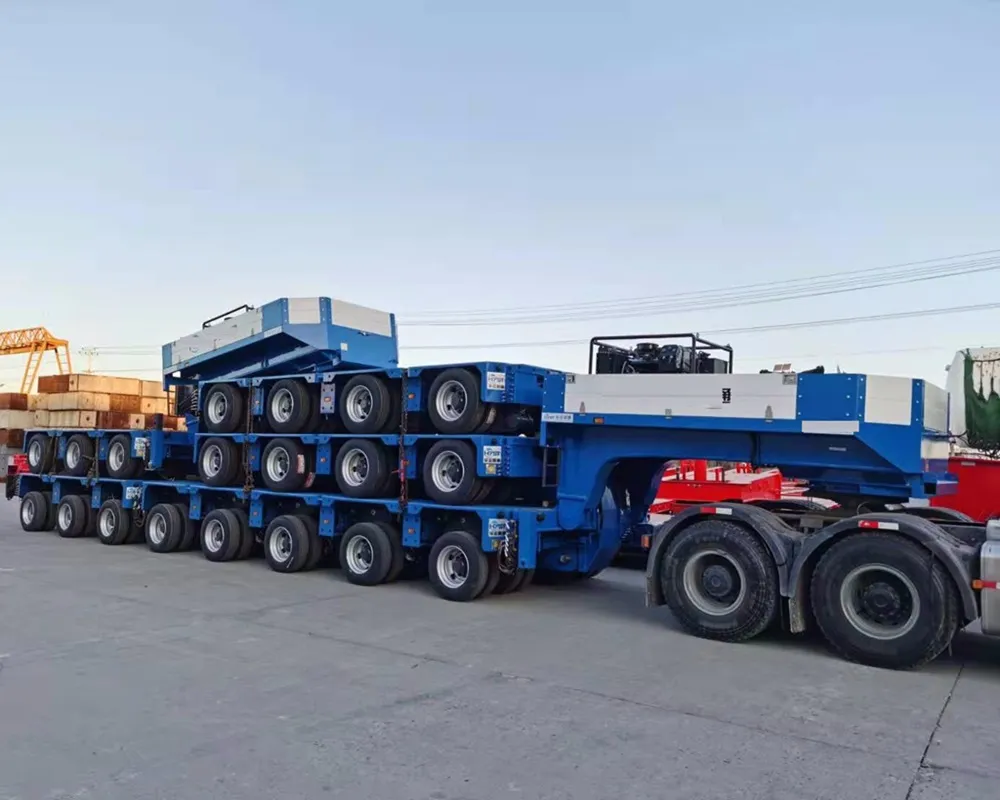

TurnTable, Long-load Swivel Bolster for Modular Trailers
Turntables are essential for transporting long loads. From 100 ton to 3,000 ton, they are flexible and improve the transport of self-supporting goods. Accessories include Hydraulic Gooseneck, Drop Deck, Spacer, Extendable Vessel Bridge, and Girder bridge.
| Technical Specification | Value | ||
|---|---|---|---|
| Capacity | 34 Tons/axle line @0.5km/h | ||
| Dead weight | 3.3 Tons/axle line | ||
| Material | S550 high tensile steel, 550Mpa | ||
| Platform height (mm) | Min 770 mm / 1080(+290)(-310) mm | ||
| Wheelbase (mm) | 1,550 | ||
| Tire | 215/75 R17.5 (8 tires / axle line) | ||

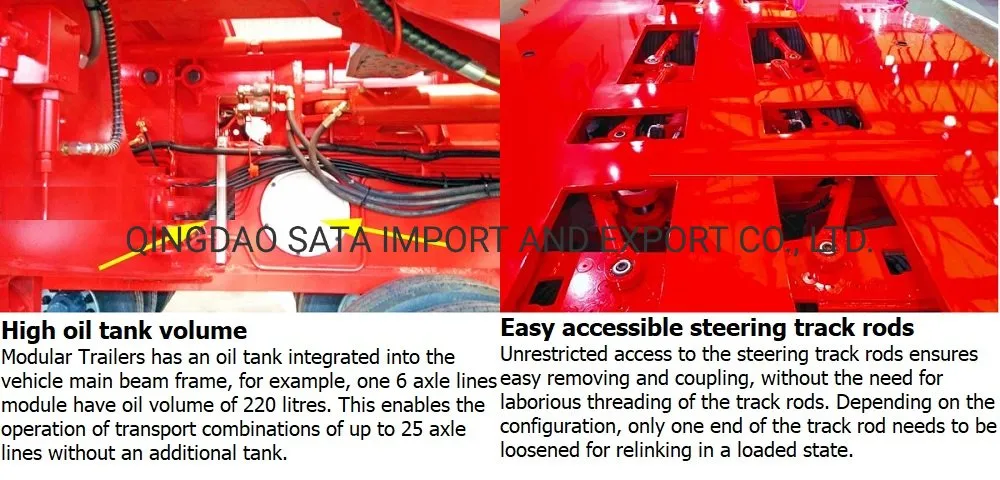

| Max. steering angle | + / - 55° in all ride heights | ||
