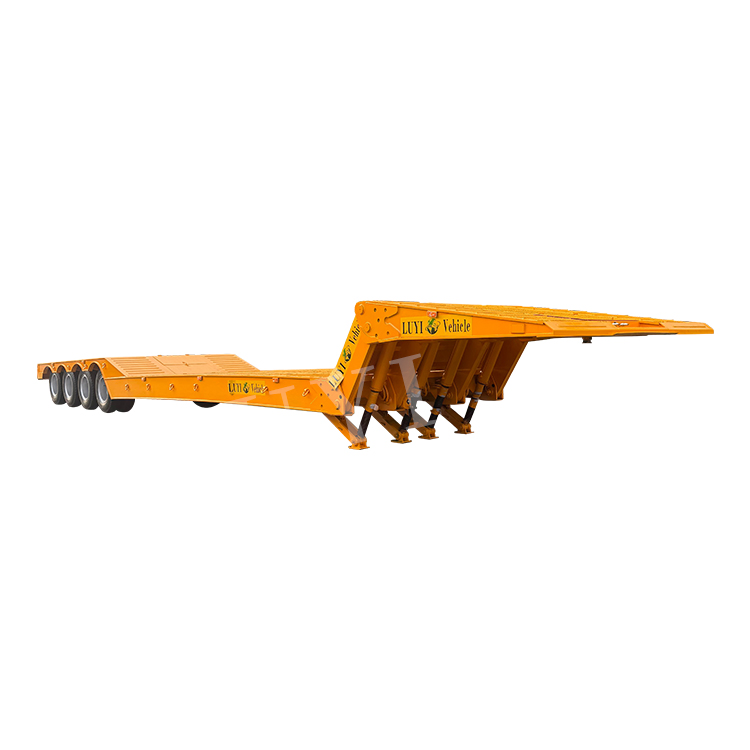

4 Axle 100t Low Bed Truck Trailer for Transporting Large Equipment Machinery Hydraulic Folding Heavy Duty Low Bed Semi Trailer
4 Axle 100t Low Bed Truck Trailer for Transporting Large Equipment Machinery Hydraulic Folding Heavy Duty Low Bed Semi Trailer
4 Axle 100t Low Bed Truck Trailer for Transporting Large Equipment Machinery Hydraulic Folding Heavy Duty Low Bed Semi Trailer
4 Axle 100t Low Bed Truck Trailer for Transporting Large Equipment Machinery Hydraulic Folding Heavy Duty Low Bed Semi Trailer
4 Axle 100t Low Bed Truck Trailer for Transporting Large Equipment Machinery Hydraulic Folding Heavy Duty Low Bed Semi Trailer
1 / 5
4 Axle 100t Low Bed Truck Trailer for Transporting Large Equipment Machinery Hydraulic Folding Heavy Duty Low Bed Semi Trailer
4 Axle 100t Low Bed Truck Trailer for Transporting Large Equipment Machinery Hydraulic Folding Heavy Duty Low Bed Semi Trailer
4 Axle 100t Low Bed Truck Trailer for Transporting Large Equipment Machinery Hydraulic Folding Heavy Duty Low Bed Semi Trailer
4 Axle 100t Low Bed Truck Trailer for Transporting Large Equipment Machinery Hydraulic Folding Heavy Duty Low Bed Semi Trailer
4 Axle 100t Low Bed Truck Trailer for Transporting Large Equipment Machinery Hydraulic Folding Heavy Duty Low Bed Semi Trailer

4 Axle 100t Low Bed Truck Trailer for Transporting Large Equipment Machinery Hydraulic Folding Heavy Duty Low Bed Semi Trailer

After-sales Service: Remote Technical Support,Free Accessories
Warranty: 6 Years
Type: Semi-Trailer
Send Inquiry

Product Description

📋 Basic Information
Product Name
Lowbed Semi Trailer
Certification
GCC, CE, CCC
Loading Capacity
100 Tons, 4 Axles
Dimension
18000mm x 3800mm x 1800mm
Axle Number
4 Axles
Suspension
Air Suspension / 4-Axle Mechanical
Gooseneck
Hydraulic Folding Gooseneck
Material
High Tensile Steel
Tire Number
8
Braking System
ABS Anti-lock Braking System
Kingpin
Jost Brand 2.0 or 3.5inch
Condition
New
⚙️ Technical Specifications
Category Detailed Specification
Model TypeLowbed Semi-Trailer
Suspension3-Axle Mechanical Suspension (Leaf Spring: 120mm*16mm*10 Layers)
Tire Specification12.00R24 Steel-Belted Tires

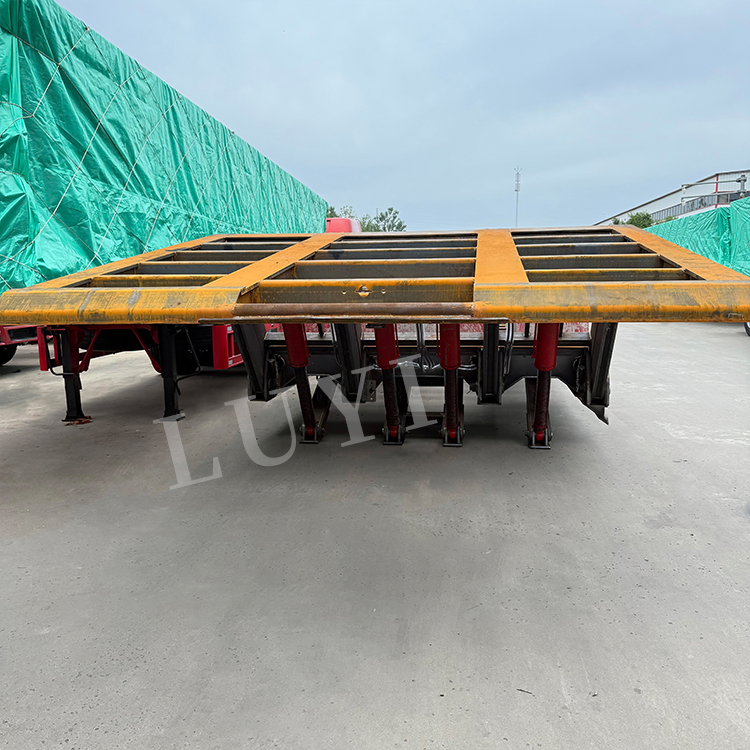

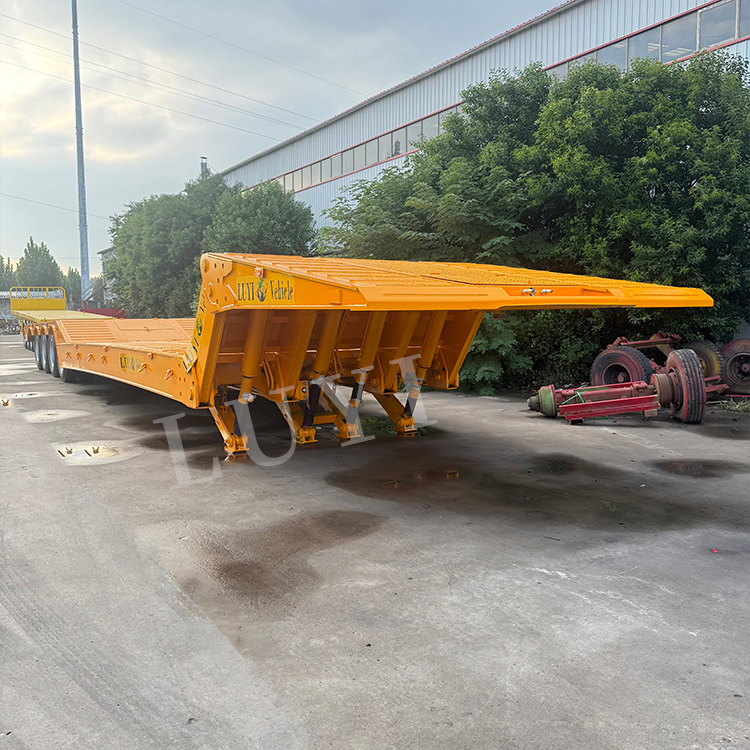

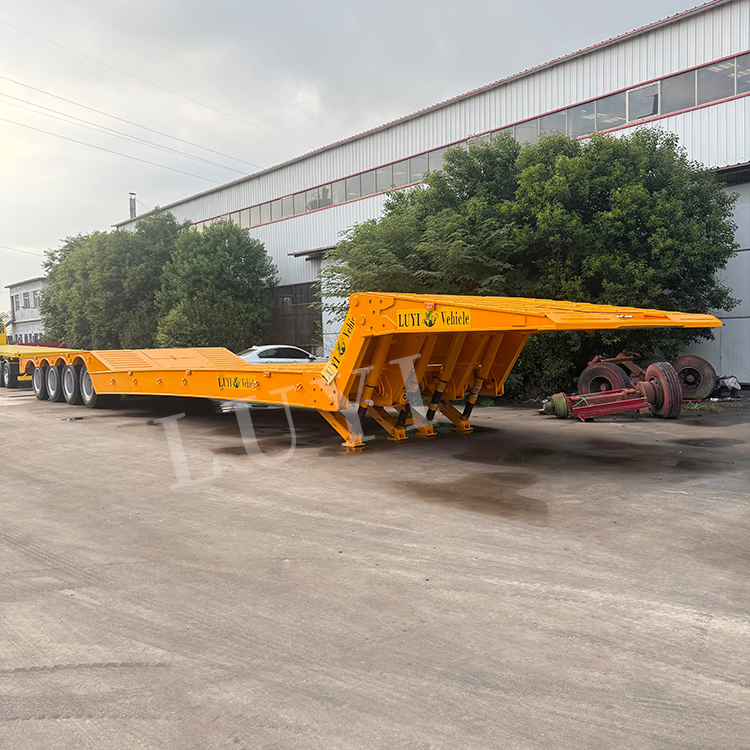

Gooseneck DesignHydraulic Folding Gooseneck (Self-Loading Capability)
Loading Surface5mm Checkered Plate with 20mm Square Bar on Ramps
Power System22-Horsepower Diesel Engine Set
Landing GearJOST Brand Landing Legs
Top AccessFolding Guardrail with Integrated Ladder
Structural BeamMain Beam: Upper 20mm, Lower 25mm, Middle (Double) 12mm; Side Beam: 500mm Height
Key FeatureLow Center of Gravity for Stable Transport
📸 Product Display

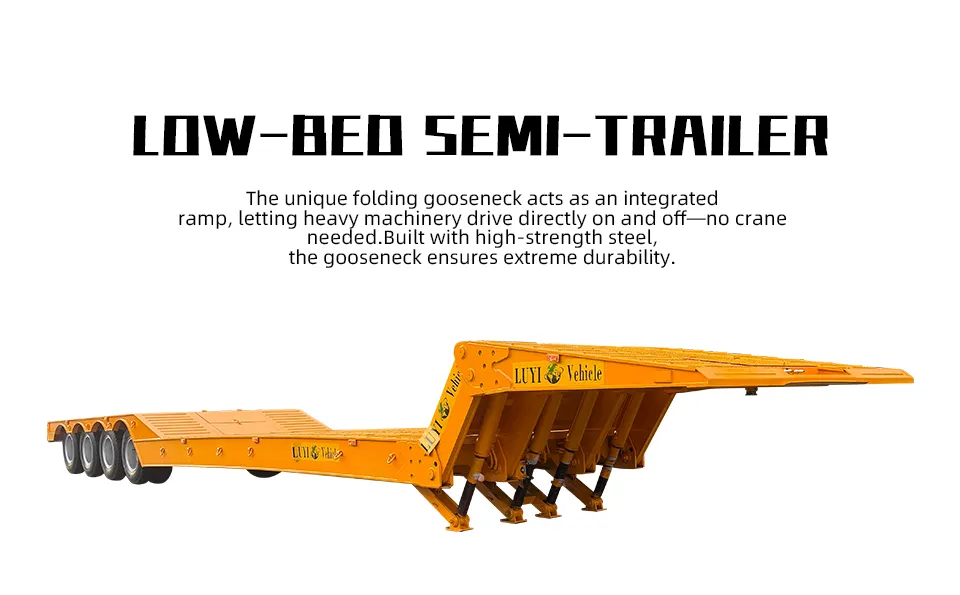

Low Bed Truck Trailer 1

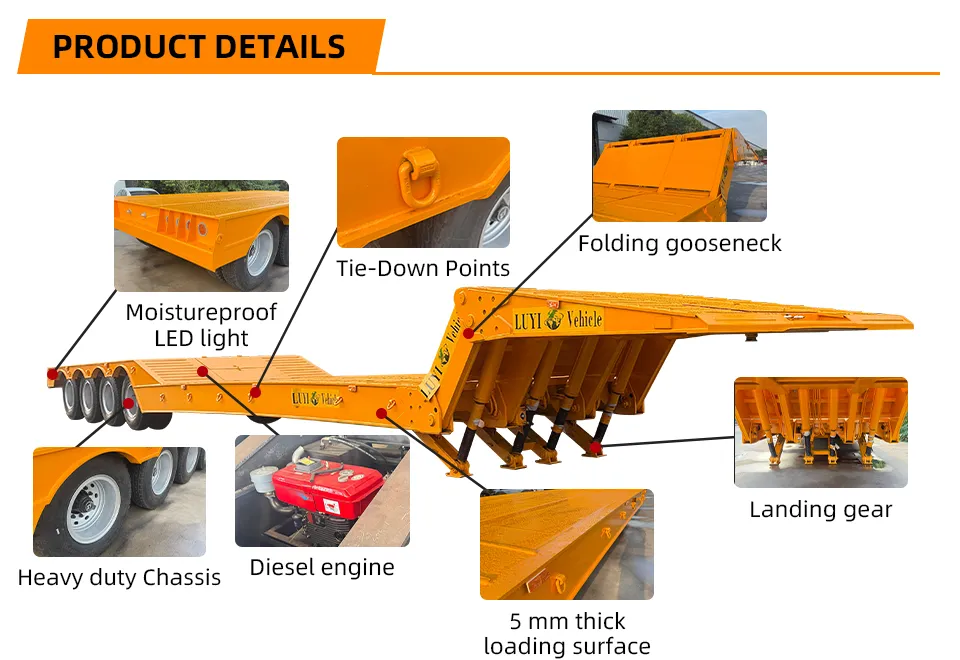

Low Bed Truck Trailer 2

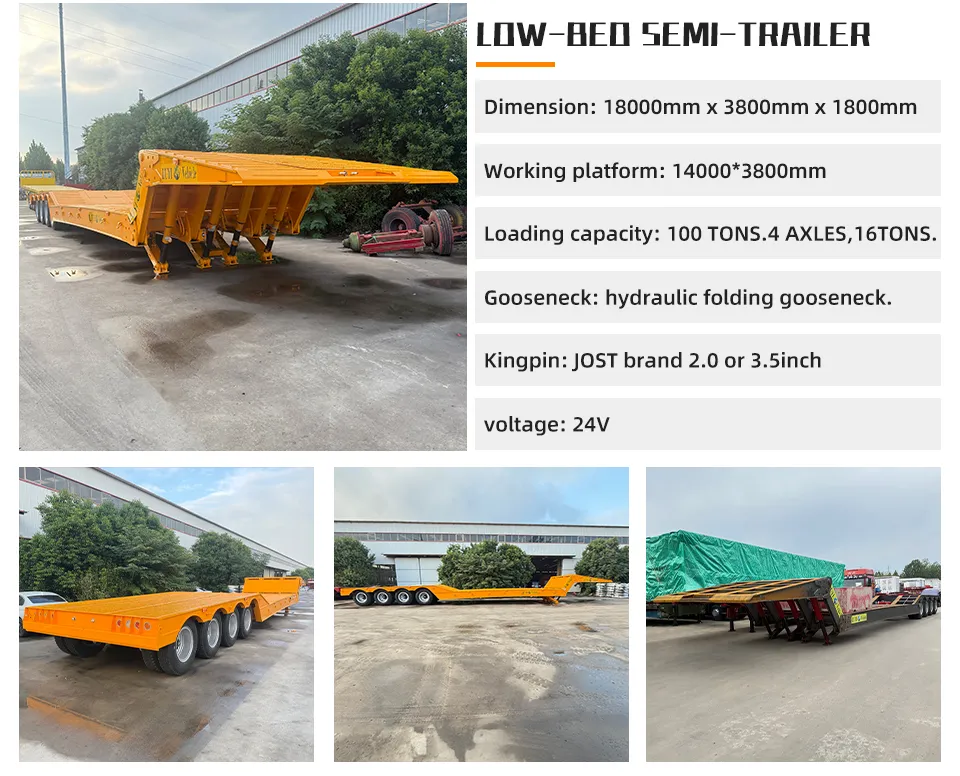

Low Bed Truck Trailer 3

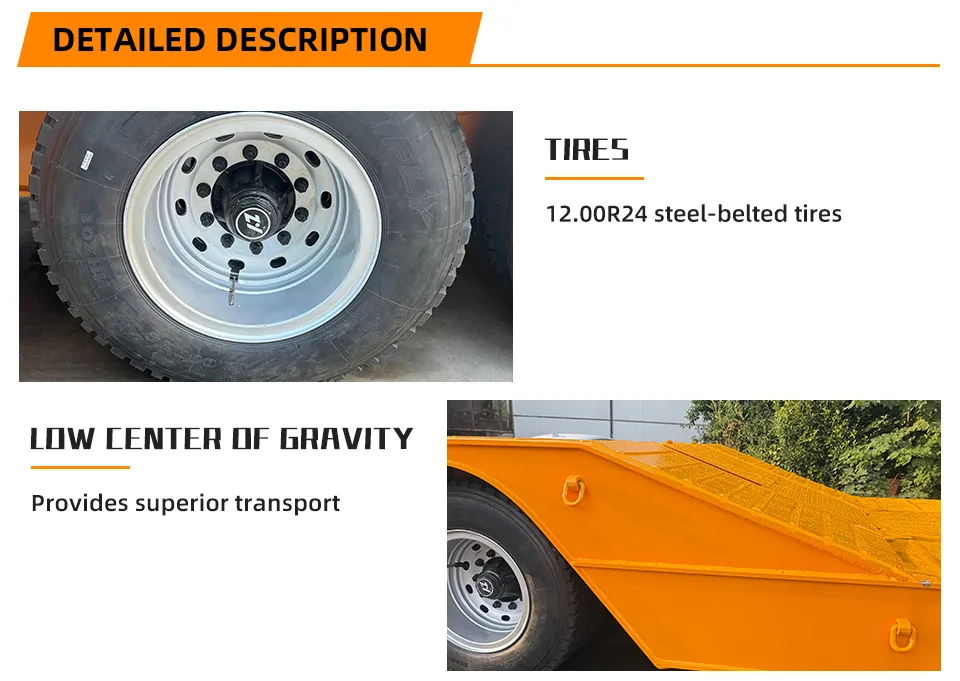

Low Bed Truck Trailer 4

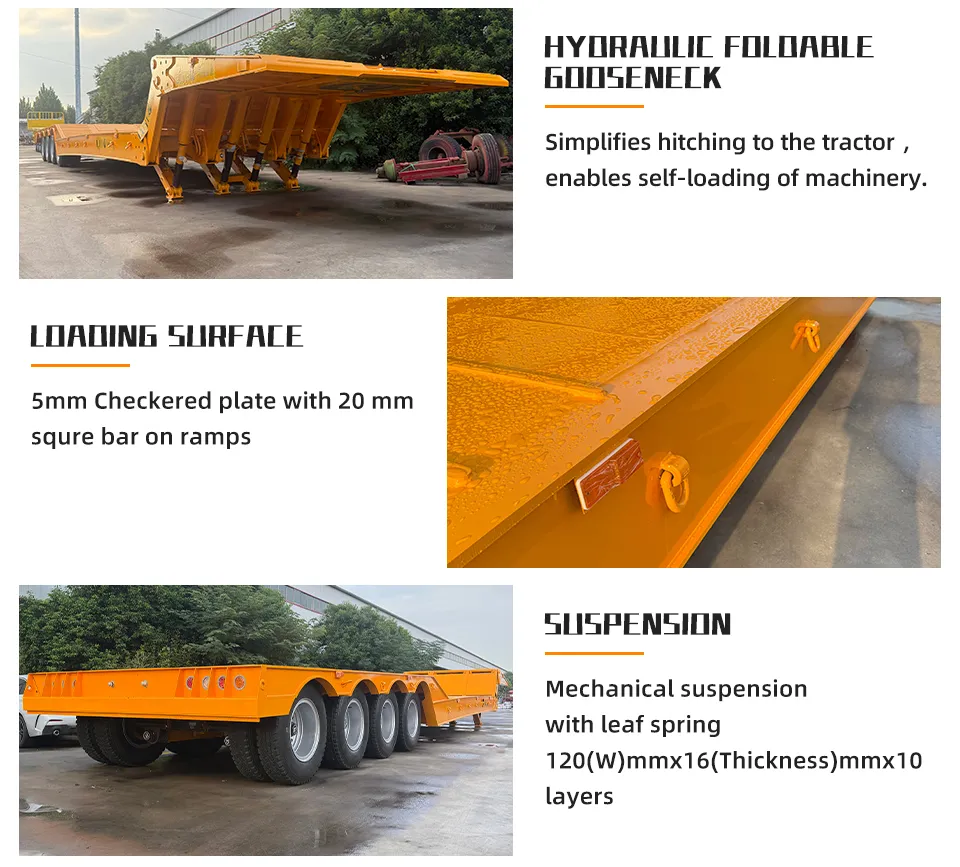

Low Bed Truck Trailer 5

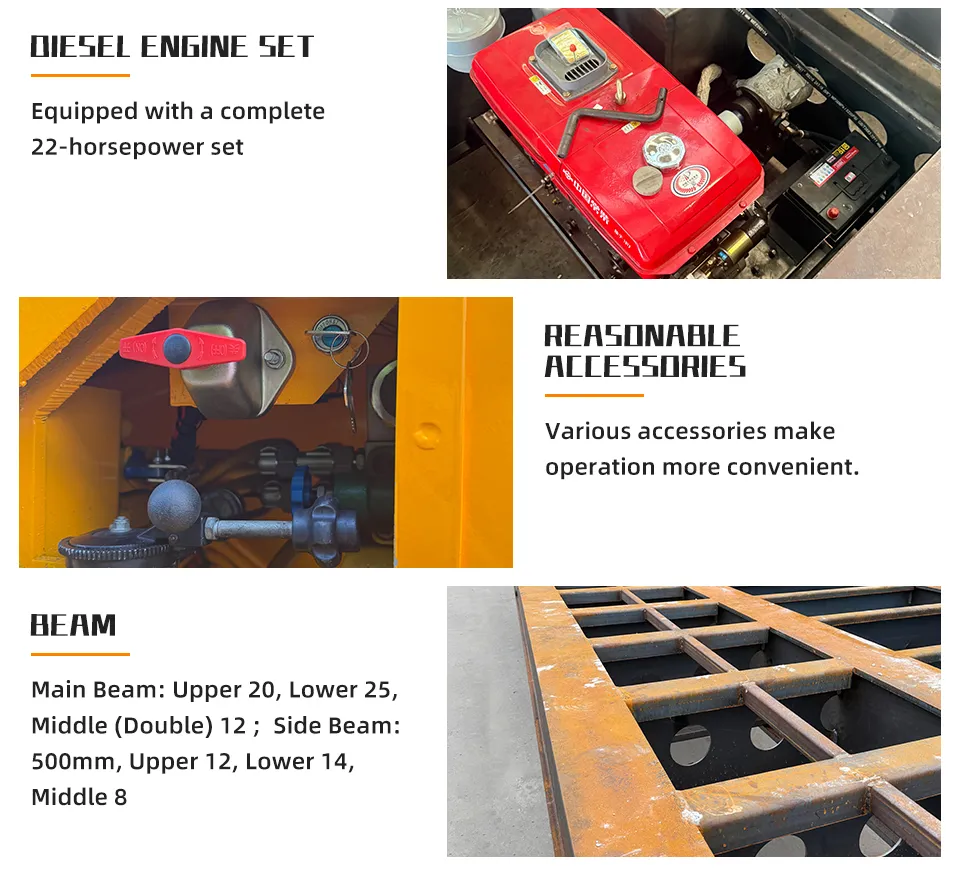

Low Bed Truck Trailer 6
❓ Frequently Asked Questions
What is the maximum load capacity of this lowbed trailer?
This heavy-duty lowbed semi-trailer is designed to carry up to 100 tons, supported by a reinforced 4-axle system.
What are the advantages of a hydraulic folding gooseneck?
The hydraulic folding gooseneck allows for self-loading capabilities, making it easier to transport large machinery by creating a front-loading ramp.
Does the trailer come with an ABS system?
Yes, it is equipped with an ABS Anti-lock Braking System to ensure safety and stability during transport.
What material is used for the main beam construction?
The trailer utilizes high-strength steel with a specialized main beam structure (Upper 20mm, Lower 25mm) for maximum durability.
Can the suspension system be customized?
The standard configuration includes air suspension or a 4-axle mechanical leaf spring suspension depending on specific transport requirements.
What is the tire specification for this model?
It uses high-performance 12.00R24 steel-belted tires designed for heavy-load endurance.
