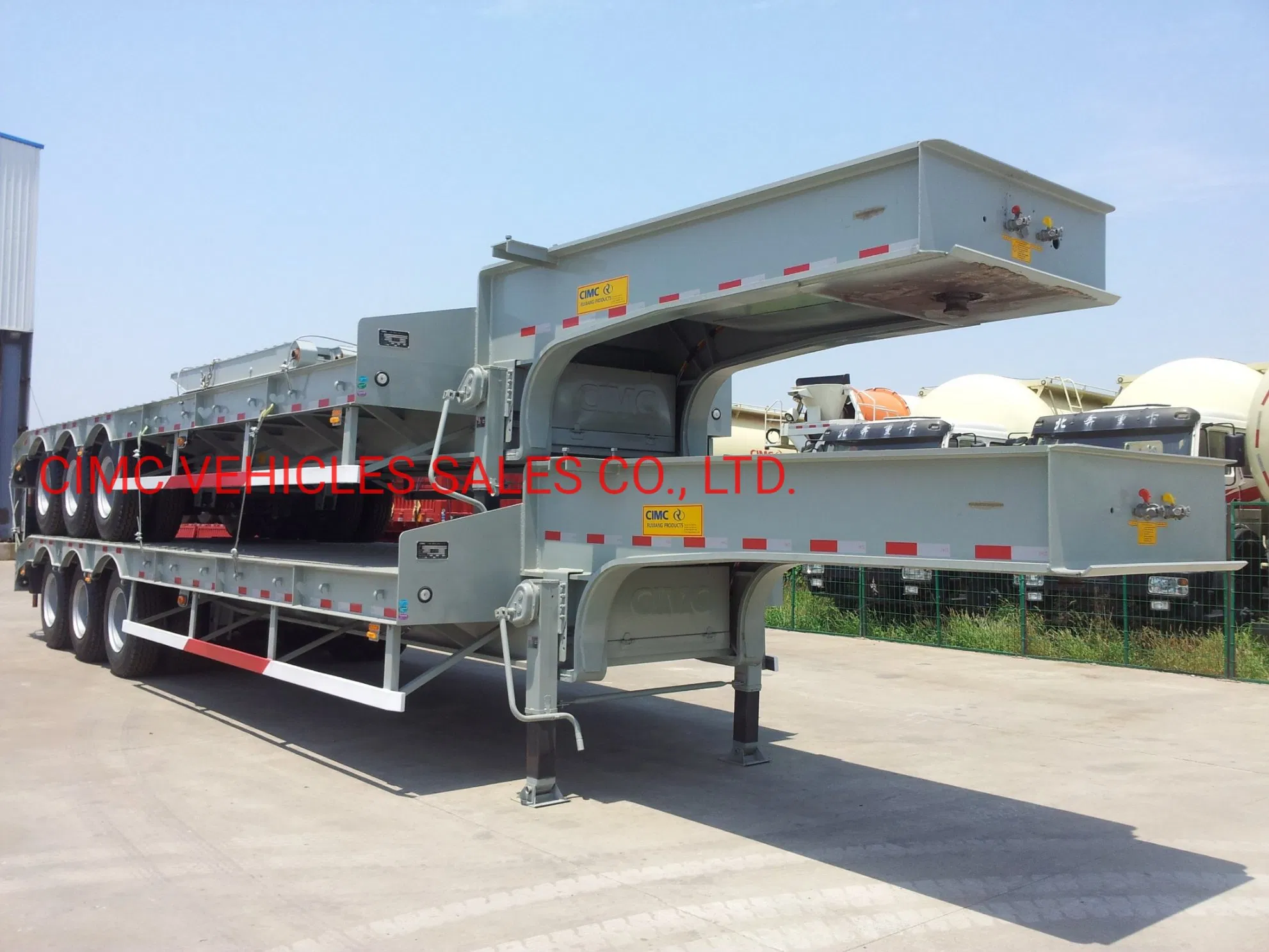

Brand New 3axle 70t Low Bed Semi-Trailers

Customization:	Available
Warranty:	12 Months
Type:	Semi-Trailer

Send Inquiry

Product Description

Basic Information

Model NO.

WL9400TDP

Load Capacity

30ton-100ton

Certification

ISO9001, CCC, ISO/TS16949

Wheel Base

8000-9000mm

Grade

Heavy Duty

Axle Number

Tire Number

Axle Brand

Fuwa or BPW Axle

Payload

50ton

Floor

4mm Checked Plate

Material

Iron

Condition

New

Product Description

All vehicles are customizable, welcome inquiry!
Overall size: 13000*3000*3180mm
Pay flat-bed dimension: 9,000*3,000mm

Weight Specifications:

Curb weight: 12000kgs
Loading capacity: 50000kgs
Overall weight: 62000kgs

Trailer Model	3 Axle Low Bed Trailer
Model Number	CIMC9400TDP
Total size (mm)	1300030001650
Working size (mm)	900030001300
Loading Weight (KG)	60000
Axle Brand	13TON Axle FUWA Brand
Suspension system	Leaf Spring Suspension
Main beam Material	Height 500mm, Upper 16mm, Down 18mm, Middle 10mm
Platform plate	5mm Diamond plate
Tire Type	11.00R20 12units radial tire
Brake system	Dual Line braking system

Product Configuration Details

• Axle: FUWA Square Axle, 13 ton capacity/set, 3 pcs
• Tire: 8.25R20-14PR, 12pcs
• Rim: 6.5-20, 12pcs
• "I" Beam: 550, 25/30/14
• Suspension: Spring suspension, leaf spring 8*16*90mm
• Kingpin (welded): 3.5'
• Landing gear: Two speed manual operation type with sand shoe
• Brake system: Dual line pneumatic brake system. WABCO brake valve
• Electric system: 24V, 7 pin cable Chinese national standard

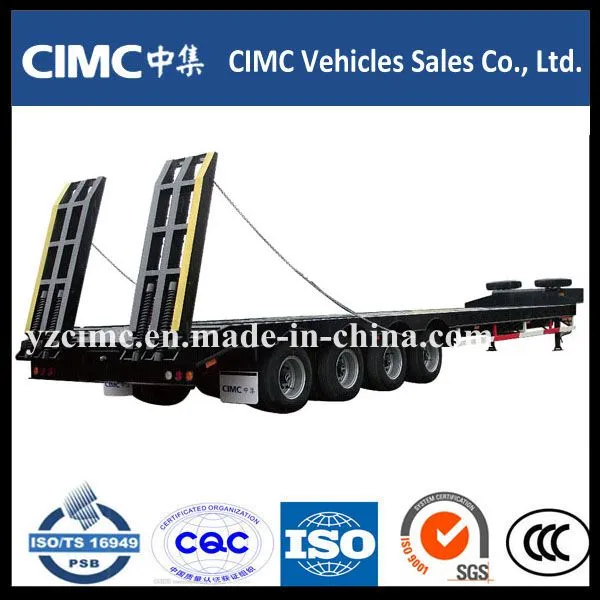

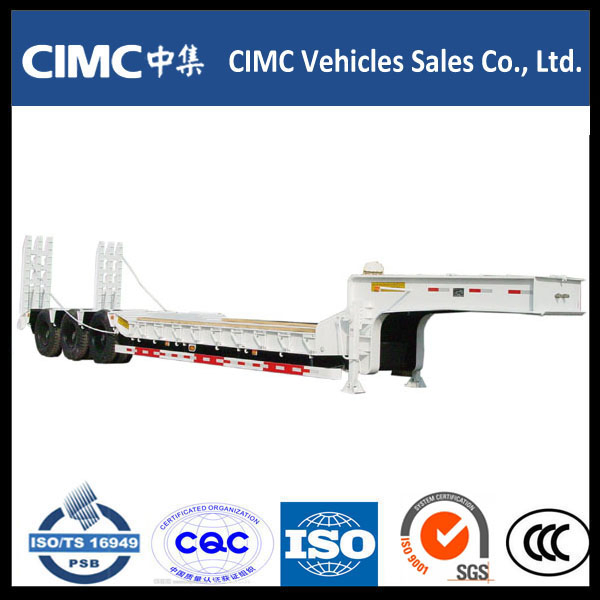

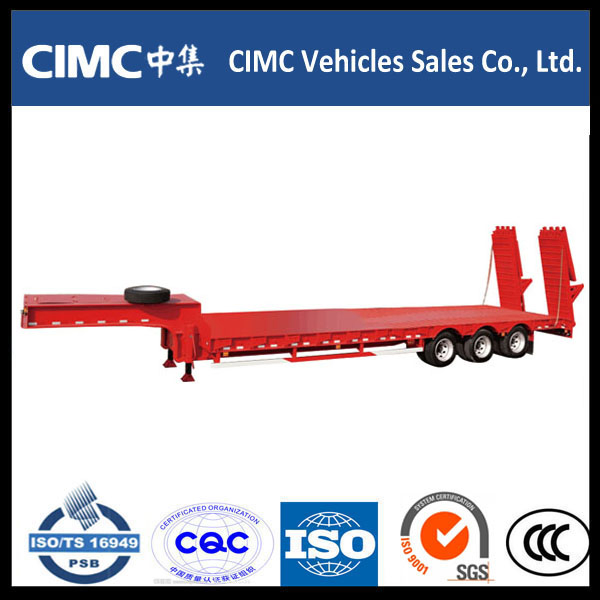

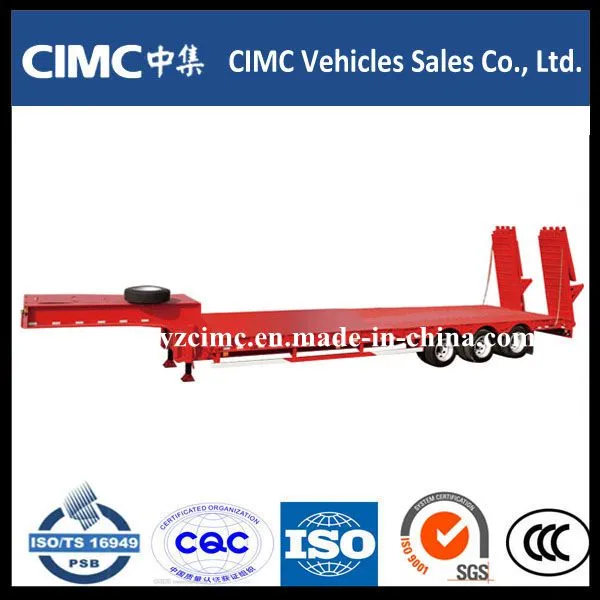

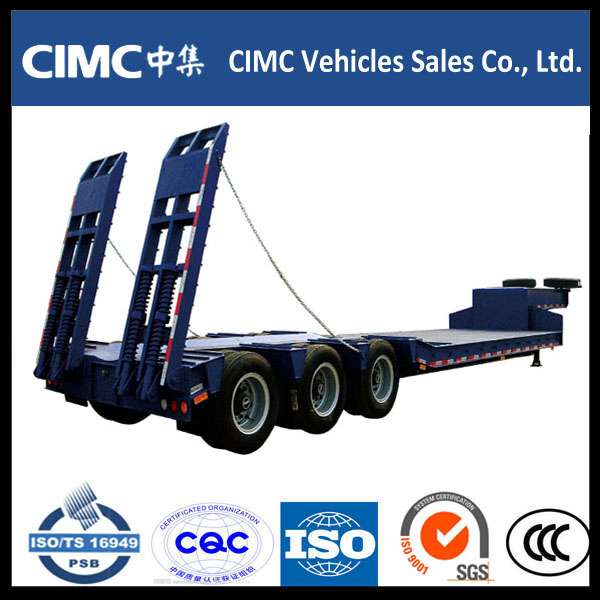

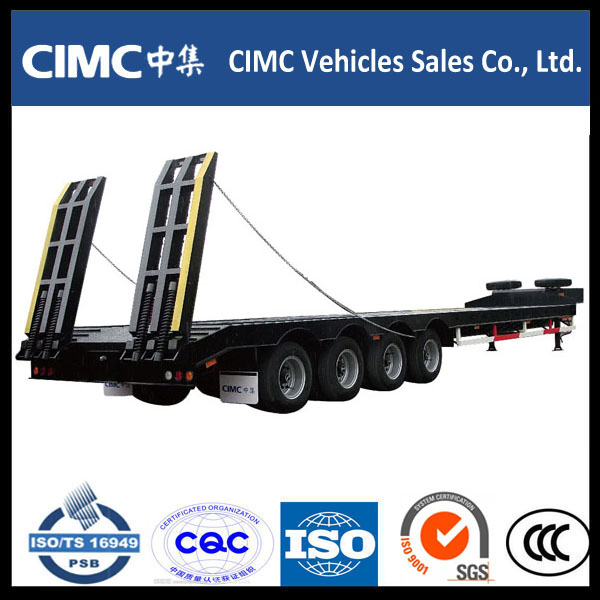

Product Photos

Frequently Asked Questions

What is the maximum load capacity of this low bed trailer?

The trailer is designed for heavy-duty transport with a loading capacity ranging from 30 tons up to 100 tons, specifically configured for 50-60 ton payloads in standard setups.

What brands of axles and parts are used?

We use high-quality components including FUWA or BPW axles, JOST landing gear and kingpins, and WABCO brake valves to ensure durability and safety.

Can the trailer specifications be customized?

Yes, all vehicles are fully customizable. Dimensions, loading capacity, painting color, and specific component brands can be adjusted according to customer requirements.

What material is used for the trailer floor and structure?

The floor is made of 4mm or 5mm checked/diamond plate iron. The main "I" beam is constructed from high-strength steel with specific thickness reinforcements (e.g., 25/30/14mm).

What braking and electrical systems are installed?

The trailer features a dual-line pneumatic braking system with a 30/30 spring brake chamber. The electrical system is 24V with a 7-pin cable following national standards.

What certifications do these trailers hold?

Our manufacturing processes and products are certified under ISO9001, CCC, and ISO/TS16949 standards, ensuring international quality compliance.
