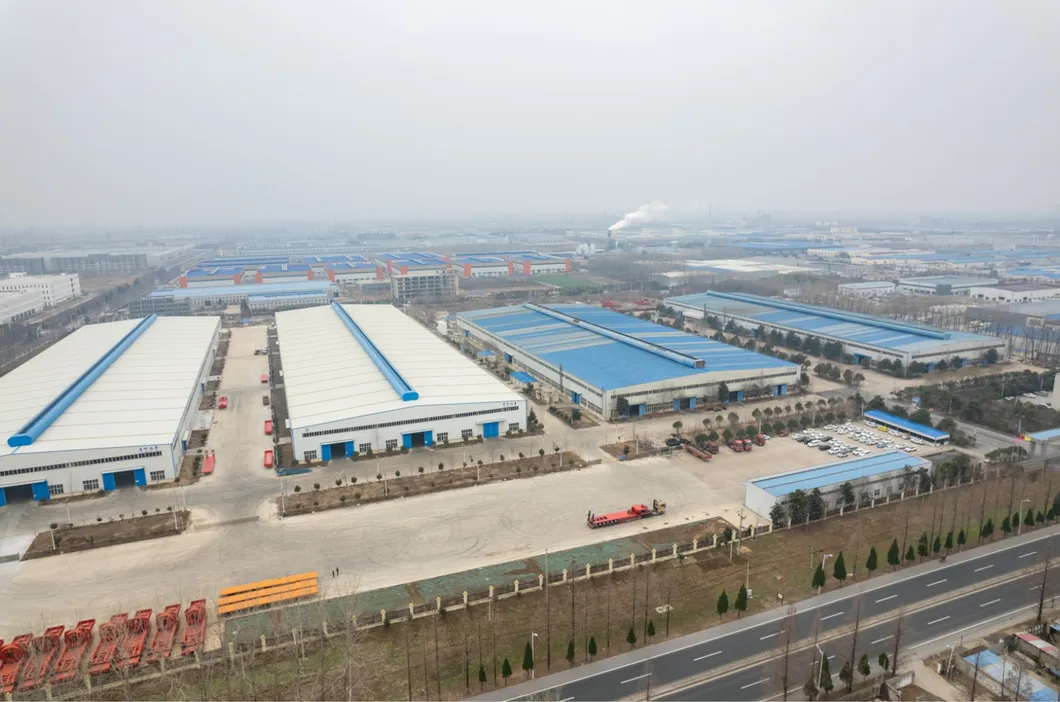

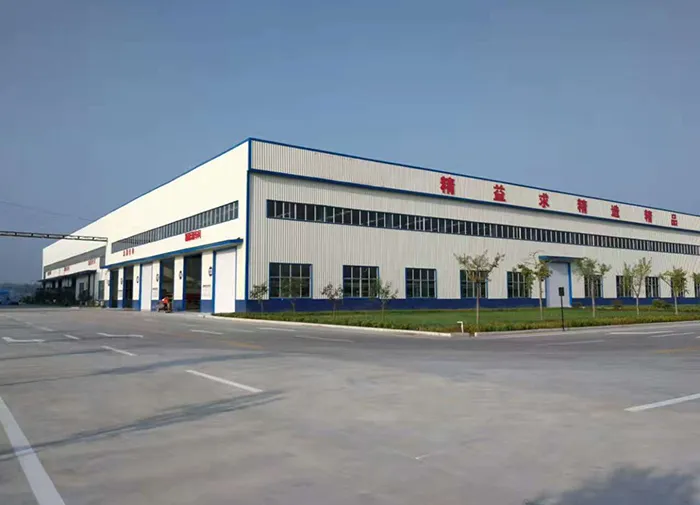

A well-known manufacturer and exporter of special truck semi-trailers, established in 2001. With over 22 years of technical accumulation and experience in manufacturing 82,000 semi-trailers, we have become a premier provider for heavy-duty transport solutions.

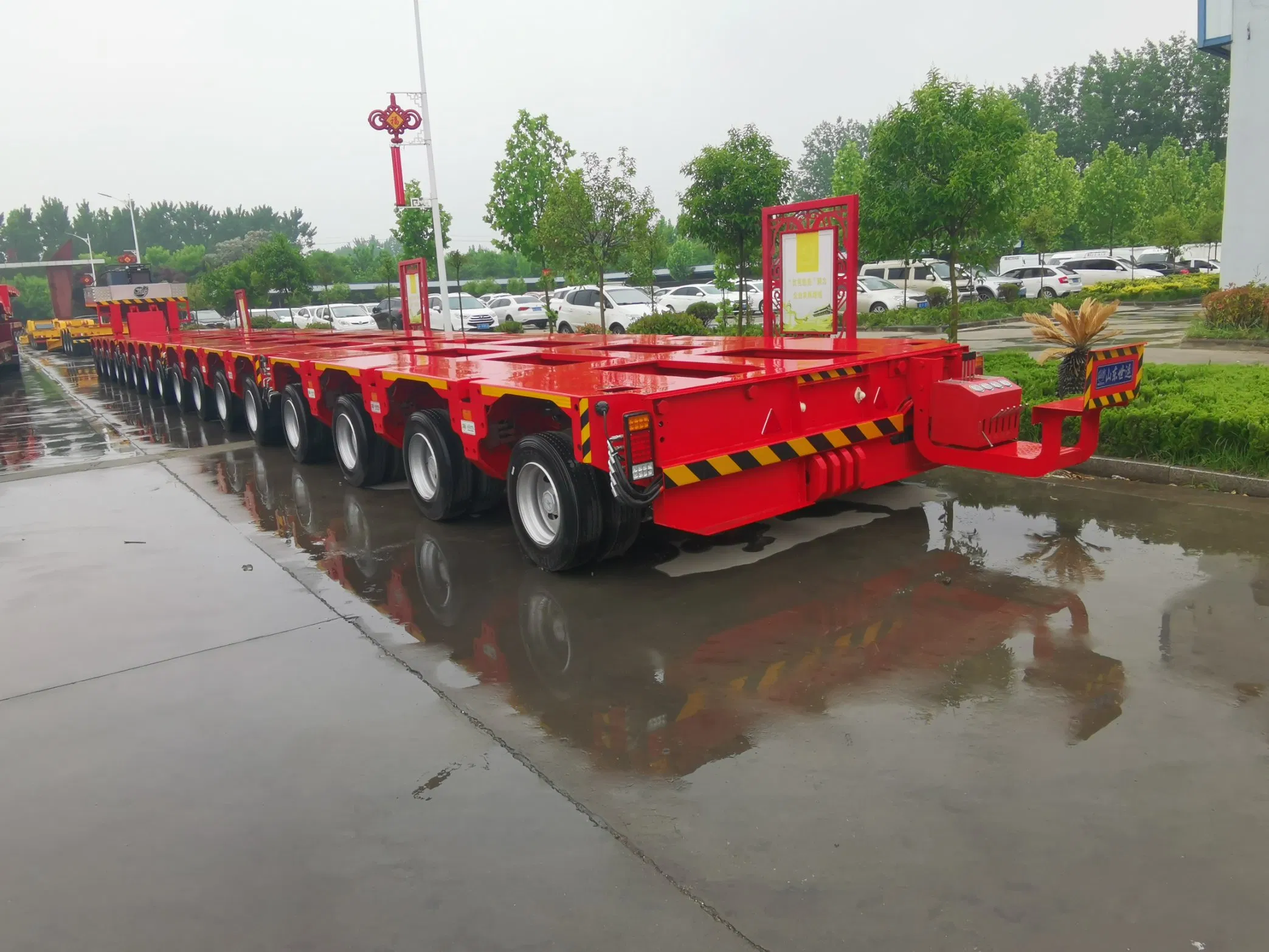

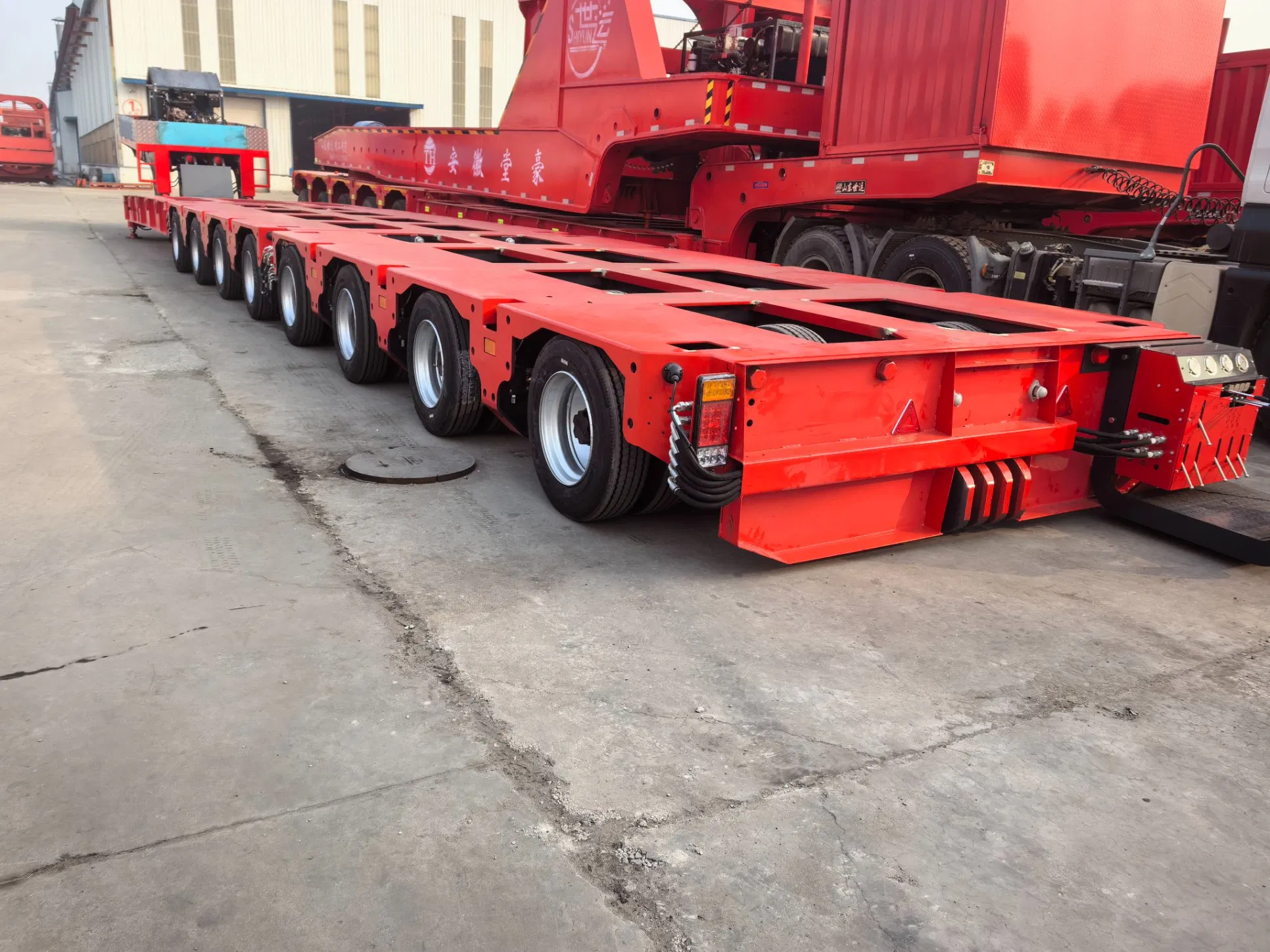

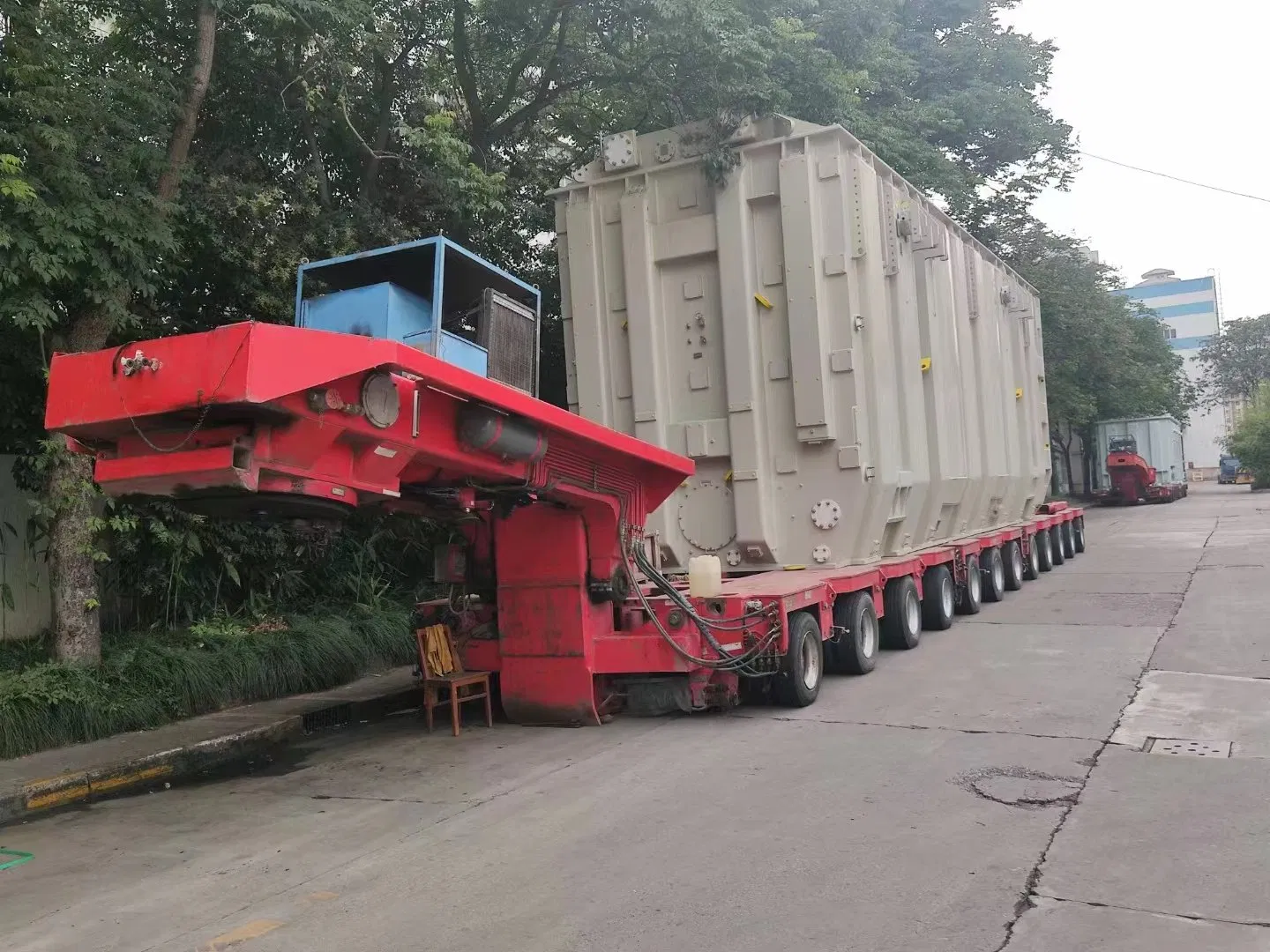

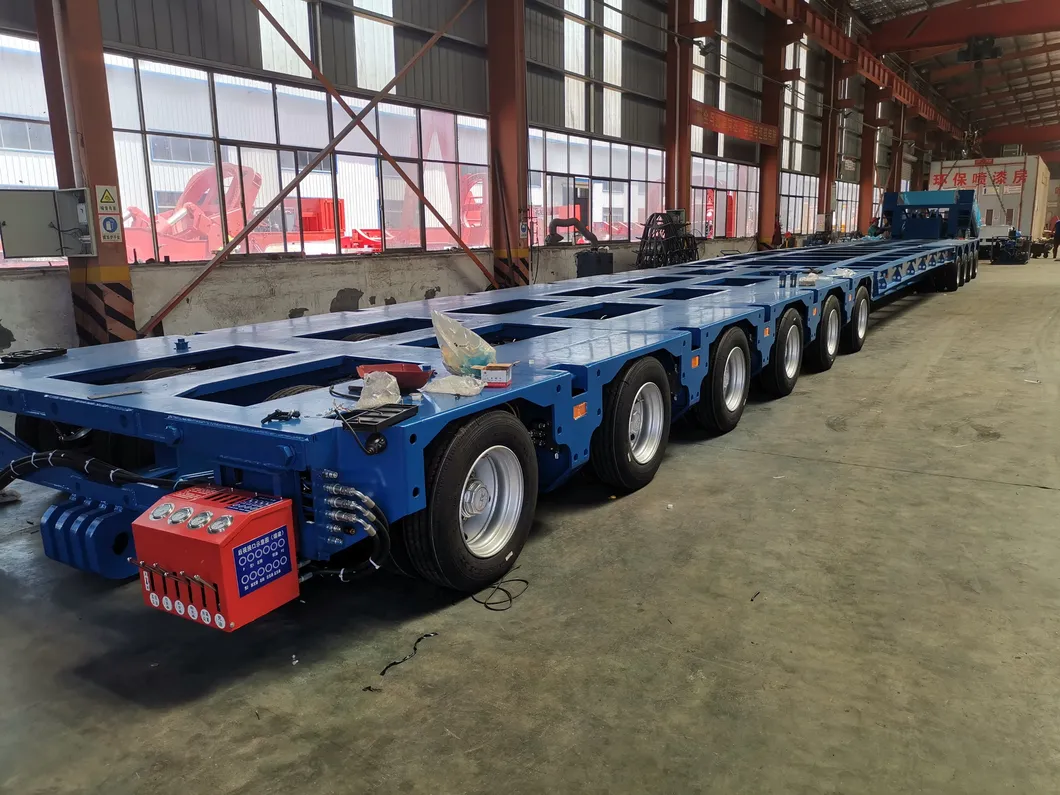

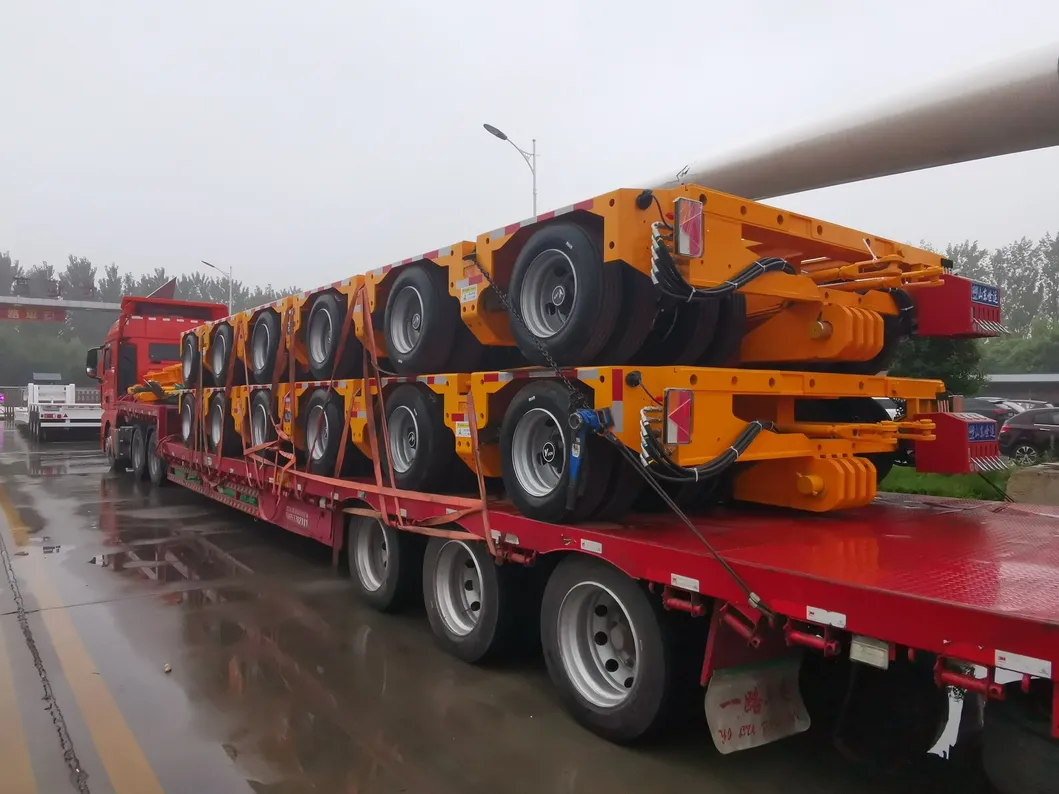

The 12-axis hydraulic steering modular trailer is a specially designed unit featuring 12 axes and a sophisticated hydraulic steering system to achieve superior controllability and maneuverability.
The hydraulic steering system allows each wheel of the trailer to be steered independently. This design provides better handling, making it easier to turn and adjust direction on narrow roads or complex terrains. The system can be adjusted to accommodate different turning radii and steering flexibility requirements.
| Dimensions | 22500mm * 3000mm * 1080±280mm |
| Loading Capacity | 300 Tons Max |
| Axle Configuration | 12 lines / 24 axles |
| Max Rotation Angle | ±45° |
| Hydraulic Station | 40KW Four-cylinder Diesel Engine |
| Lifting Cylinder Dia. | 320mm |
| Full Load Speed | 216 tons at 60 mph; 300 tons max 20 mph |
Note: The HBG1 hydraulic trailer is designed based on German Goldhofer TPH/SL technology and can seamlessly dock with Goldhofer models in both longitudinal and transverse directions.

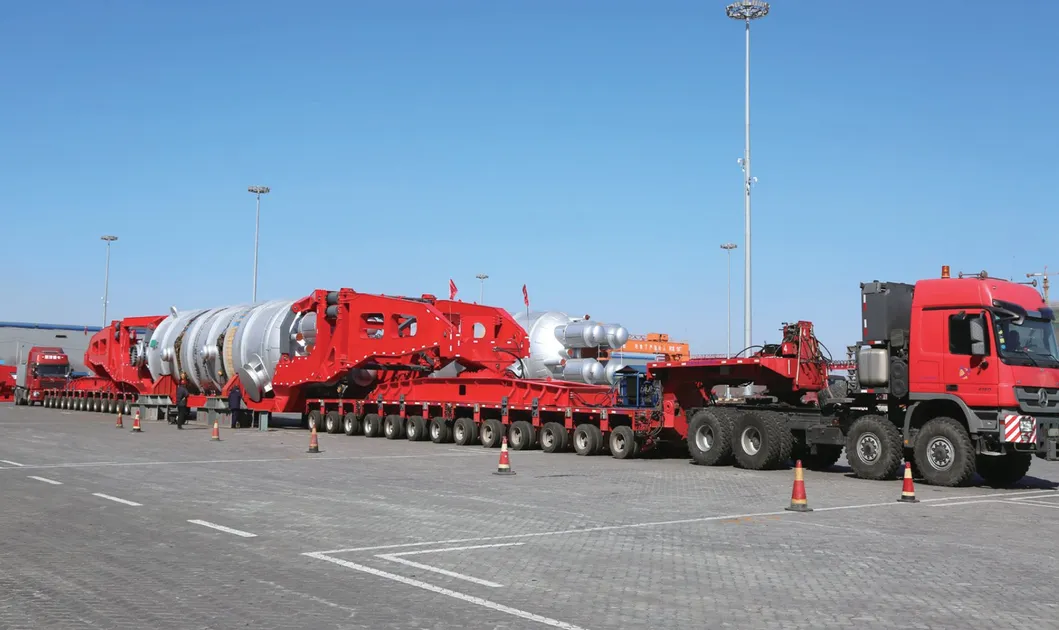

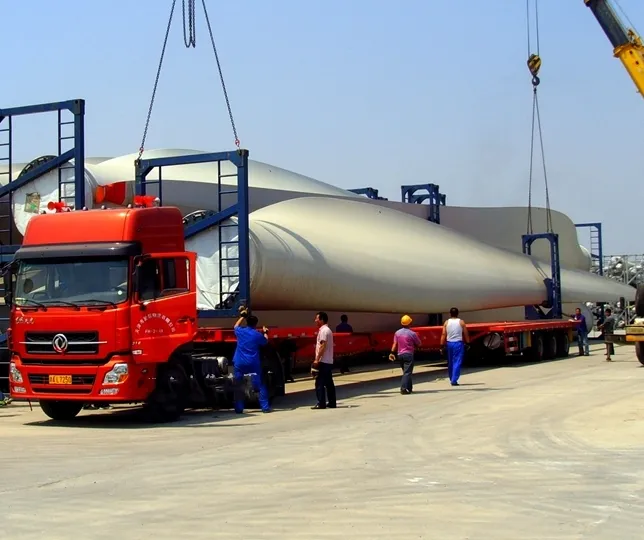

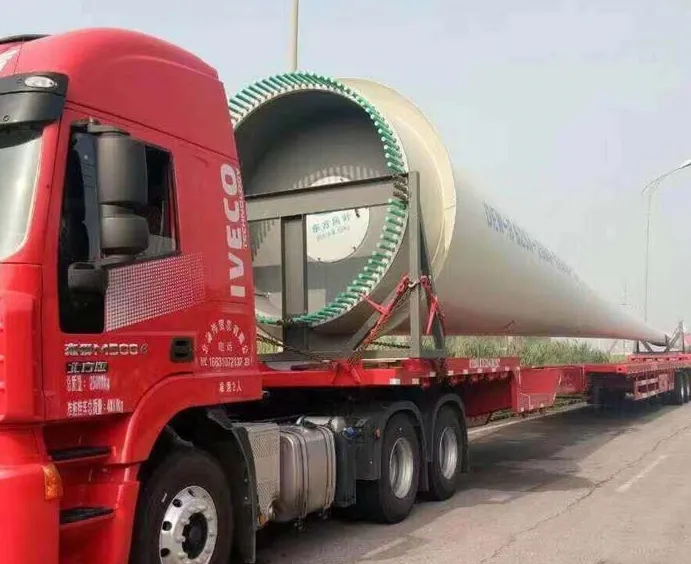

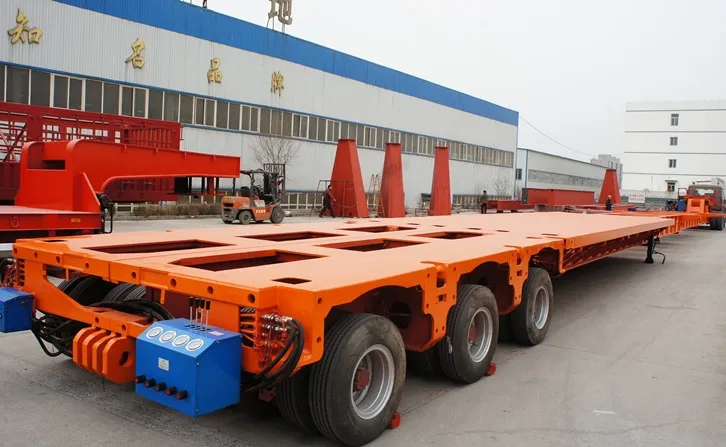

Hydraulic, air, and mechanical suspension options are available. The hydraulic windmill blade extendable telescopic beam can adapt to different weights, providing a bigger steering angle and wider lifting stroke.

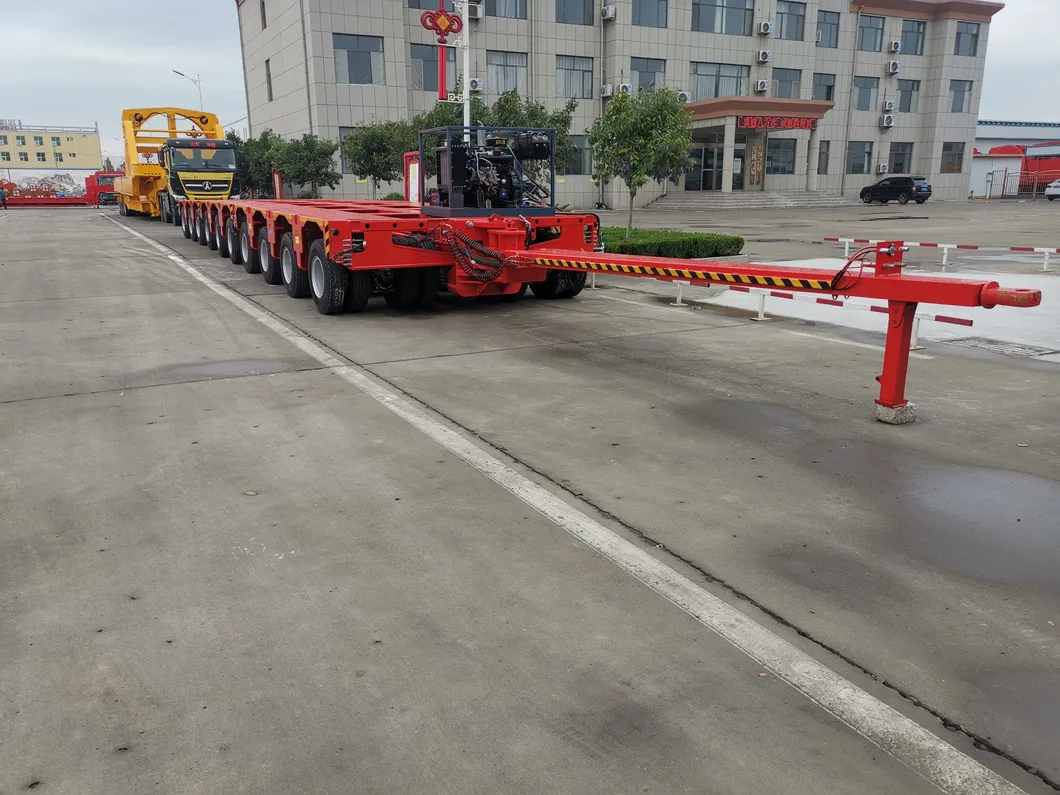

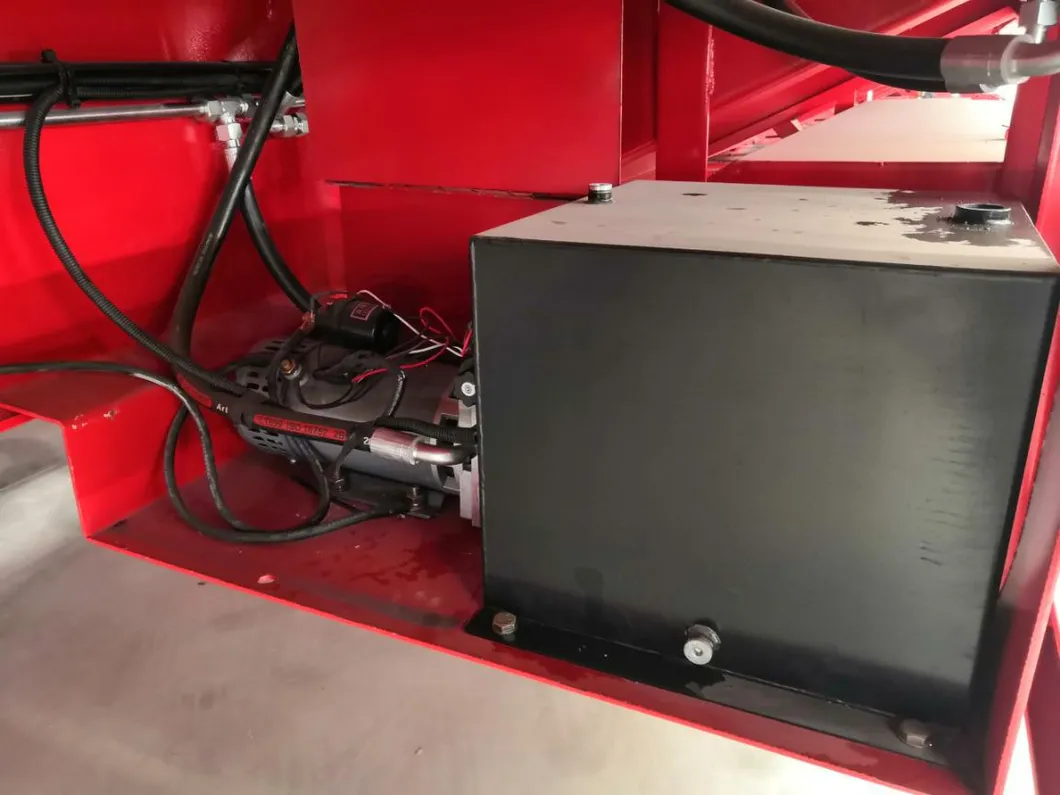

A 2.5KW power pack system assists in easy steering. The wireless remote control panel allows operators to steer the trailer safely and conveniently, especially in mountainous regions.
