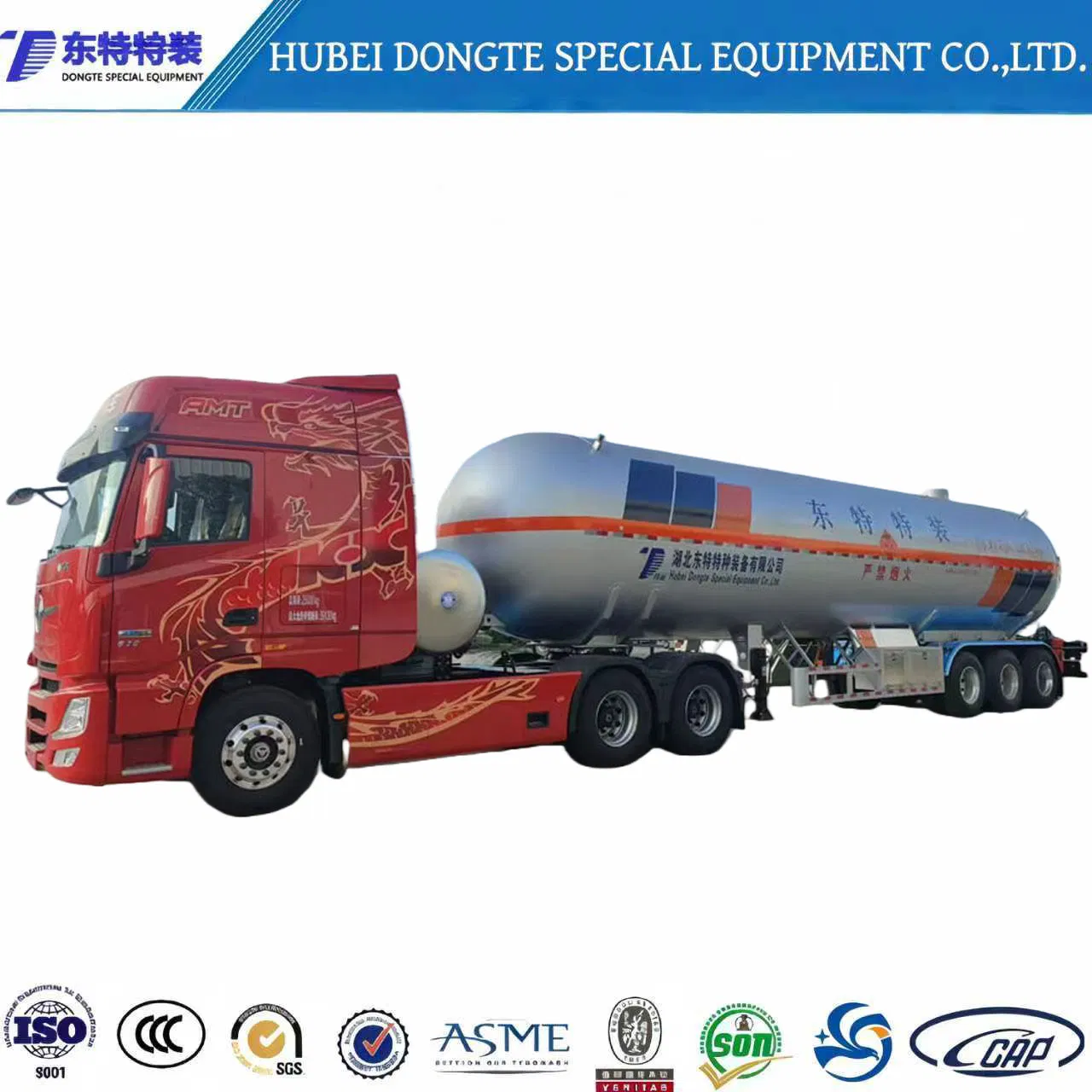

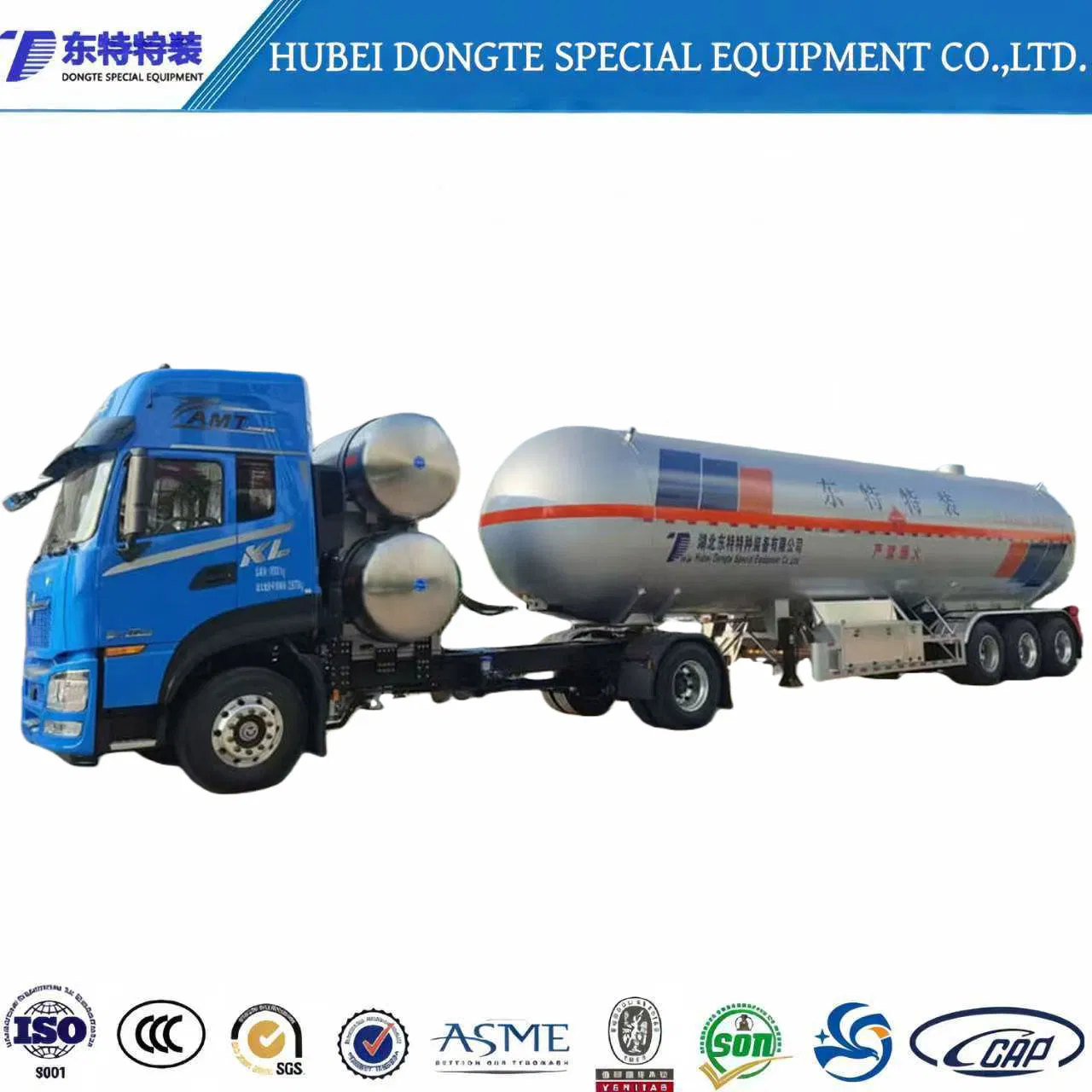

30-Ton 60000 Liters 3-Axle LNG Semi-Trailer LPG Gas Tanker for Gas Transportation Purposes Trailer

1 / 5

30-Ton 60000 Liters 3-Axle LNG Semi-Trailer LPG Gas Tanker for Gas Transportation Purposes Trailer

Customization:	Available
After-sales Service:	24 Hours Online Service
Warranty:	1 Year

Send Inquiry

Product Description

Basic Product Information

Model NO.

DTA9402GYQA

Function

Storage/Transportation Pressure Vessel

Application

Liquefied Gas / LPG

Material

High-Strength Alloy (Q345R)

Pressure Level

Low Pressure (0.1MPa≤p<1.6MPa)

Product Name

Liquefied Gas Transport Semi-Trailer

Safety Valve

Built-in Full-Lift Spring Safety Valve

Nominal Pressure

2.5 Mpag

Filling Capacity

550 Kg/M³

Nominal Diameter

Gas DN25, Liquid DN50

Specification

13590×2540×3990 mm

Production Capacity

50,000 units/Year

Product Description

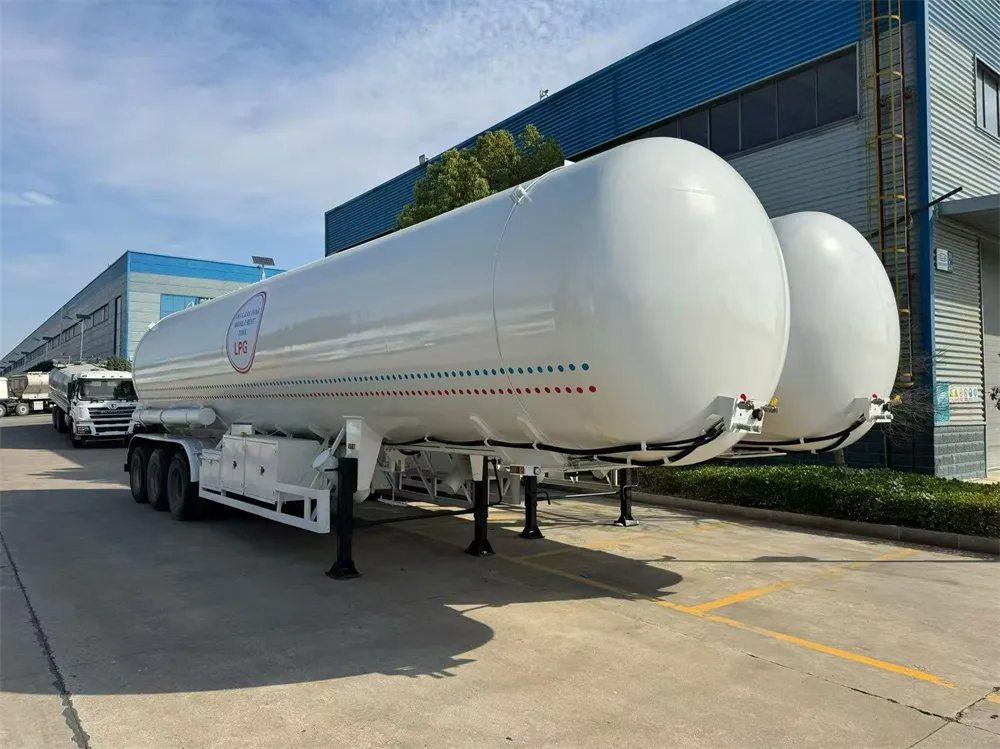

30-Ton 60,000 Liters 3-Axle LNG/LPG Gas Tanker Semi-Trailer

Available with ASME standard certification
100% new condition directly from manufacturer
100% quality guaranteed with rigorous testing

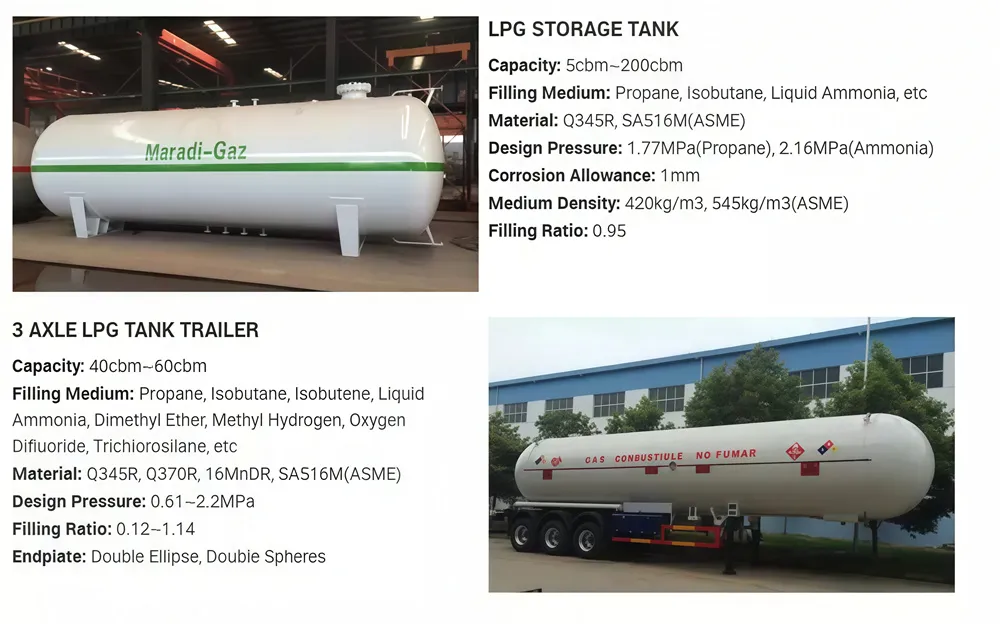

Technical Parameters

LPG/LPN Tank Semi Trailer Specifications
Filling Gas	LPG (Propane)	Design Specific Gravity	0.42 Kg/L
Capacity	25 M³	Dimensions	13600 x 2550 x 3950 mm
Tank Material	Q345R	Tank Thickness	12mm / 14mm End
Design Pressure	1.77 MPa	Test Pressure	2.22 MPa
Working Temp	-20 ~ 50 ℃	Corrosion Allowance	1.0 mm

ASME Standard Series

Capacity	Diameter x Length	Tank Weight	Payload	Thickness (Shell/Head)
20m³	φ2200 × 5690mm	6920kg	9260kg	14.86mm / 14.78mm
50m³	φ2470 × 10911mm	15420kg	25470kg	16.56mm / 16.47mm
100m³	φ3100 × 13858mm	27430kg	46320kg	20.53mm / 20.41mm

Industrial Manufacturing Excellence

With over 30 years of experience in design and fabrication, our facility supplies high-performance pressure vessels complying with international standards. We utilize components from world-renowned brands such as REGO, FISHER, WIKA, and CORKEN to ensure maximum reliability and safety.

Key Advantages

Advanced R&D: Over 120 patents and continuous technical collaboration with leading universities.
Expert Team: Staffed by over 330 technical professionals and senior engineers.
Massive Capacity: Equipped with over 2,000 sets of advanced machinery including welding robots and plasma cutters.
Strict Quality Control: 111 control points and 243 procedures to ensure weld integrity and safety.

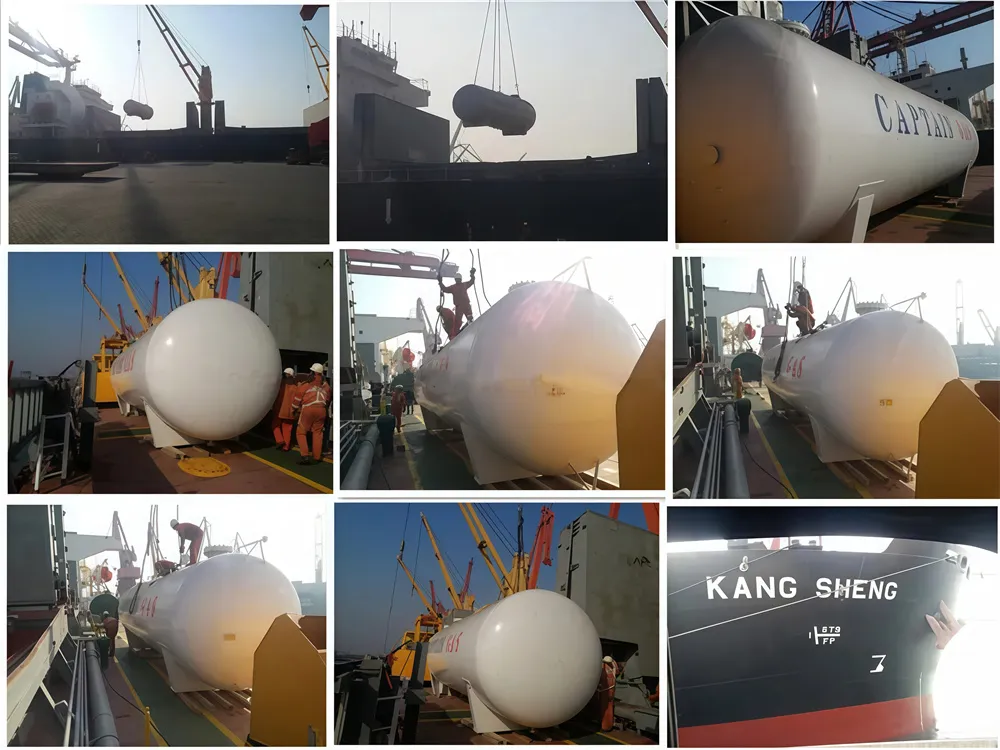

Packaging & Shipping

Standard bare bag transport or customized shipping solutions based on international logistics requirements.

Frequently Asked Questions

1. What design codes do your gas tankers comply with?

Our tanks are designed and fabricated according to ASME BPVC VIII-1/VIII-2, EN 12493, and GB/T 19905 standards to ensure global compliance and safety.

2. What materials are used for the construction of the LPG tanks?

We use high-grade pressure vessel steels such as Q345R, SA-516, SA-517, and P460, selected for their superior durability and pressure resistance.

3. What is the typical design life expectancy of these trailers?

With proper maintenance and adherence to operating conditions, our storage tanks and semi-trailers have a design life expectancy of 20 years.

4. Can the tankers handle different types of liquefied gases?

Yes, we provide specialized solutions for Liquefied Petroleum Gas (Propane), LNG, and other flammable or toxic pressure-stored media.

5. How is the quality of the welding joints guaranteed?

We perform 100% NDT (Non-Destructive Testing) including radiographic inspection. Each product maintains a quality file for over 20 years for full traceability.

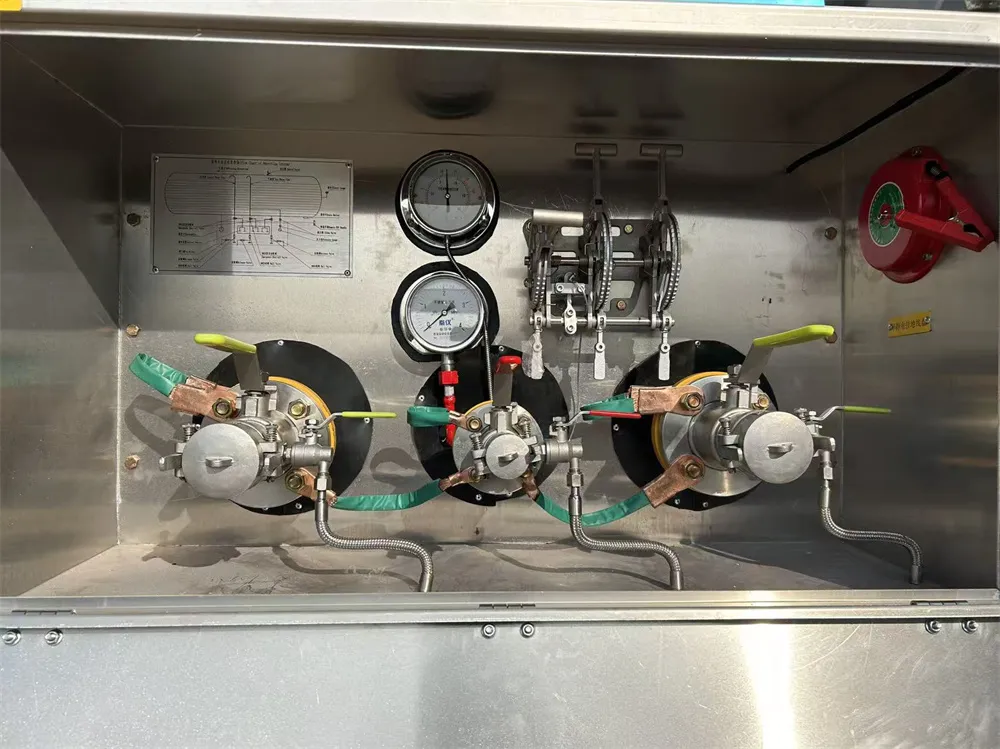

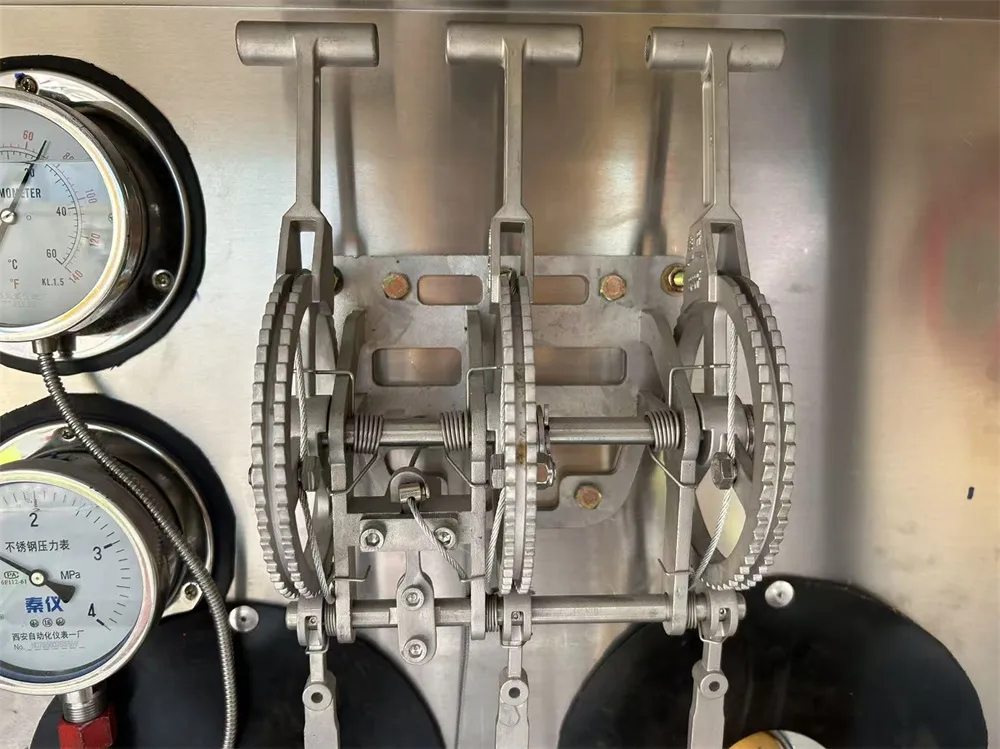

6. What safety accessories are included with the semi-trailers?

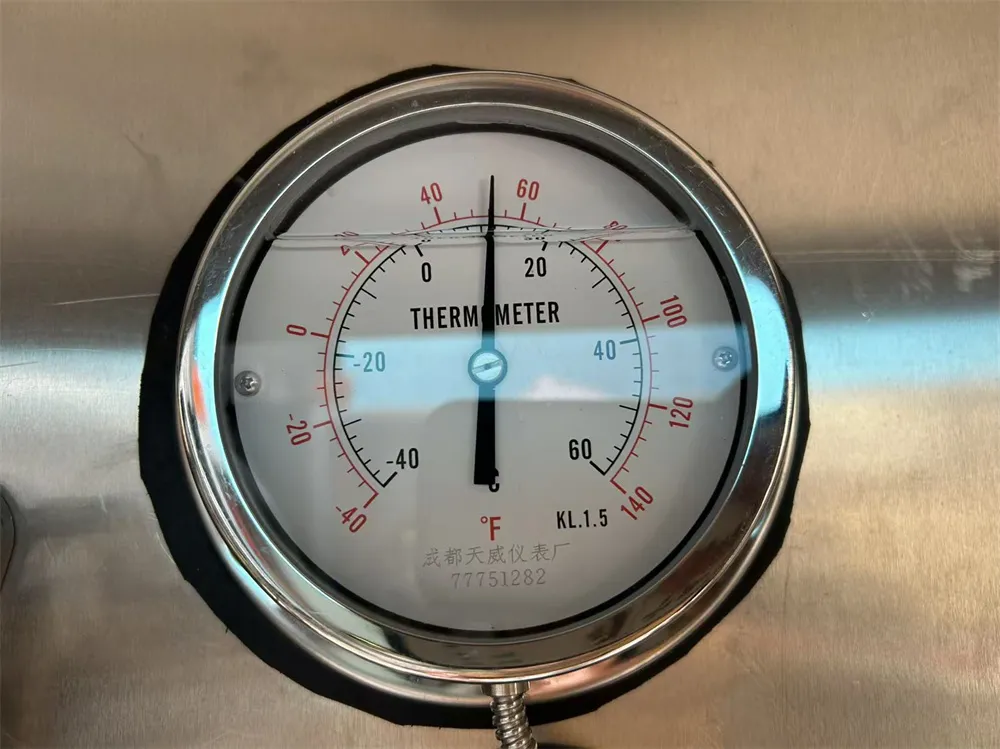

Our trailers come equipped with built-in full-lift spring safety valves, magnetic level gauges, emergency shut-off valves, and high-precision temperature/pressure gauges.
