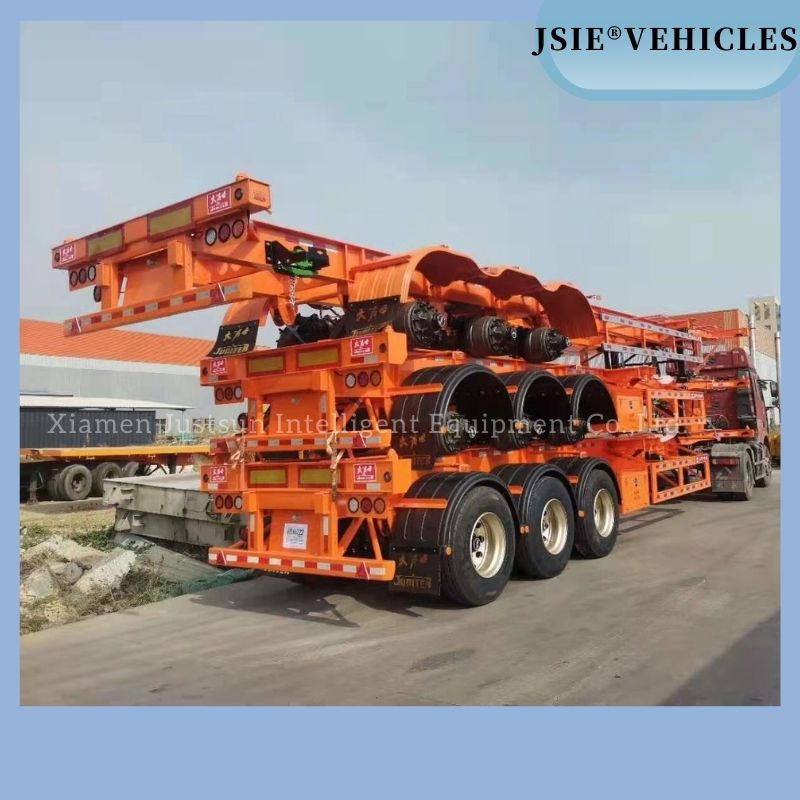

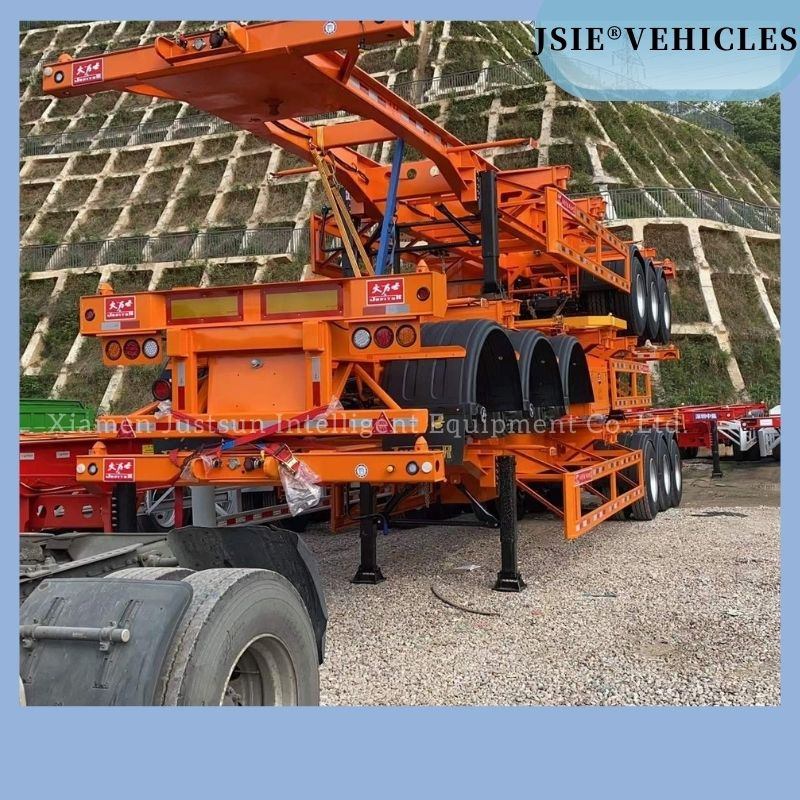

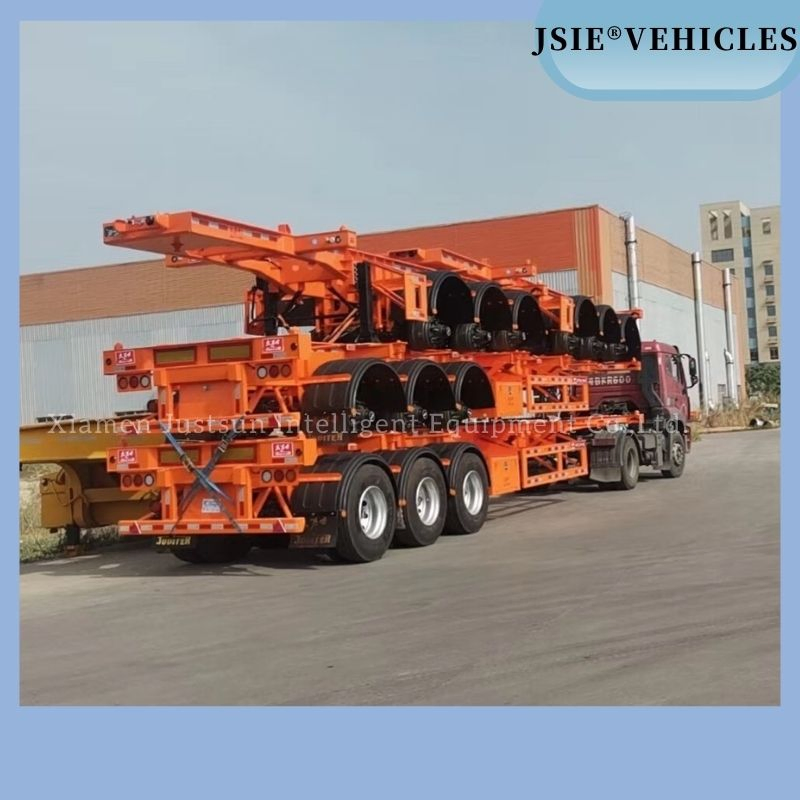

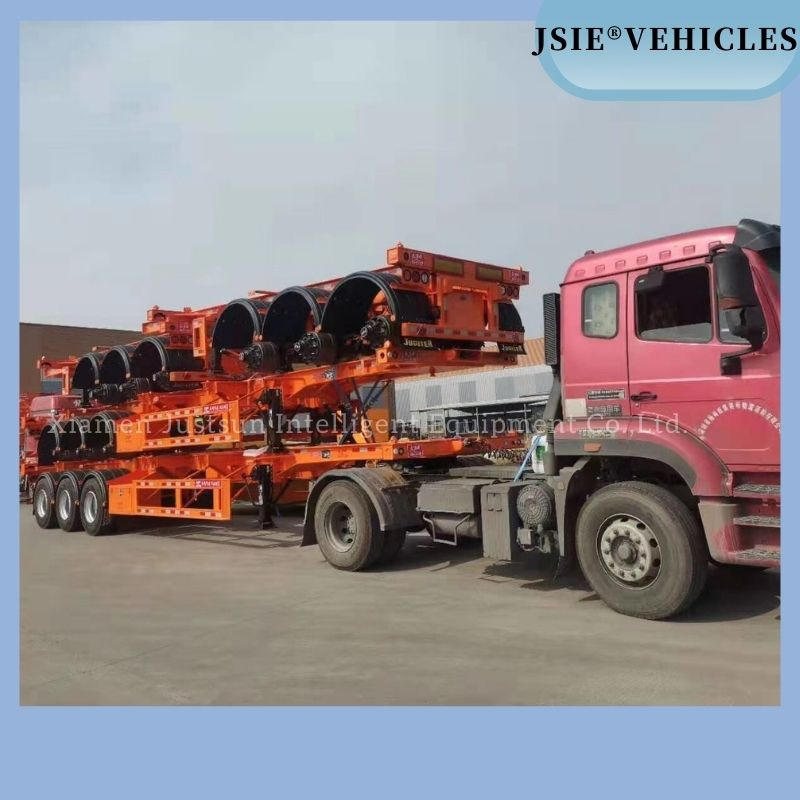

3 Axles Heavy Duty Customized Skeleton Semi Truck Trailer

1 / 5

3 Axles Heavy Duty Customized Skeleton Semi Truck Trailer

After-sales Service:	6 Months Warranty of Spare Parts
Warranty:	6 Months Warranty of Spare Parts
Type:	Semi-Trailer

Send Inquiry

Product Description

📋 Overview - Basic Info

Load Capacity

50T

Wheel Base

8500 mm + 1310 mm + 1310 mm

Grade

Heavy Duty

Shape

Skeleton

Axle Number

Tire Number

12+1spare

Material

Steel

Condition

New

⚙ Technical Specification

Feature	Carry 1X20FT, 1X40FT, or 2X20FT container
Dimension(LWH)	1395024801540mm
Main Frame	Heavy duty and extra durability design; High tensible low carbon alloy Q345B steel
Axle	Original BPW-12T / FUWA-13T
Kingpin	JOST brand bolt-in/welded type 3.5"/2"
Brake System	Dual line with WABCO brand Re-6 emergency relay valve
Container Locks	12 units (suitable for 1x20GP, 2X20GP, 1X40HQ)

🚚 Product Description

We can build the trailers according to customer's design and requirement. The skeleton semi-trailer is specifically engineered for efficient container transport, featuring a high-tensile steel structure and world-class components like JOST landing gears and BPW/FUWA axles.

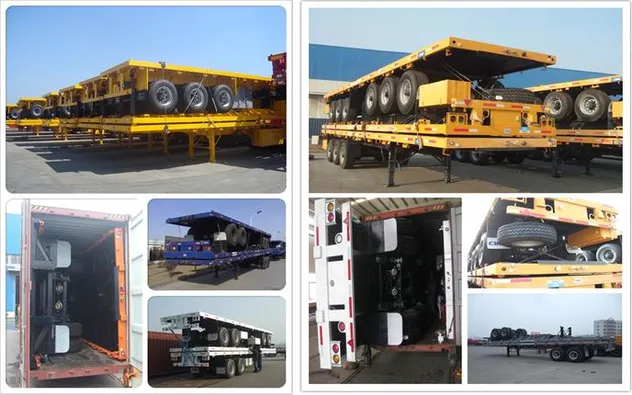

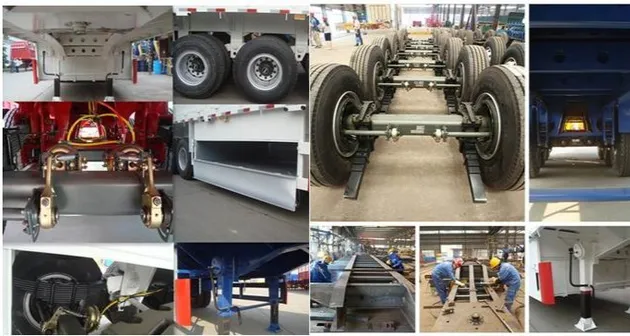

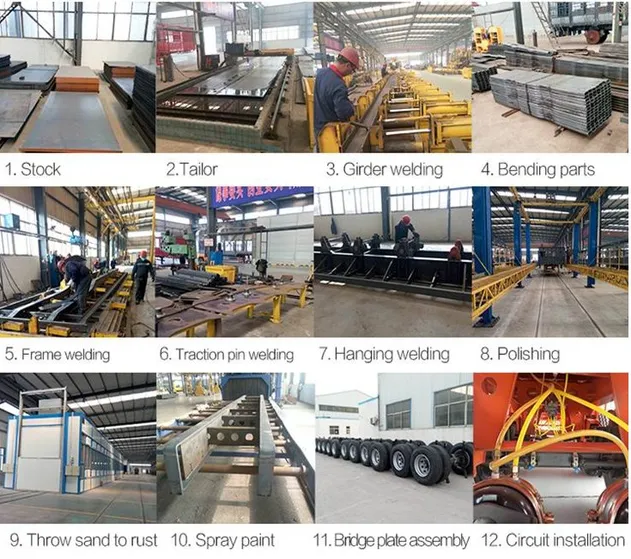

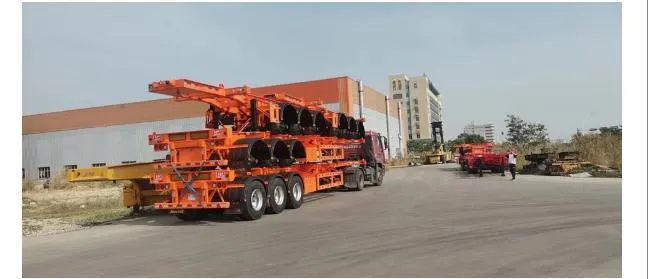

📷 More Photos

❓ Frequently Asked Questions

1. What types of containers can this skeleton trailer carry?

This trailer is designed to carry 1x20FT, 1x40FT, or 2x20FT containers. It is equipped with 12 container locks to accommodate various configurations including 40HQ.

2. What material is used for the main frame?

The main frame is constructed using high-tensile low carbon alloy Q345B steel, ensuring heavy-duty durability and a high payload capacity of up to 50 tons.

3. What braking system is installed on the trailer?

It features a dual-line brake system equipped with a WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chambers, and a 46L air tank for maximum safety.

4. Can the specifications be customized?

Yes, we can build and customize the trailers according to specific customer designs and operational requirements.

5. What is the surface treatment for the steel structure?

The trailer undergoes S.A.2.5 standard sandblasting, followed by two coats of anti-corrosion primer and one final coat of high-quality finish painting.

6. What brand components are used for the landing gear and axles?

We use world-renowned brands such as JOST for the landing gear and kingpins, and BPW or FUWA for the axles to ensure long-term reliability.
