3 Axle 40 Feet Flatbed Semi Trailer Heavy Truck 30t 40t

1 / 5

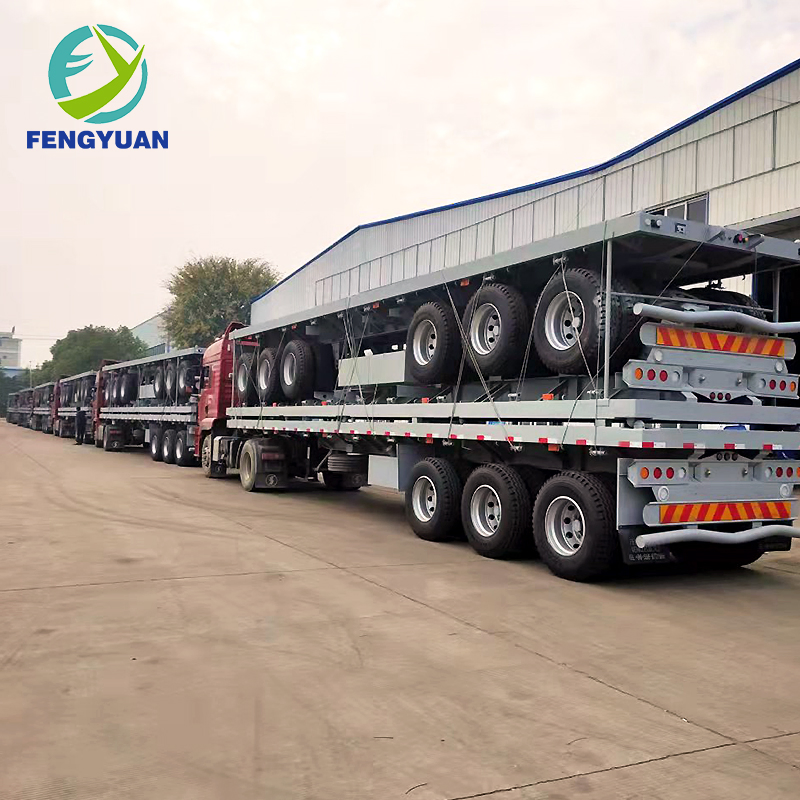

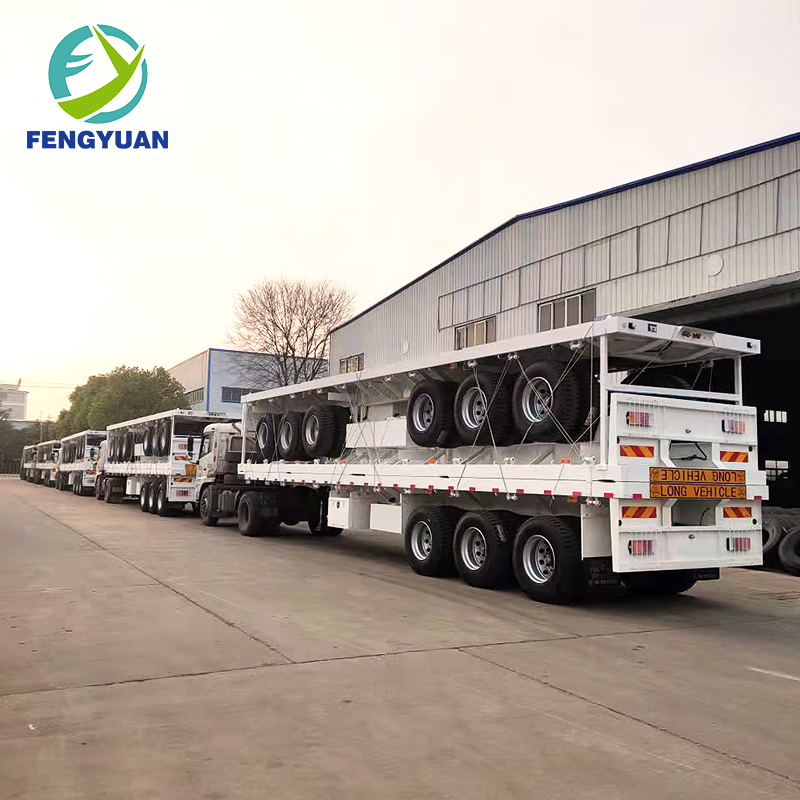

3 Axle 40 Feet Flatbed Semi Trailer Heavy Truck 30t 40t

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Overview - Basic Info

Model NO.

FYK9480TJZP

Type

Semi-Trailer

Load Capacity

50T

Certification

ISO9001, CCC

Tread

1820mm

Grade

Heavy Duty

Suspension

Trailing Arm Type

Shape

Flatbed

Axle Number

Tire Number

Material

Steel

Condition

New

Packaging & Delivery

Package Size

12500.00cm * 213.00cm * 272.00cm

Gross Weight

30000.000kg

Product Description

3 Axle 40 Feet Flatbed Semi Trailers

With more than 20 years of vehicle production experience, we provide a strict quality control system and experienced design to meet customization needs and lifelong accessories support.

Key Features:

★ Main Beam: 500mm height I beam; Top Flange 16mm; Middle 8mm; Bottom 16mm (Q345B Steel)
★ Side Frame: 180mm height channel steel; 3mm floor steel plate
★ Container Locks: 12 units ISO twist locks
★ Braking System: Dual-line air brake system with high-quality valves

40ft 3-Axle Air Suspension Flatbed Semi-Trailer	★ Three units of ZY-12T German style axle with ABS
	★ ZY brand 3-axles air suspension series, front axle lifting
	★ 13 units of Rim 9.0-22.5 with 12R22.5 tubeless tyres
	★ Heavy duty 19'' landing gear
	★ 2'' standard bolt-in kingpin
	★ Standard tool box included
	★ 1000 liter fuel tank
	★ 24V electrical system with LED lights

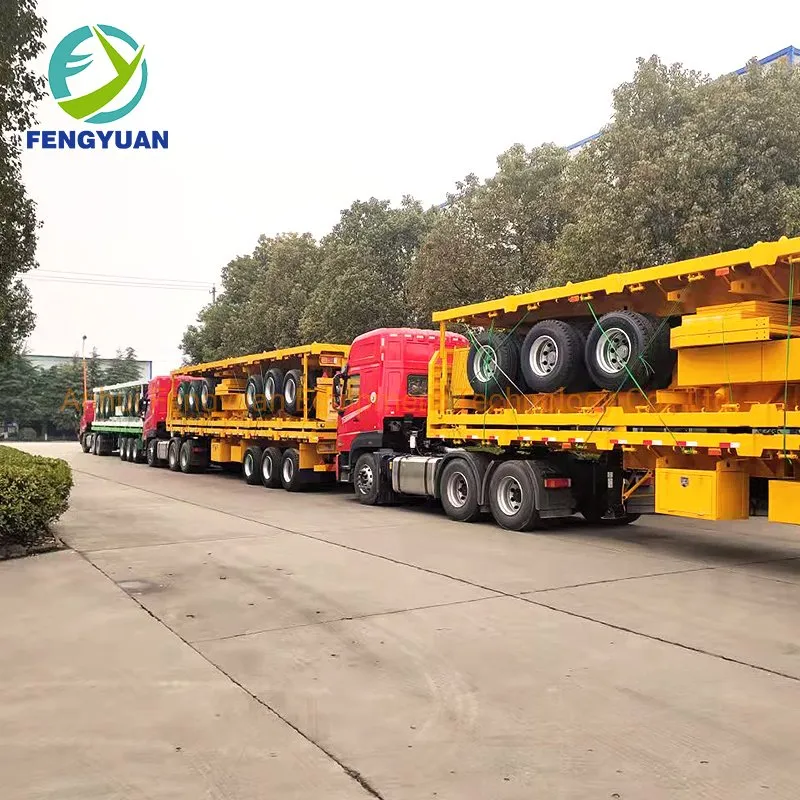

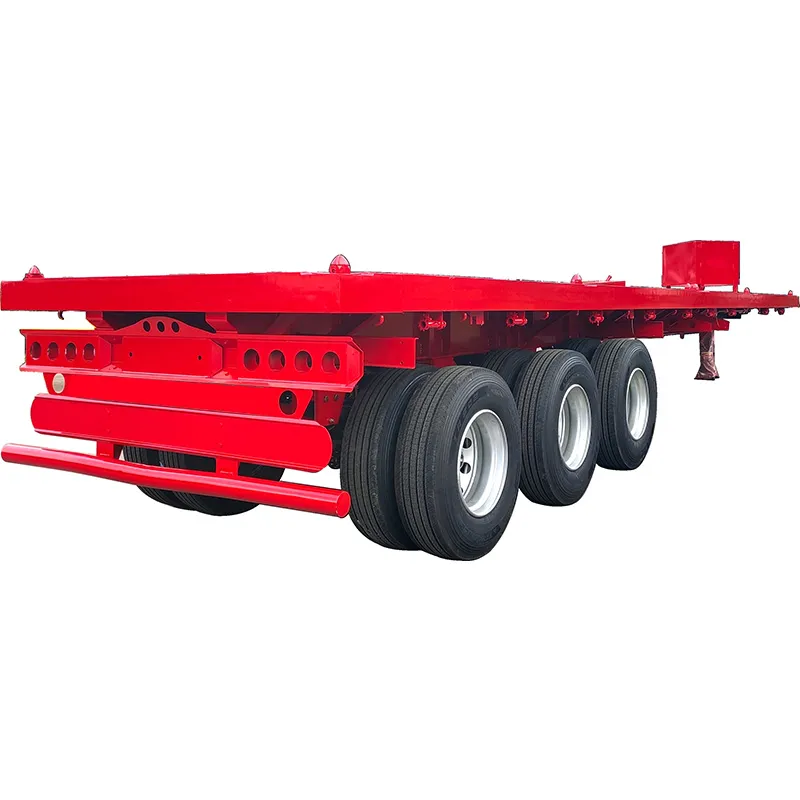

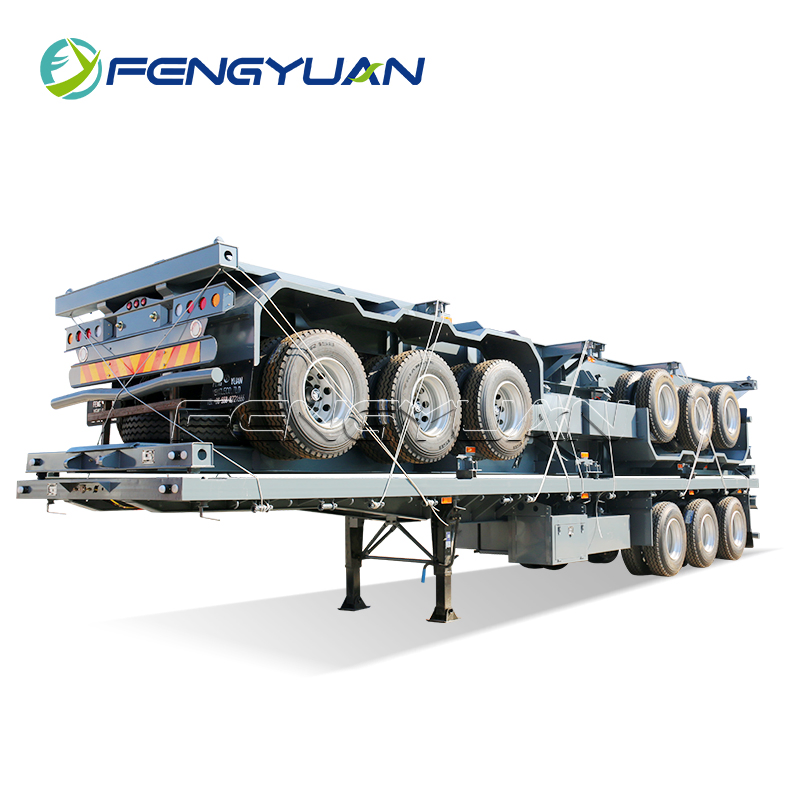

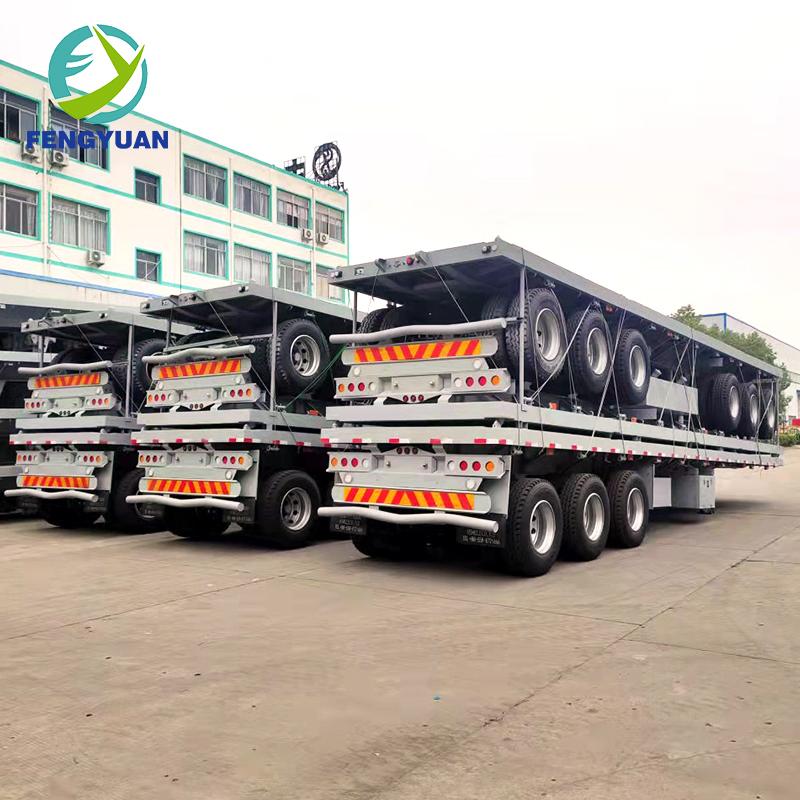

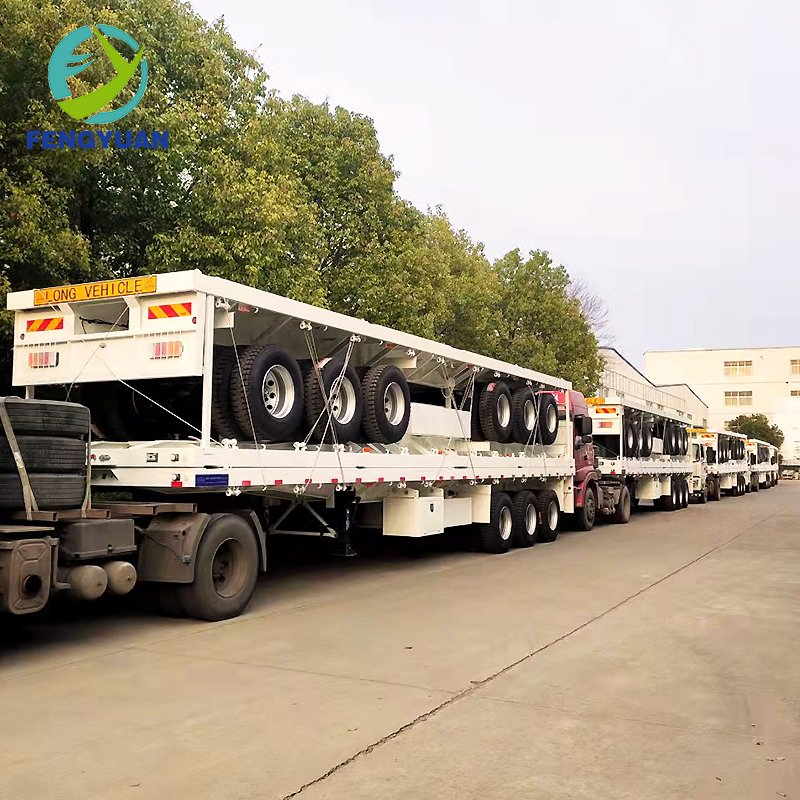

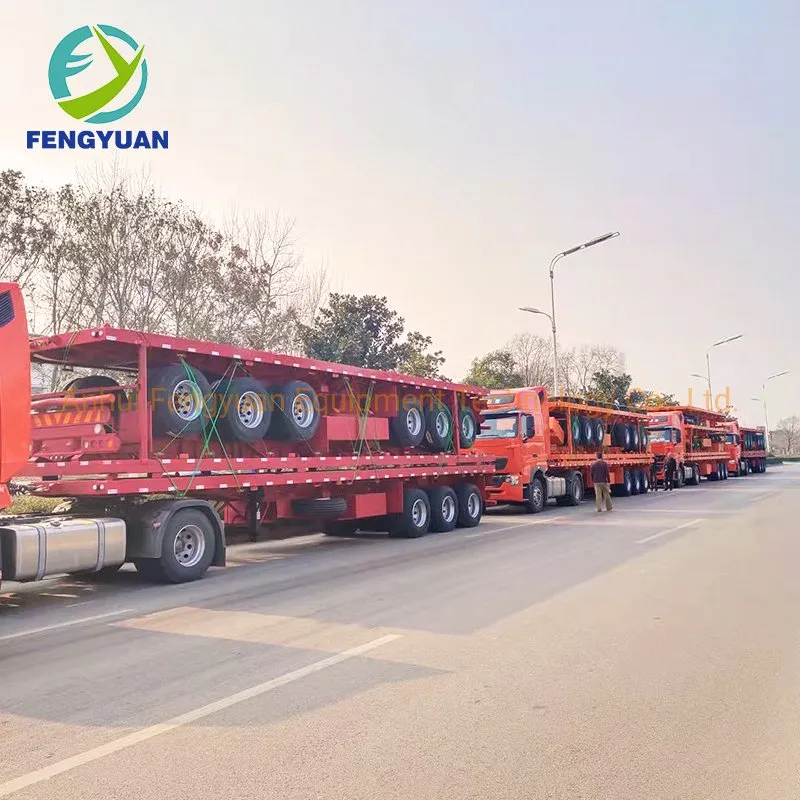

Detailed Photos

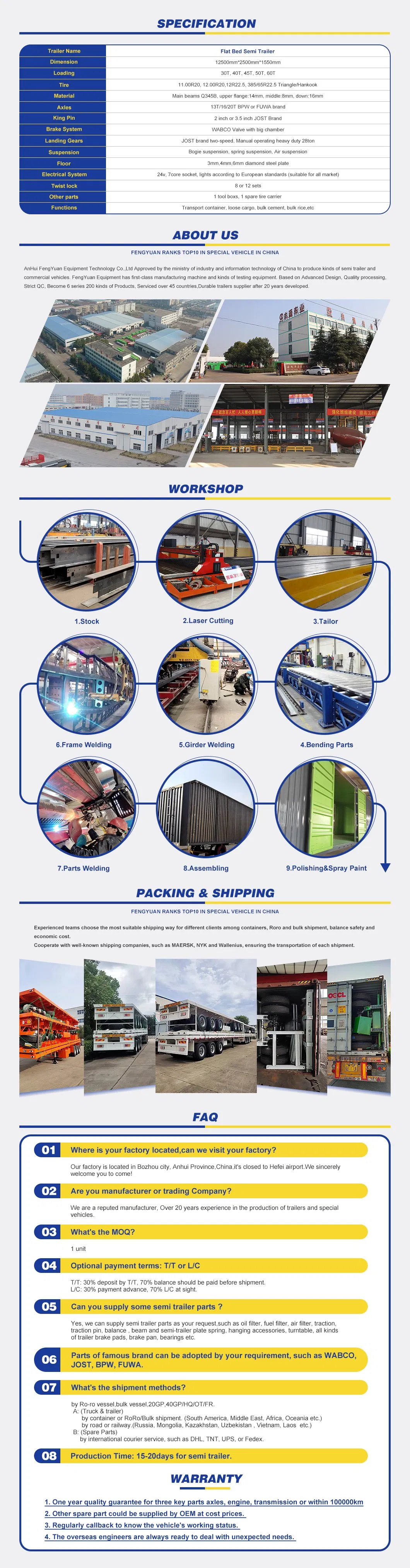

Product Parameters

Frequently Asked Questions

What is the loading capacity of this flatbed trailer?

The standard loading capacity is 50 Tons, designed for heavy-duty transport of 40ft containers or bulk cargo.

What materials are used in the construction?

The trailer is built using high-strength Q345B steel for the main I-beam and high-quality channel steel for the side frames.

Does it support customization?

Yes, the trailer is fully customizable to meet specific transport requirements, including dimensions, axle types, and suspension systems.

What kind of braking system is installed?

It features a dual-line air brake system equipped with high-quality valves, including four double and two single air chambers.

What is the production capacity and warranty?

We have a production capacity of 300 units per month and offer a 1-year guarantee on our products.

Are spare parts readily available?

Yes, we provide lifelong accessories support for all our specialized vehicles and trailers.
