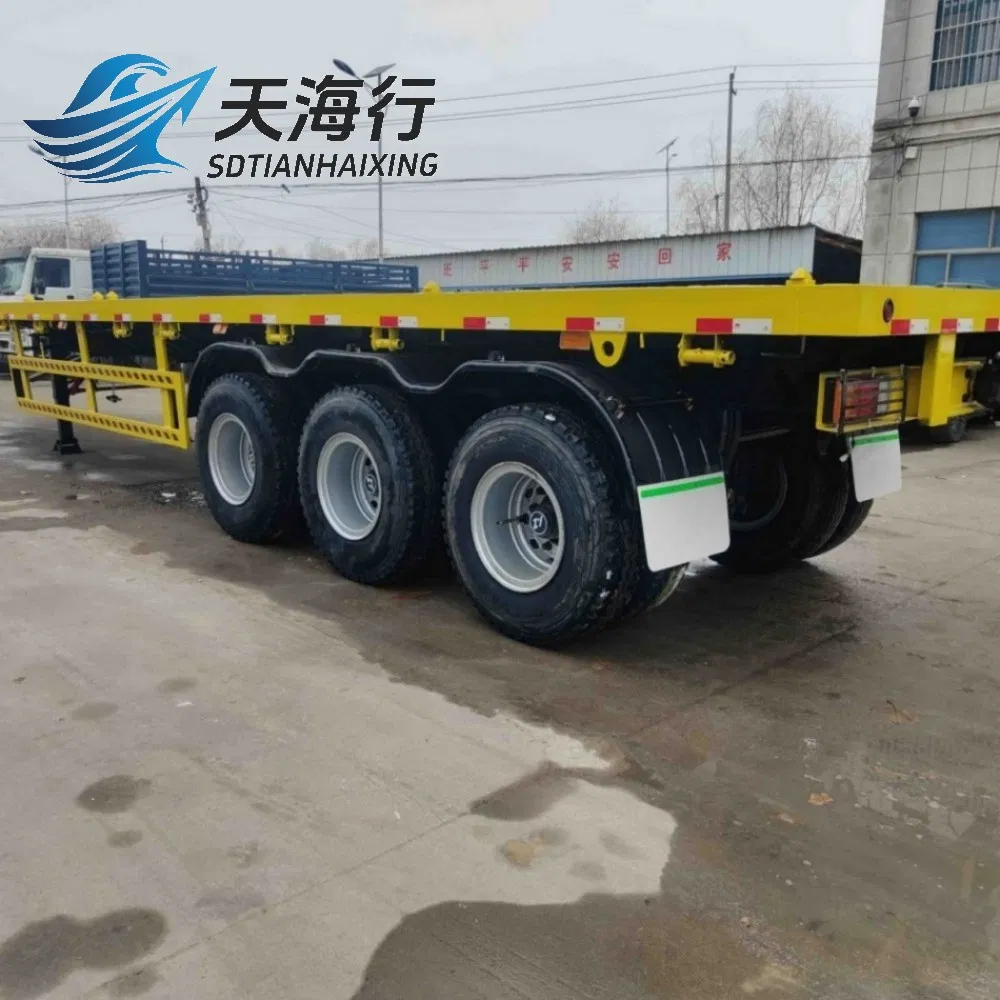

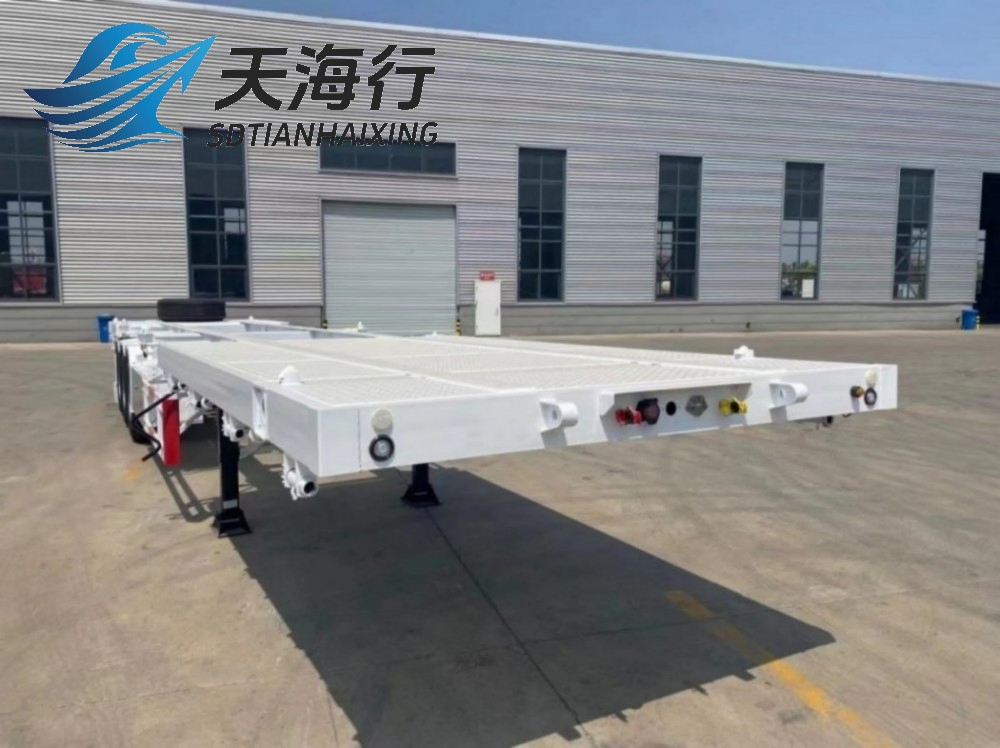

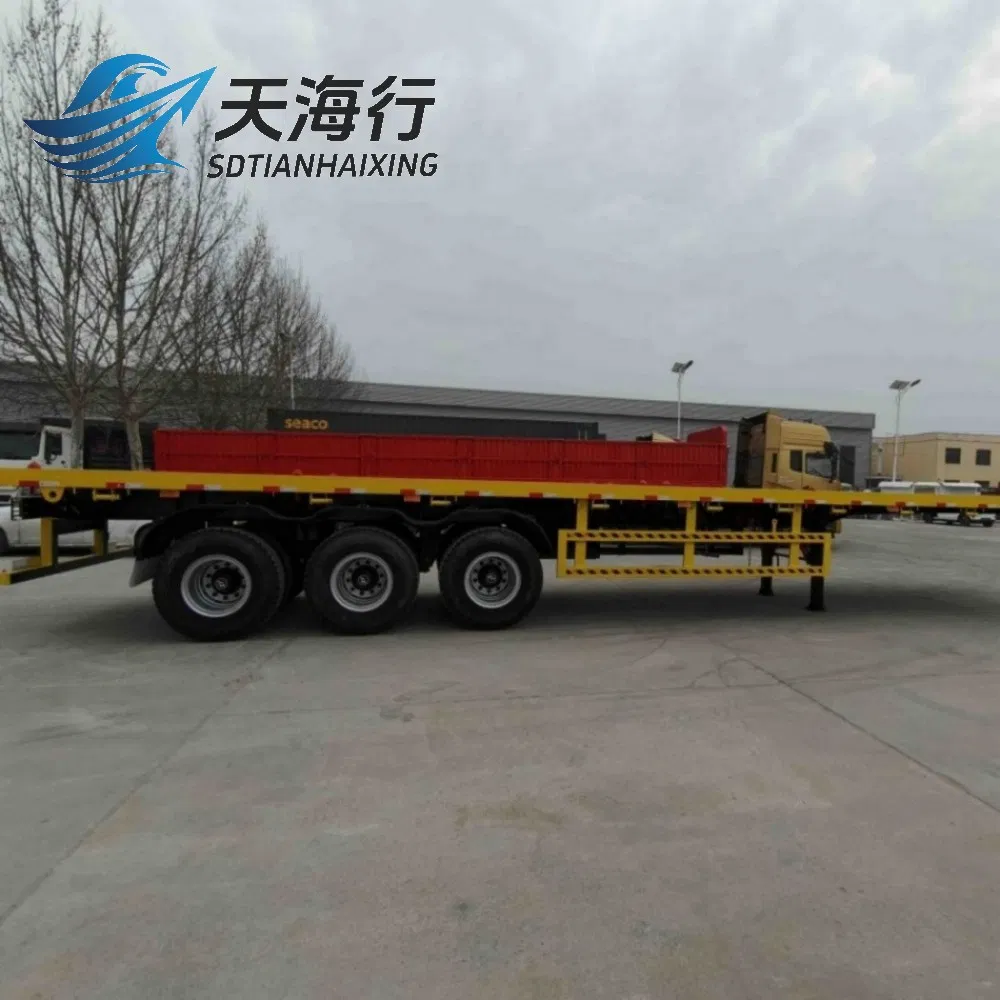

Skeleton semi-trailers belong to the terminal logistic equipment. Can be made for 20 feet and 40 feet or 45 feet or other special dimension container's transportation. From 2 axles to 4 axles or more, with capacity from 20t to 80t to fit all working conditions worldwide. Skeleton can also work together with the inland cargo box to be a dry logistics box semi-trailer, or with a freezer for cold chain logistics.
| Product Name | Skeleton Semi Trailer |

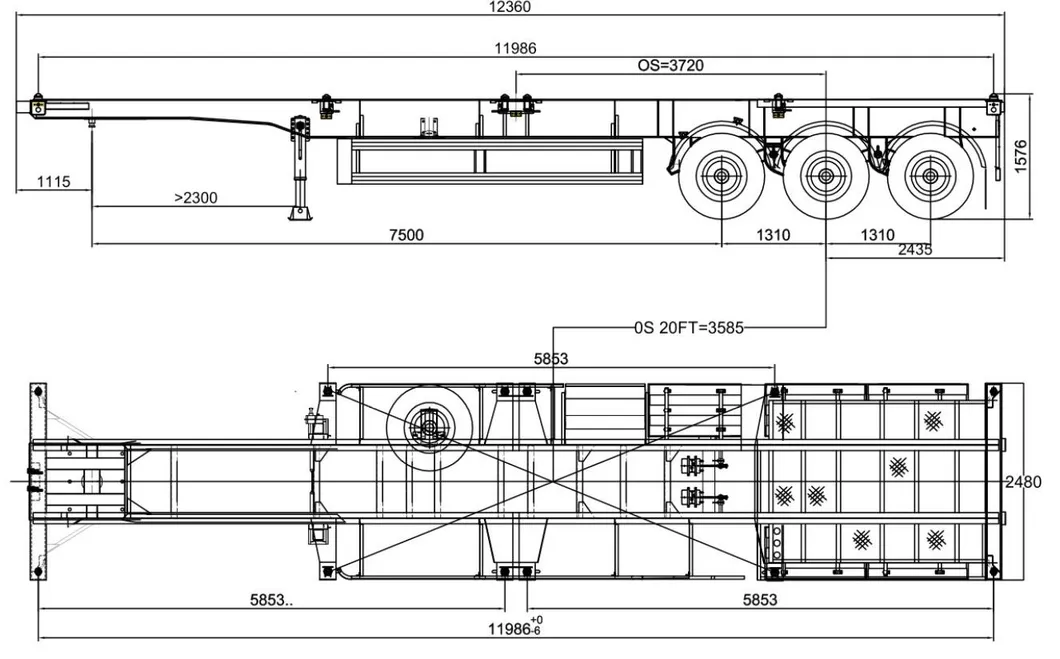

| Dimension (LxWxH) | Outside 12380×2480×1550mm (customizable) |
| Max Loading Capacity | 50000 kg (customizable) |
| Main Beam | Q345B / T700 Steel; Upper: 14mm, Middle: 8mm, Down: 16mm |
| Axles | 13/16/20 Ton. Optional brand: SAF/FUWA/BPW |
| Tire | 12.00R22.5 / 315 80R22.5 / 11.00R20 |
| Brake System | Dual line brake system, Air chamber T30/30 |
| Painting | Sand blasting; Anti-corrosion primer; Two coats of finish painting |
Wax painting treatment is applied to protect the vehicles from sea water, and the chassis is greased to avoid rusting during shipping. Delivery via container ship, ro-ro ship, or bulk ship.
