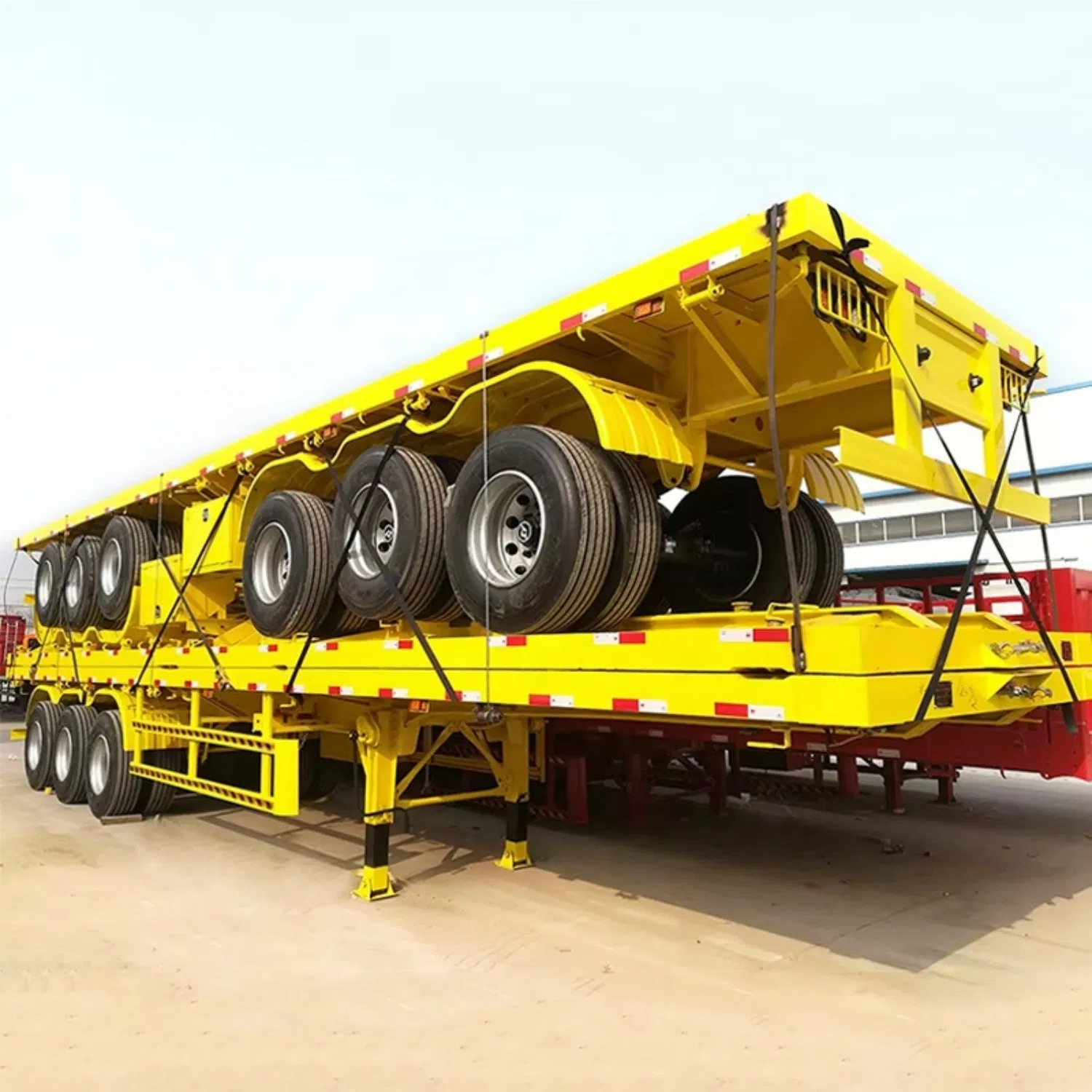

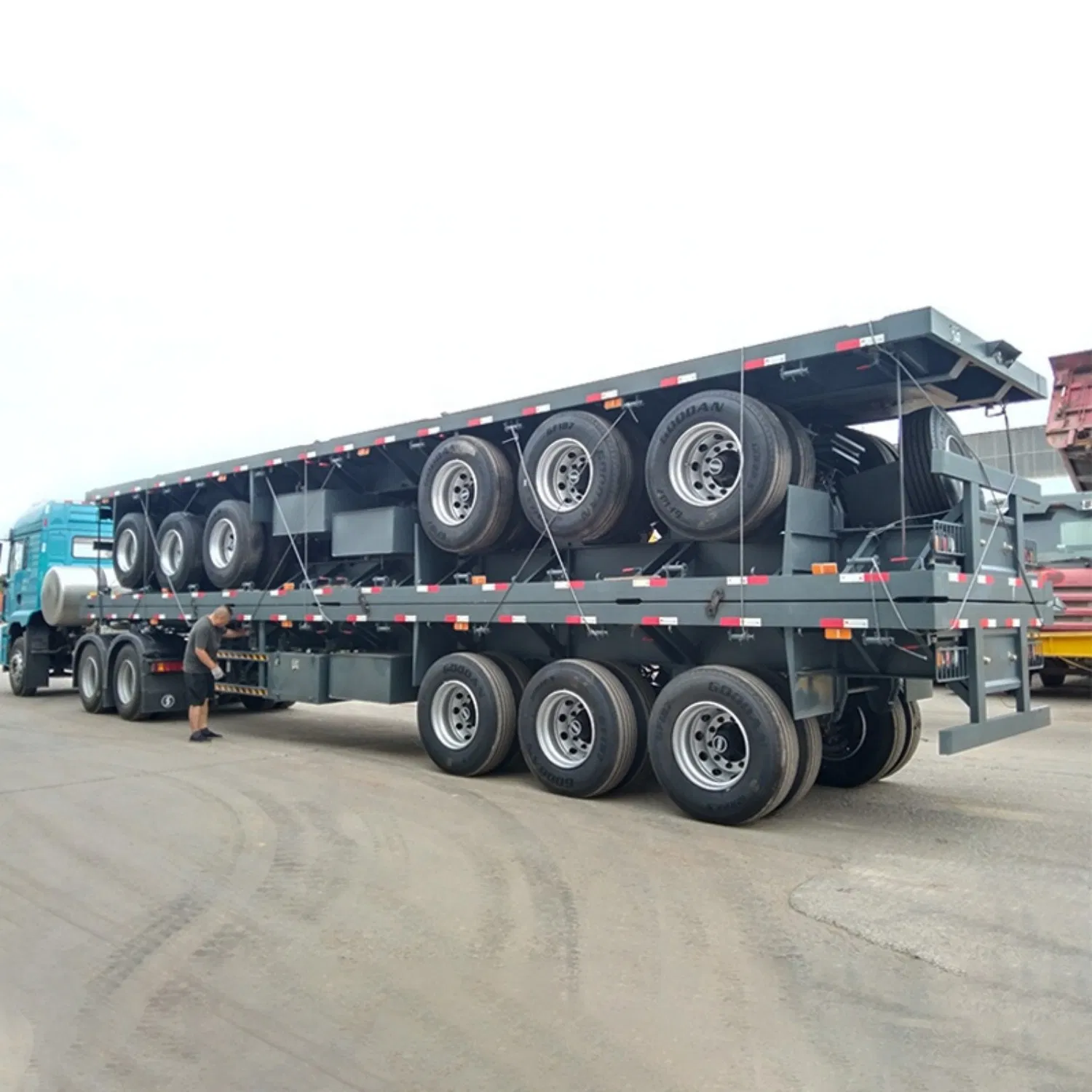

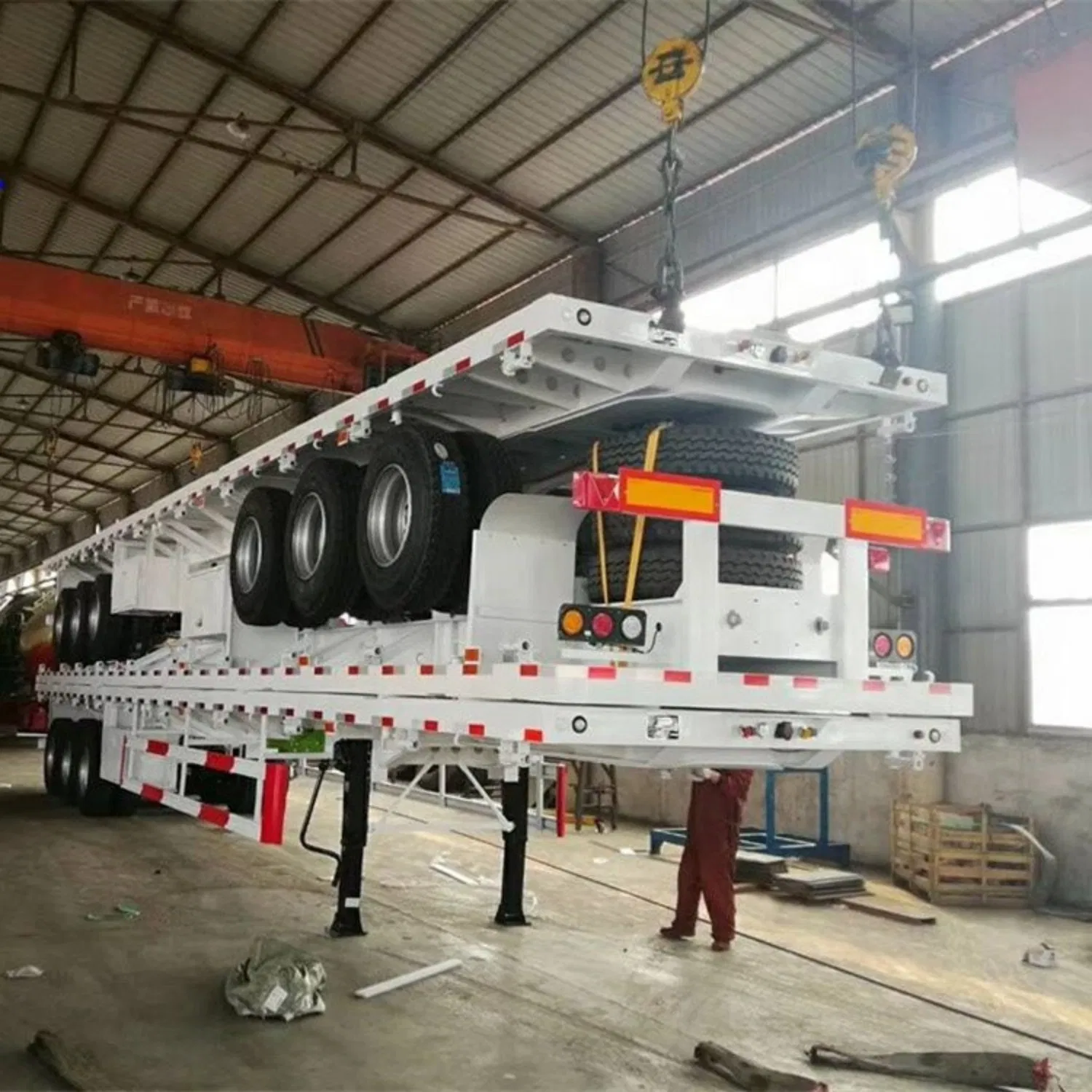

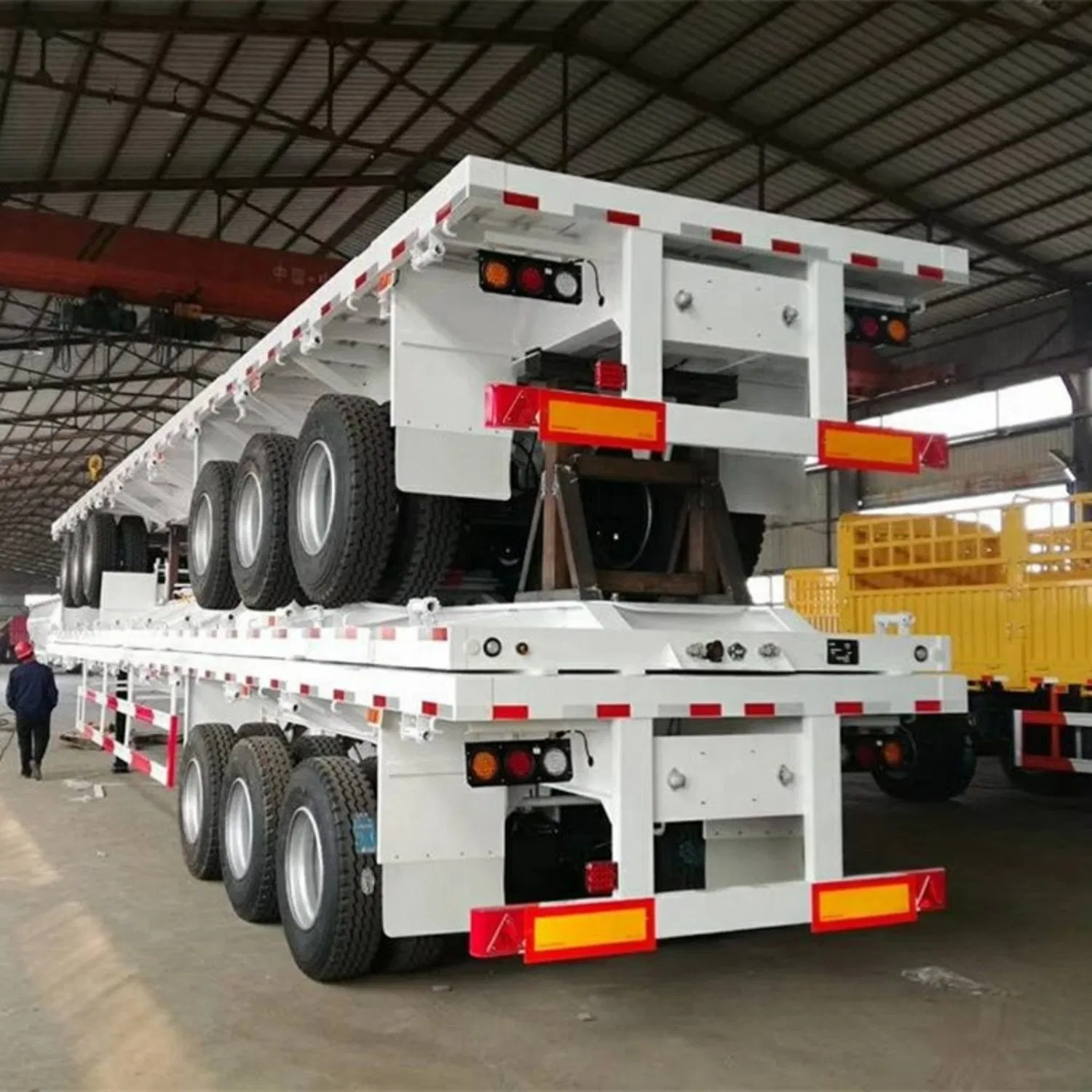

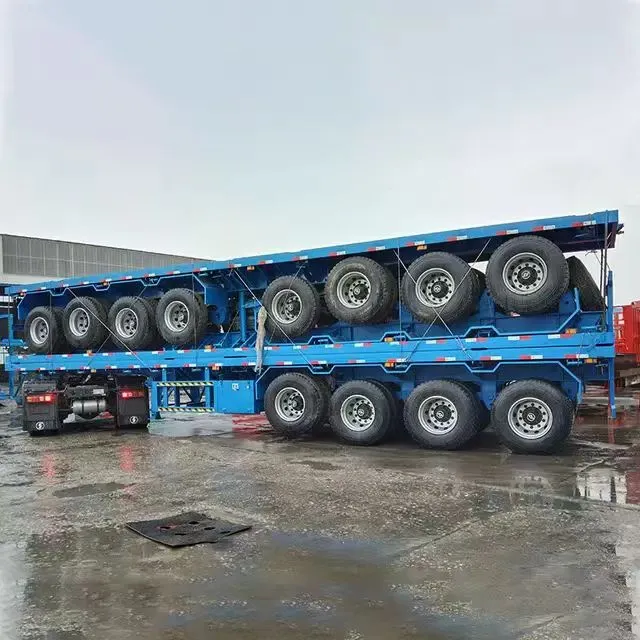

Features: Flatbed plate semi-trailer is a kind of semi-trailer without wall and canopy, with simple structure and strong adaptability.
Application scenario: It is mainly used to transport various goods with unlimited length, width and height, such as construction materials, steel products and heavy machinery.
Technological development: In recent years, with the application of light weight and strength materials, the loading capacity of plate semi trailer has been greatly improved.
| Detail Specification for flatbed semi trailer | |
|---|---|
| Items | Flat bed semi trailer |
| Tare Weight | 7.0 Tons |
| Payload | 50 Tons |
| Size | 12400x2610x1550mm |
| Main Beam | High strength Q345B steel, 520mm deep welded I-section |
| Floor | 3mm thickness checkered plate |
| Axles | 13/16/20 tons, 2/3/4/5/6 axle optional (BPW/FUWA) |
| King Pin | 2.00"(50#) or 3.5"(90#) JOST brand |
| Suspension | Heavy duty tri-axles suspension with equalizers |
| Landing Gear | 28 tons lifting capacity, two speed |
| Tire Specs | 12R22.5 Triangle brand or optional |
| Electrical System | 24v 7-pin ISO 1185 socket; LED lights |

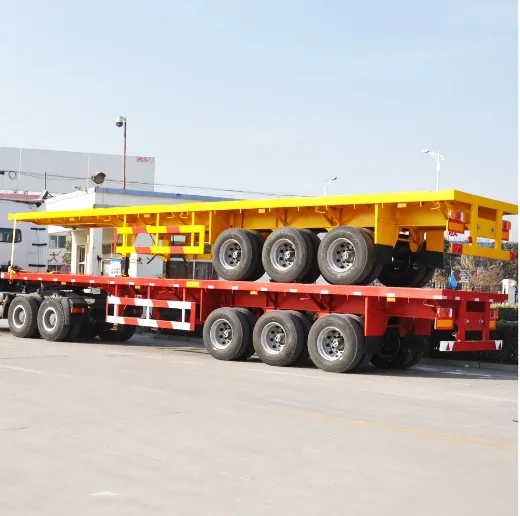

Specially designed anti-Tire abrasion suspension system prevents tire deflection after loading and avoids tires to the maximum extent worn out. It is easy to disassemble and maintain.
Landing Gear: Warranty period of more than 5 years. The gearbox uses low temperature premium chassis oil rated for -30°C to 120°C.
Twist Lock: ISO standard lock suitable for worldwide containers, with additional protection switches to avoid operational errors.
