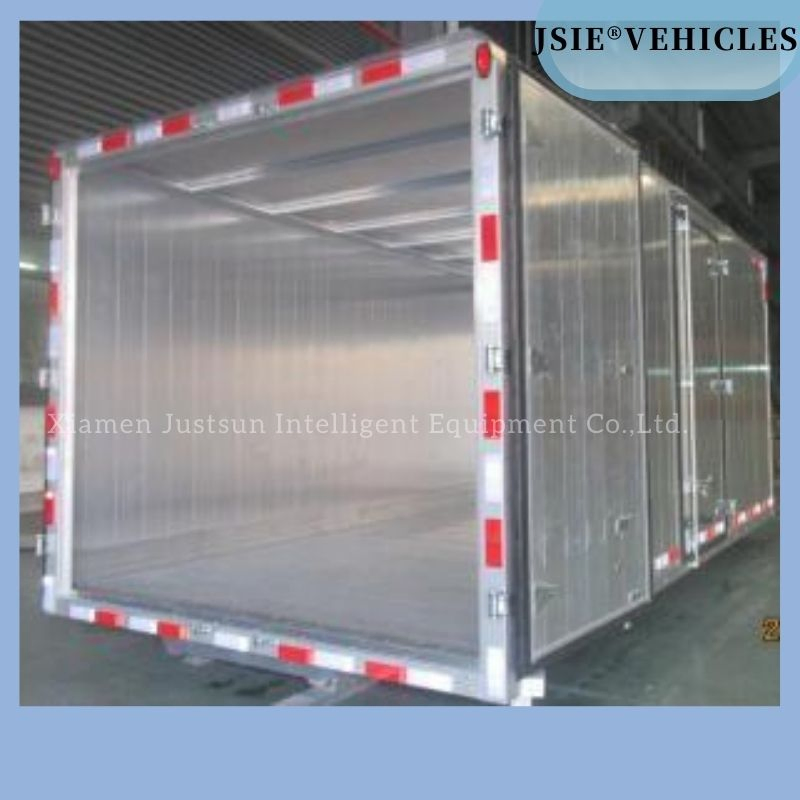

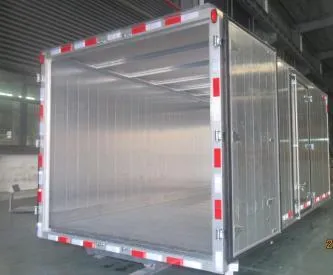

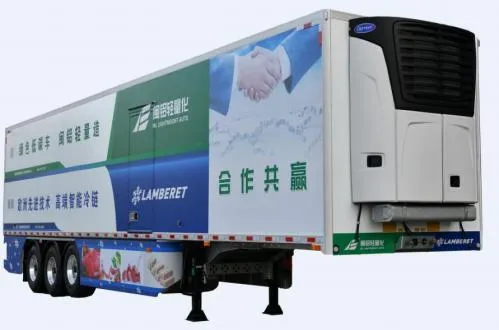

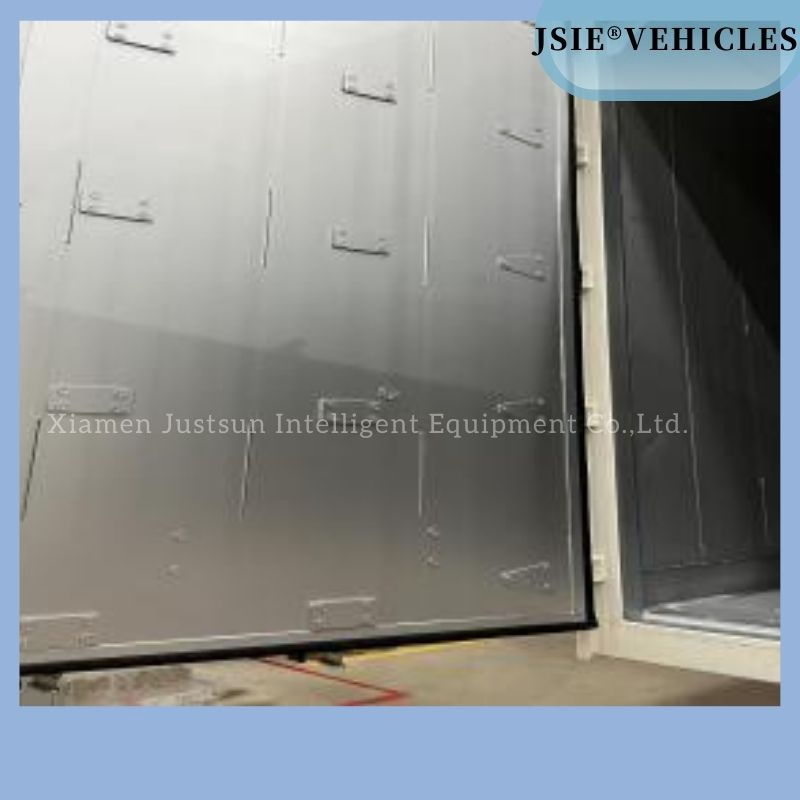

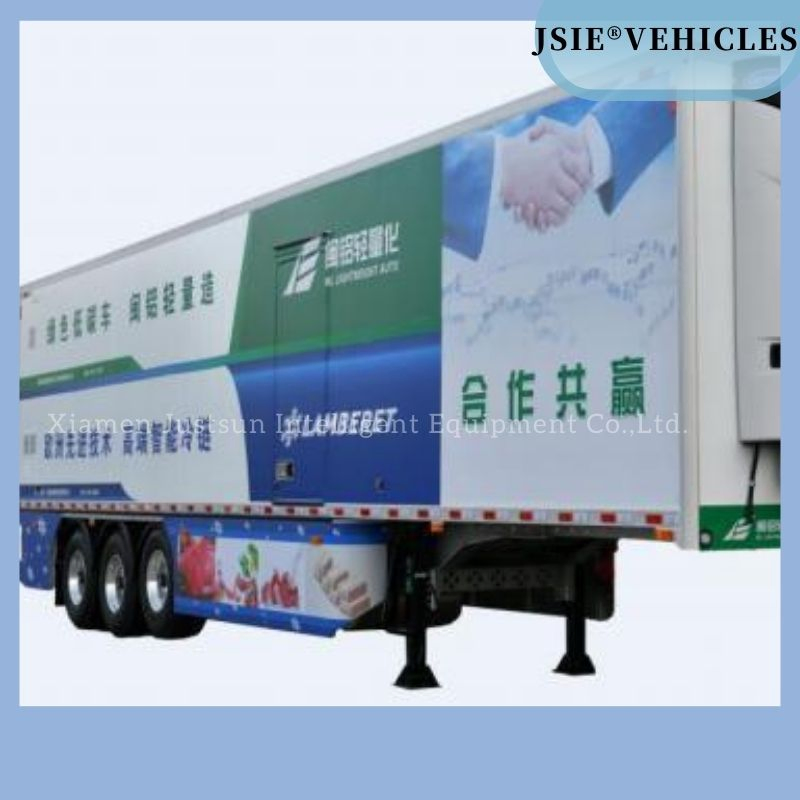

Cooperate with LAMBERET SAS for high-quality cold chain logistics equipment originated from European technology. Features ultra-thin high-performance box plates using the wet plate method for superior insulation. The frame adopts an aluminum alloy structure, ensuring no rust and a weight reduction of over 1000 kg.

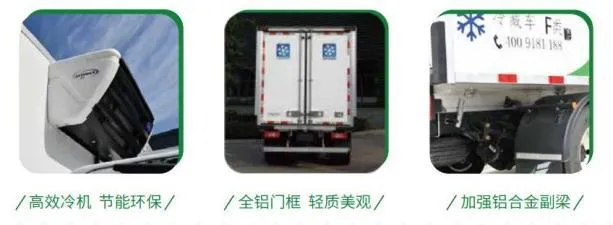

Equipped with the American Carrier refrigeration system, providing strong and fast cooling down to -20ºC. Features air suspension and high disc brake safety for stable transport.
High-strength aluminum alloy chassis with low wind resistance design for obvious energy saving and emission reduction. Lightweight air suspension and disc brakes ensure high configuration and excellent comfort.
| Refrigerated Semi-Trailer Parameter | |||
|---|---|---|---|
| Model | JSIE9400XLC3D1 | Dimensions (mm) | 13600×2600×4000 |
| Gross Wt. (kg) | 40000 | Curb Wt. (kg) | 7800 |
| Rated Load (kg) | 32200 | Wheelbase (mm) | 7000+1310+1310 |
| Tyre Size | 425/65R22.5 | Axle | BPW 10 Tons / 150 square axis |
| Main Config | EBS-WABCO, BPW Air Suspension, Michelin Tyres, Hongxin Rim, JOST Leg & Traction Pin | ||
| Cargo Size (mm) | 13430×2420×2520 | Volume (m³) | 82 |
